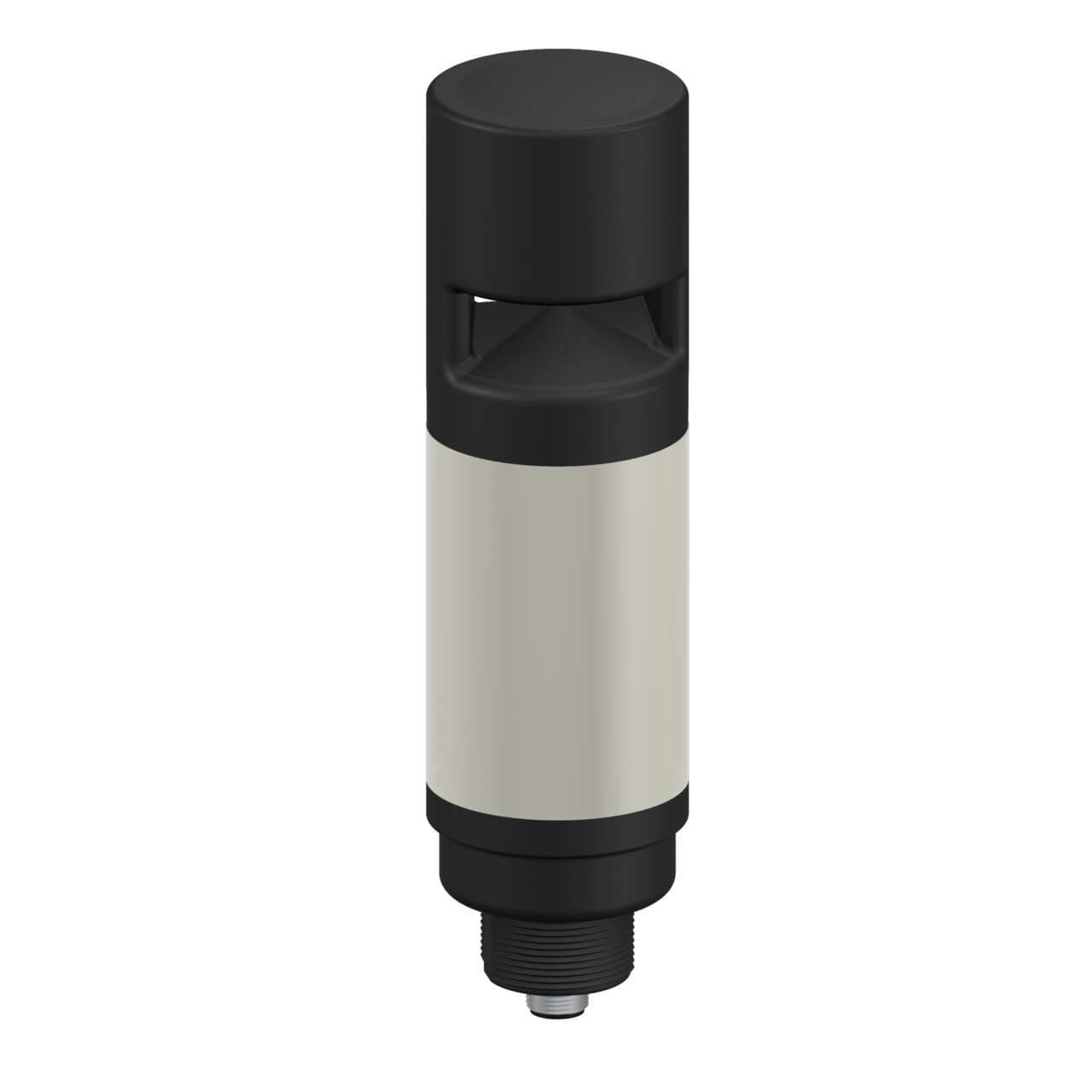

CL50RXXAOSPQ Banner Signal Towers

Product Details

• Weight
  158.7572 g
• Country Of Origin
  MX
• Indication
  Yes
• Connection
  Integral QD
• Max Audible Intensity (db at 1m)
  99
• Max Op. Temperature (°C)
  50
• Power
  DC
• Color Technology
  Standard LED
• Color 1 - Wavelength/Color Temp/Coordinates
  625 nm
• Primary Window Material
  Polycarbonate Diffused
• Feature: Audible
  Yes
• IO Link
  No
• Power Source
  DC
• Color Option 1
  Red
• Max Current Color (mA)
  100
• NEMA Type and UL Type Rating
  NEMA and UL 13
• Modbus RTU
  No
• Color Input Control
  Individual (One wire/color, same number of colors as input wires)
• Animation Option 1
  Solid On
• Input Type
  PNP
Max Op. Relative Humidity Non-Condensing (%)
95% @ 50°C
Wireless
No
Primary Housing Material
ABS/Polycarbonate
Audible Operating Frequency (kHz)
2.1
Audible Alarm Type
Continuous
Feature: Chemical Resistant
No
Housing Style
Base Mount - Tower
Product Size (mm)
50
Lumens Color 1
38.0
Environmental Rating
IP67
Feature: Quick Disconnect
Yes
Number of Colors / Segments
1
Supply Voltage
18-30 V dc
Max Current - Audible Alarm (mA)
45
Primary Housing Color
Black
Cable Length (m)
2
Quick Disconnect Type
M12 (Euro)
Physical Dimensions (LxWxH or DxH mm)
50.0 x 182.2
Feature: Hazardous Area
No
Mounting Thread
M30 x 1.5
Max Input Response Time (ms)
10
Number of Input Pins/Conductors
5
Min Op. Temperature (°C)
-20
Pro-Editor Compatible (Discrete)
No
