D10AFPQ Banner Sensor Accessories

D10AFPQ on Powermatic Associates
Banner
  • D10AFPQ
  • D10AFPQ

Part#:D10AFPQ

Alt. Part#:72809

Manufacturer:Banner

Category:Sensor Accessories

Product Lifecycle:Active

Product description

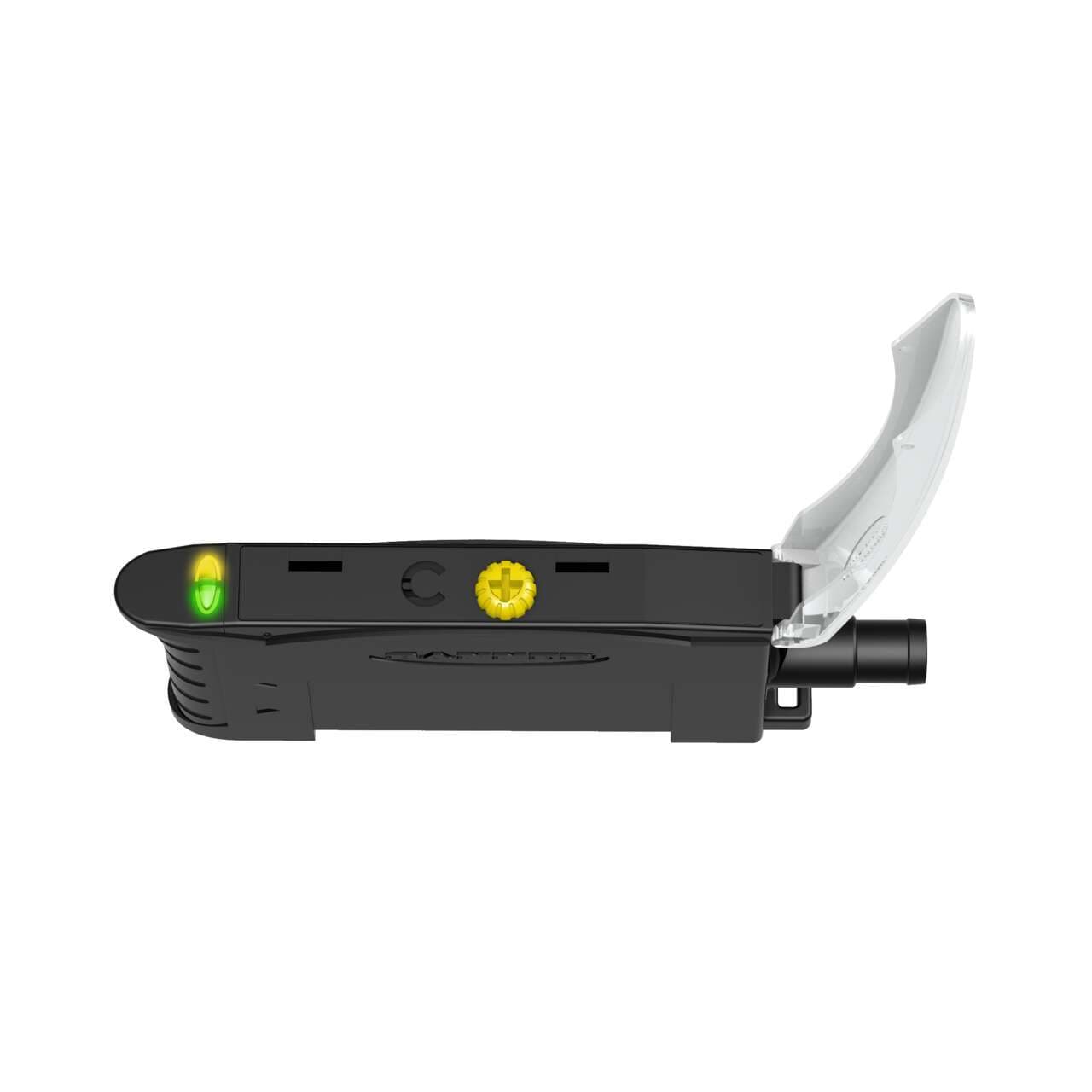

D10 AFPQ Sensor for use with Plastic Fiber Optics; Range: Depends on Fiber; Input 10-30 V dc; Output: Bipolar 4-pin M8 QD

Product Details

  • Weight
    54.43104 g
  • Country Of Origin
    CN
  • Primary Housing Material
    Thermoplastic
  • Output Type (Specific)
    Single Discrete
  • Intrinsically Safe
    No
  • Feature: Audible
    No
  • Repeatability (µs)
    95
  • Input/Output
    Discrete
  • Crosstalk Avoidance
    Yes
  • Feature: Hazardous Area
    No
  • IP Rating
    IP50
  • Adjustments
    Potentiometer
  • Fiber Type
    Plastic and Glass
  • Housing Style
    DIN Rail
  • Special Feature: Remote Teach
    No
  • Feature: Timing (Hold/Delay)
    Yes
  • Output
    Bipolar (NPN & PNP)
  • Min Op. Temperature (°C)
    -20
  • Indicator Display Type
    Indicator LEDs
  • Quick Disconnect Type
    M8 (Pico)
  • Max Op. Temperature (°C)
    55
  • Minimum response time (ms)
    .5
  • Color LED - Amplifiers
    Red
  • Max Op. Relative Humidity (%)
    90% @ 55°C
  • Special Feature: Bussable Power
    No
  • Connection
    Integral QD
  • NEMA Rating
    NEMA 1
  • Delay at Power-up (ms)
    100
  • IO Link
    No
  • Number of Pins
    4
  • Power
    DC
  • Power Supply/Supply Voltage
    10-30 V dc
  • Housing Material
    Thermoplastic

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of D10AFPQ on Powermatic Associates is $128.00. Order now.

About the product

Banner Engineering D10AFPQ is an amplifier designed for sensor applications, featuring a DIN rail mount for easy installation. It has a net width of 11 mm and is constructed with a thermoplastic housing and a polycarbonate (PC) cover. This part operates within an ambient air temperature range of -20 to +55 °C and offers a degree of protection rated at IP50 NEMA 1. It emits a visible red light and has a response time of 500ms / 0.5 s. The D10AFPQ includes 1 x digital output (NPN/PNP transistor) and is shaped rectangularly. It is part of the D10 series and is characterized by its high-performance fiber optic sensor amplifier function, with potentiometer adjustment for precise control. The connection is facilitated by a pre-equipped 4-pin Pico-style M8 connector, and it requires a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.). The net dimensions are 11 mm in width, 36 mm in depth, and 69 mm in height.

D10AFPQ Related Documents

118431.pdf
