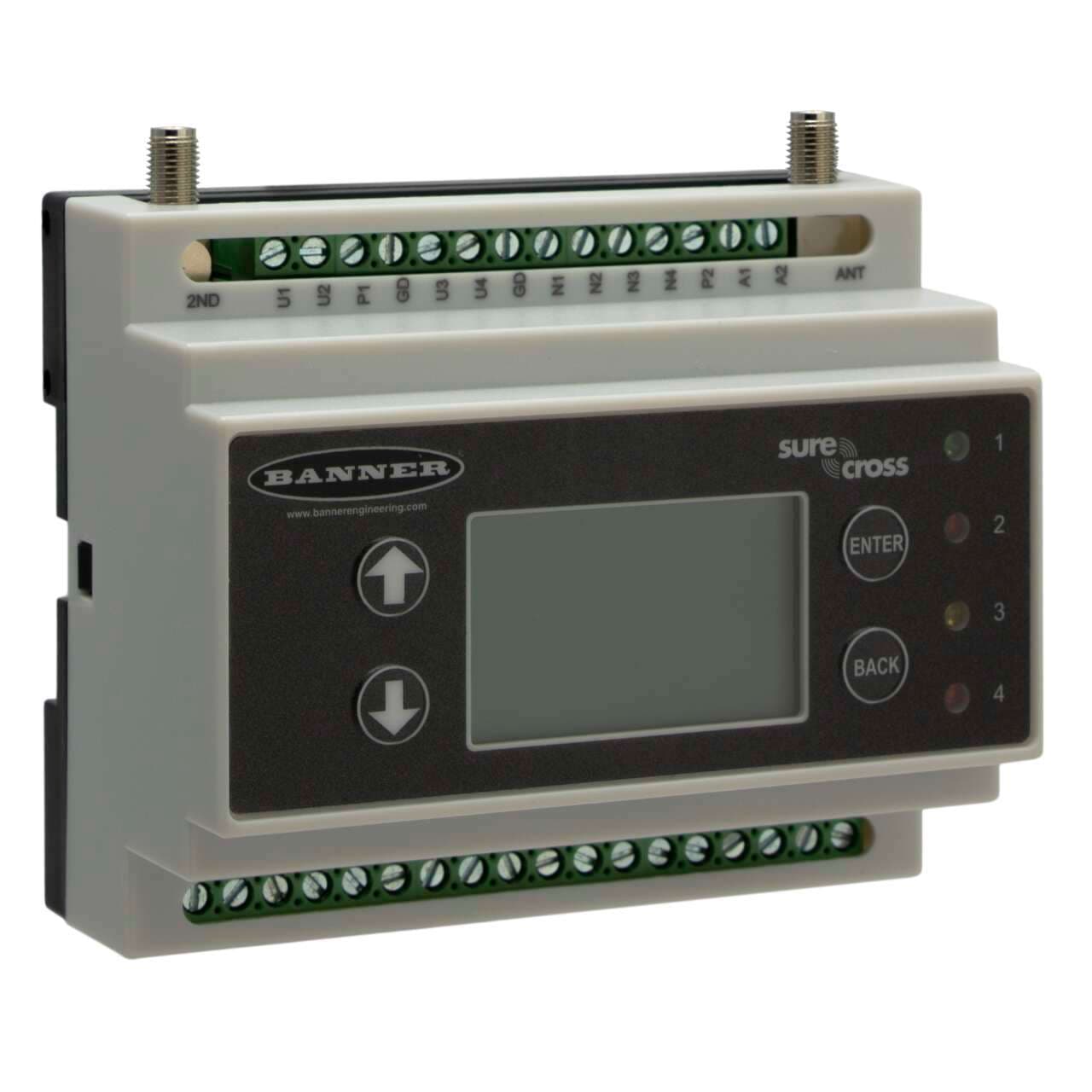

DXM100-B1R3 Banner I/O Modules
Part#:DXM100-B1R3
Alt. Part#:800137
Manufacturer:Banner
Category:I/O Modules
Product Lifecycle:Active
Product description
DXM100 Controller; DX80 Performance Gateway 2.4 GHz 65 mW; Inputs: 4 Universal; Outputs: 4 NMOS Discrete, 2 Selectable Analog, 2 Switched Power, 1 Courtesy Power; SAM4 processor, LCD Display; RS485, Ethernet, USB, CAN, RS232, Solar/Battery Controller
Product Details
- Weight 498.9512 g
- Country Of Origin US
- RS-485 Yes
- Power DC
- Output Details 4 NMOS Discrete, 2 Selectable Analog
- RS-232 Yes
- Device Type Wireless Controller with Performance Gateway
- Relative Humidity 95%
- Modbus RTU Yes
- Wireless Radio Frequency 2.4 GHz
- Input Details 4 Universal Inputs
- Point-to-Multipoint Topology Yes
- Application: Indicator Light Yes
- Housing Style External Terminals
- Min Temp Operating Conditions -20
- Tree Topology No
- On-Board Memory (MB) 2
- Wireless Yes
- Input/Output Analog & Discrete
- Environmental Rating (IP) IP20
- Discrete Outputs Yes
- Power Supply 12-30 V dc
- EtherNet/IP Yes
- Analog Outputs Yes
- Max Operating Temperature ( °C) 80
- Star Topology Yes
- PROFINET No
- Discrete Inputs Yes
- Analog Inputs Yes
- LCD Display Yes
- Max Temp Operating Conditions 60
- Min Operating Temperature ( °C) -20
- Point-to-Point Topology Yes
- Dimension Length (mm) 100
- Feature: Hazardous Area No
- Modbus/TCP Yes
- 1-wire Serial Interface No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DXM100-B1R3 on Powermatic Associates is $999.00. Order now.
About the product
Banner Engineering DXM100-B1R3 is a remote I/O controller designed for DIN rail mounting and features a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers two analog outputs (4-20mA / 0-10Vdc), alongside four digital outputs (12Vdc-30Vdc; NMOS; 1A). This controller is equipped with four digital inputs (12-30Vdc; Sink/Source/Counter) that can also function as 4AI (4-20mA / 0-10Vdc / 10kΩ thermistor). With an IP20 degree of protection and dimensions of H61.1mm x W105.3mm x D94.7mm, it includes a 100MHz processing speed for efficient data aggregation of sensors and wireless networks, utilizing FHSS (Frequency Hopping Spread Spectrum) technology and a SAM4 processor CAN. Connection options include an RJ45 connector for Ethernet and an RP-SMA connector, supported by a supply voltage range of 12-30Vdc (12Vdc-24Vdc nom.). The DXM100-B1R3 supports RS-485, RS-232, Modbus RTU, Modbus TCP, and Ethernet/IP communication protocols, with a memory capacity of 2MB (on-board) and an expandable 8GB via SD card. It operates on a 2.4GHz ISM band frequency with a 65mW radio (PE5 performance radio; worldwide), capable of a maximum 3.2km transmission distance at nominal emission power.
