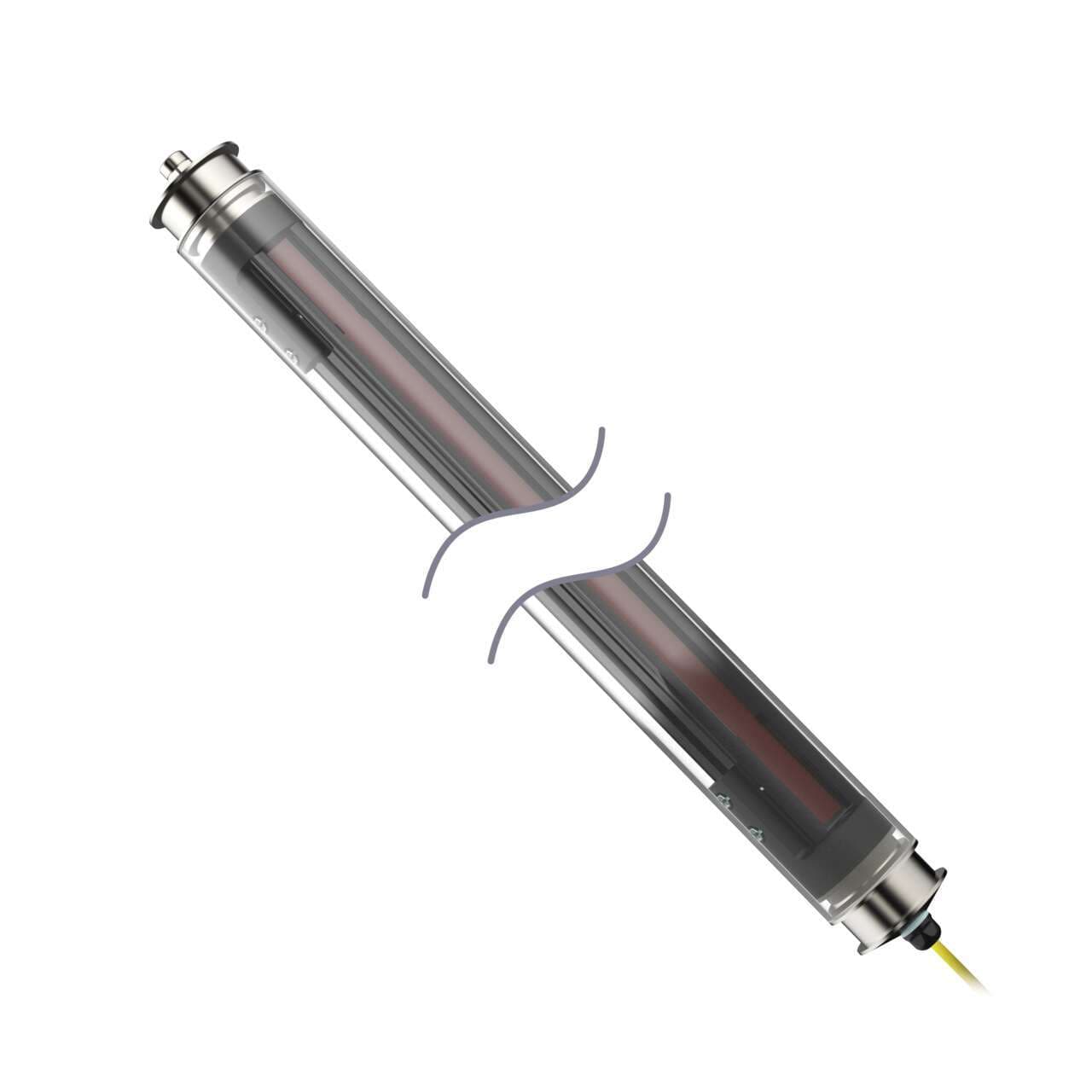

EZLSA-HTE-R23-770-F Banner Safety Light Curtains
Part#:EZLSA-HTE-R23-770-F
Alt. Part#:803176
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
EZ-SCREEN LS; Remote Fixed Blanking; 770 mm; Resolution: 23 mm; Range: 8.4 m (27 ft); Defined Area: 770 mm (30.3 in); Housing: Black; LS Custom Connector to 8-wire Flying Leads; in Hygienic Tubular Enclosure
Product Details
- Weight 6622.4432 g
- Country Of Origin US
- IP Rating IP65; IP67; IP69
- Overall Length (mm) 932
- System Type Receiver
- Housing Material FDA-grade Polycarbonate, Stainless Steel
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Number of Pins (Receiver/Emitter) 8
- SIL Rating SIL3; CL3
- Fault Output Yes
- Feature: ESD Safe No
- External Monitoring Device 1 Channel
- Operating Voltage 24 V dc +/- 15%
- Shock 10g at 16ms (6000 cycles)
- Test Input No
- Housing Finish Yellow Polyester
- Primary Housing Material FDA Polycarbonate
- Response Time 14.2
- Auxiliary Output No
- Feature: Washdown Rated Yes
- Safety Level Type 4
- Operating Distance (m) 0.1 - 8.4
- Electrical Safety Class III
- OSSD Rating 24 V dc at 0.5 A each
- Dimensions WxD (mm) Φ 63.5
- Operating Temperature -20 to +55 deg. C; RH 95%
- Scan Code Selectable
- Feature: End-to-End Sensing No
- Connector Type 7.6 m Cable with Flying Leads
- PL Rating Ple
- Short Protection Yes
- Trip/Latch Output Trip
- Fixed Blanking Yes
- Resolution (mm) 23
- Vibration 10-55 Hz at 0.35 mm
- Feature: Integral Muting No
- Recovery Time 59 / 199
- Supply Current 110 mA Typical
- Defined Area Height (mm) 770
- Reduced Resolution No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EZLSA-HTE-R23-770-F on Powermatic Associates is $2,263.00. Order now.
About the product
Banner Engineering EZLSA-HTE-R23-770-F is a safety light curtain designed for hand detection with a resolution of 23mm and a protective height of 770mm. It features a FDA-approved hygienic polycarbonate (PC) housing, PVC cable, and stainless steel end cap, making it suitable for environments requiring stringent hygiene standards. This part operates within an ambient air temperature range of -20 to +55 °C and offers a degree of protection rated at IP65, IP67, and IP69K, ensuring durability against dust, water, and high-pressure washdowns. It emits infrared (IR) light and has a response time of 14.2ms. The device includes 2 digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) for connectivity. It is capable of sensing distances from 10cm to 8.4m and is part of the LS series type 4 safety light curtain in an IP69K hygienic housing. The connection is facilitated by a pre-wired 50ft cable terminated with bare end flying leads, and it requires a 24Vdc supply voltage. The cable diameter is 63.5mm, and the housing is colored yellow. The beam spacing/pitch is 23mm, with a net height of 932 mm.
