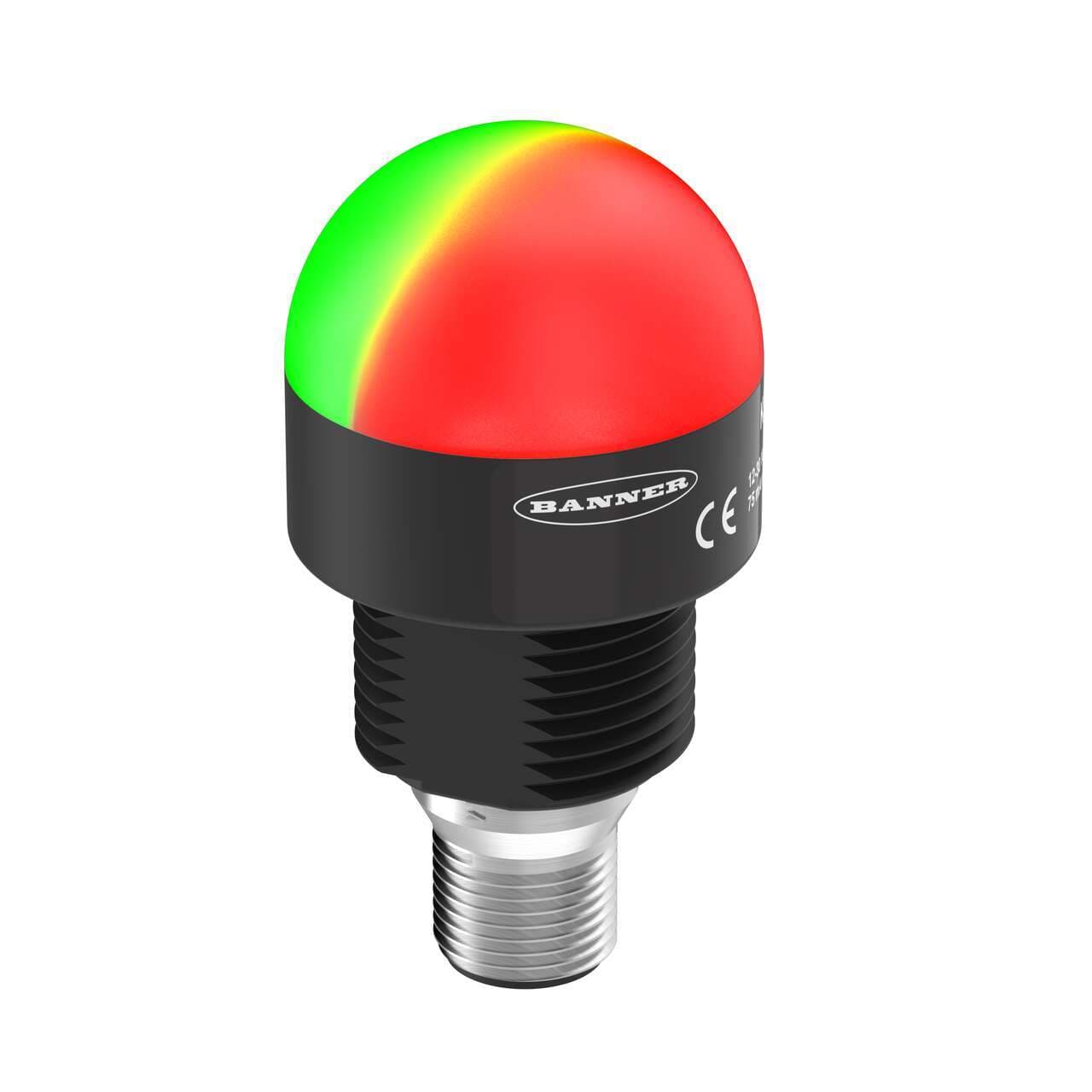

K30PTSQ Banner Pick-to-Light Sensors
Part#:K30PTSQ
Alt. Part#:809277
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K30 Pro Touch with PICK-IQ Series: RGB Touch Sensor; Voltage: 10-30 V dc; Housing: Polycarbonate; Environ. Rating: IP67 IP69K; Colors: Multicolor; 4-pin M12 Integral QD
Product Details
- Weight 71.667536 g
- Country Of Origin MX
- Power Source DC
- Product Size (mm) 30
- Pick-to-Light Function Programmable
- Supply Voltage 10-30 V dc
- Primary Housing Color Black
- Feature: Chemical Resistant No
- Actuation Yes
- Max Current Color (mA) 65
- Max Output Response Time (ms) 300
- Activation Function Capacitive Touch
- Dimming Option Programmable
- Min Op. Temperature (°C) -40
- Multi-Color Device Simultaneous Colors On
- Color Input Control Communication Protocol
- Quick Disconnect Type M12 (Euro)
- Max Input Response Time (ms) 5
- Number of Colors / Segments Programmable
- Animation Option 1 Modbus Controlled
- Operation Programmable
- Button Operation Programmable
- Housing Style Base Mount - Dome Window
- Color Option 1 RGB
- Mounting Thread M22 x 1.5
- Connection Integral QD
- Physical Dimensions (LxWxH or DxH mm) 30.0 x 54.5
- Primary Housing Material Polycarbonate
- Number of Input Pins/Conductors 4
- Environmental Rating IP67; IP69
- Power DC
- Color Technology RGB Configurable
- Output Type Communication Protocol
- Max Op. Temperature (°C) 50
- Feature: Washdown Rated Yes
- Storage Temp (°C) -40 to 70
- Feature: Audible No
- Feature: Hazardous Area No
- Input Type Communication Protocol
- PICK-IQ (Modbus RTU) Yes
- Pro-Editor Compatible (Discrete) No
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Wireless No
- IO Link No
- Primary Window Material Polycarbonate Diffused
- Modbus RTU Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K30PTSQ on Powermatic Associates is $145.00. Order now.
About the product
Banner Engineering K30PTSQ is a programmable capacitive touch-sensitive button featuring PICK IQ serial communication compatible with RS-485 / Modbus RTU. It is designed with a 14-color multicolor LED illumination within a black housing and a dome window shape made from polycarbonate. This part is pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. It operates on a supply voltage range of 18Vdc to 30Vdc, with 24Vdc as the nominal voltage. The K30PTSQ can be mounted via surface or base pole with an M22 thread and has a diameter of 30mm / 1-3/16" for the dome. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and offers a degree of protection rated at IP67 and IP69K. The operating mode can be set to either momentary or latched, programmable to suit various application needs, and it has a current consumption of 65mA.
