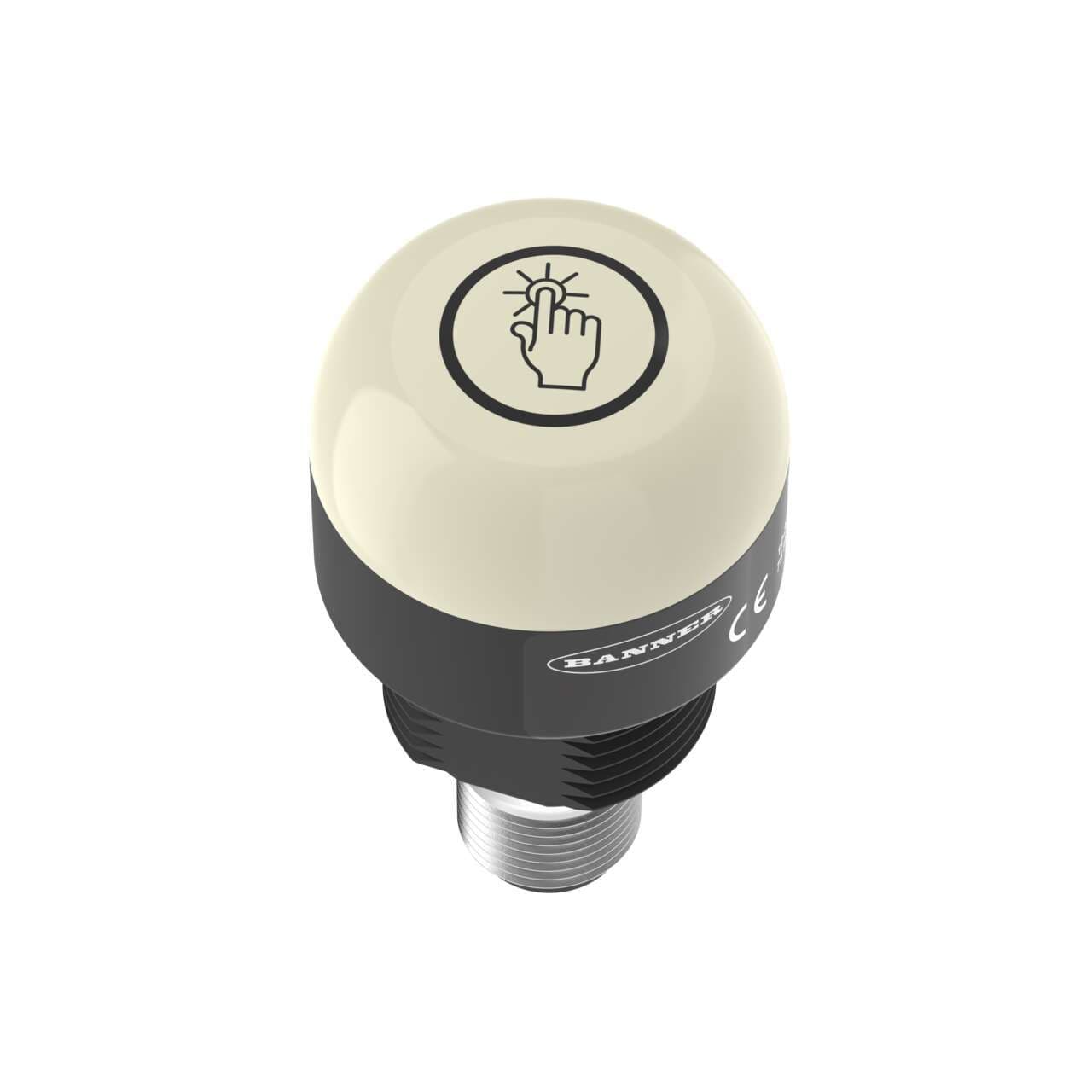

K30RBTGXHQ Banner Pick-to-Light Sensors
Part#:K30RBTGXHQ
Alt. Part#:85174
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K30 Series: 1-Color Touch Sensor; Momentary Output; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Output: Bipolar (NC); Colors: Green - Not Activated, Green - Activated; M12 Integral QD
Product Details
- Weight 31.75144 g
- Country Of Origin MX
- Actuation Yes
- Max Current Color (mA) 55
- Input Type Bimodal (PNP/NPN)
- Button Operation Momentary
- Pro-Editor Compatible (Discrete) No
- Power Source DC
- Product Size (mm) 30
- Operation Normally Closed
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Audible No
- Primary Housing Material Polycarbonate
- Quick Disconnect Type M12 (Euro)
- Environmental Rating IP67; IP69
- Primary Window Material Polycarbonate Diffused
- Wireless No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Physical Dimensions (LxWxH or DxH mm) 30.0 x 54.5
- Feature: Washdown Rated Yes
- Cable Length (m) 2
- Number of Colors / Segments 1
- Number of Input Pins/Conductors 5
- NEMA Type and UL Type Rating NEMA 4X, 13
- Feature: Quick Disconnect Yes
- Power DC
- Connection Integral QD
- Max Output Response Time (ms) 150
- Max Op. Temperature (°C) 50
- IO Link No
- Mounting Thread M22 x 1.5
- Animation Option 1 Solid On
- Output Type Bipolar (NPN & PNP)
- Min Op. Temperature (°C) -40
- Multi-Color Device Single Color On
- Activation Function Capacitive Touch
- Color Technology Standard LED
- Max Input Response Time (ms) 300
- Primary Housing Color Black
- Feature: Chemical Resistant No
- Feature: Hazardous Area No
- Housing Style Base Mount - Dome Window
- Color Option 1 Green
- Supply Voltage 12-30 V dc
- Storage Temp (°C) -40 to 70
- Modbus RTU No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K30RBTGXHQ on Powermatic Associates is $132.00. Order now.
About the product
Banner Engineering K30RBTGXHQ is an illuminated capacitive touch-sensitive button designed with a 1-color G (Not activated) / No color (Activated) LED illumination housed in a black polycarbonate base and dome window. This part features a pre-equipped 5-pin M12 Euro-style QD connector for connectivity and operates within a supply voltage range of 12Vdc-30Vdc, with 24Vdc nominal. It offers versatile mounting options including surface or base pole with an M22 thread and has a 30mm / 1-3/16" dome diameter. The K30RBTGXHQ is built to function in ambient air temperatures ranging from -40°C to +50°C and is protected to IP67, IP69K, NEMA 4X, and NEMA 13 standards. It operates in a momentary NC (Normally Closed) touch output mode, consumes 55mA of current, and includes 1 x digital input (12-30Vdc; PNP/NPN) for color control and 1 x digital output (12-30Vdc; PNP/NPN) for touch functionality.
