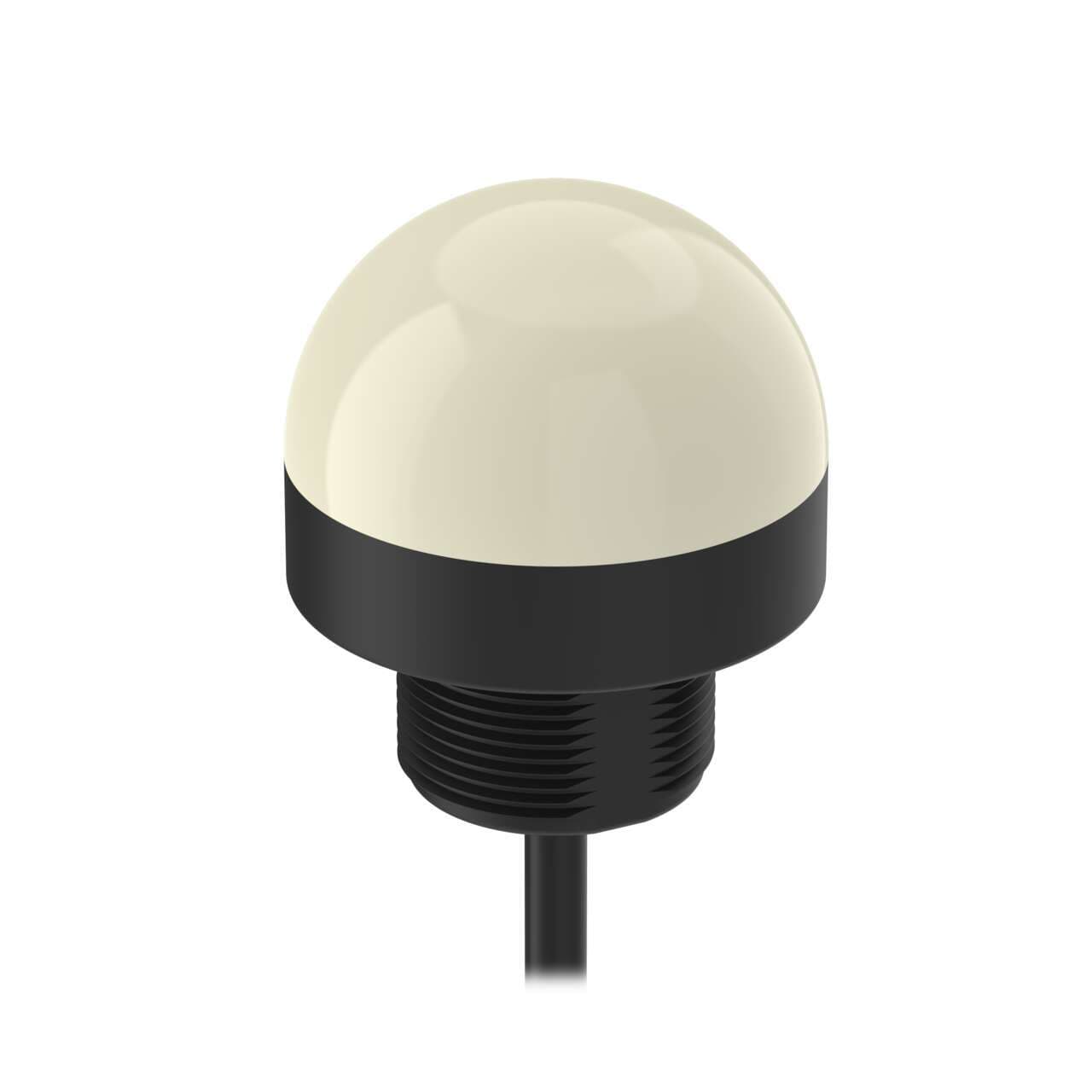

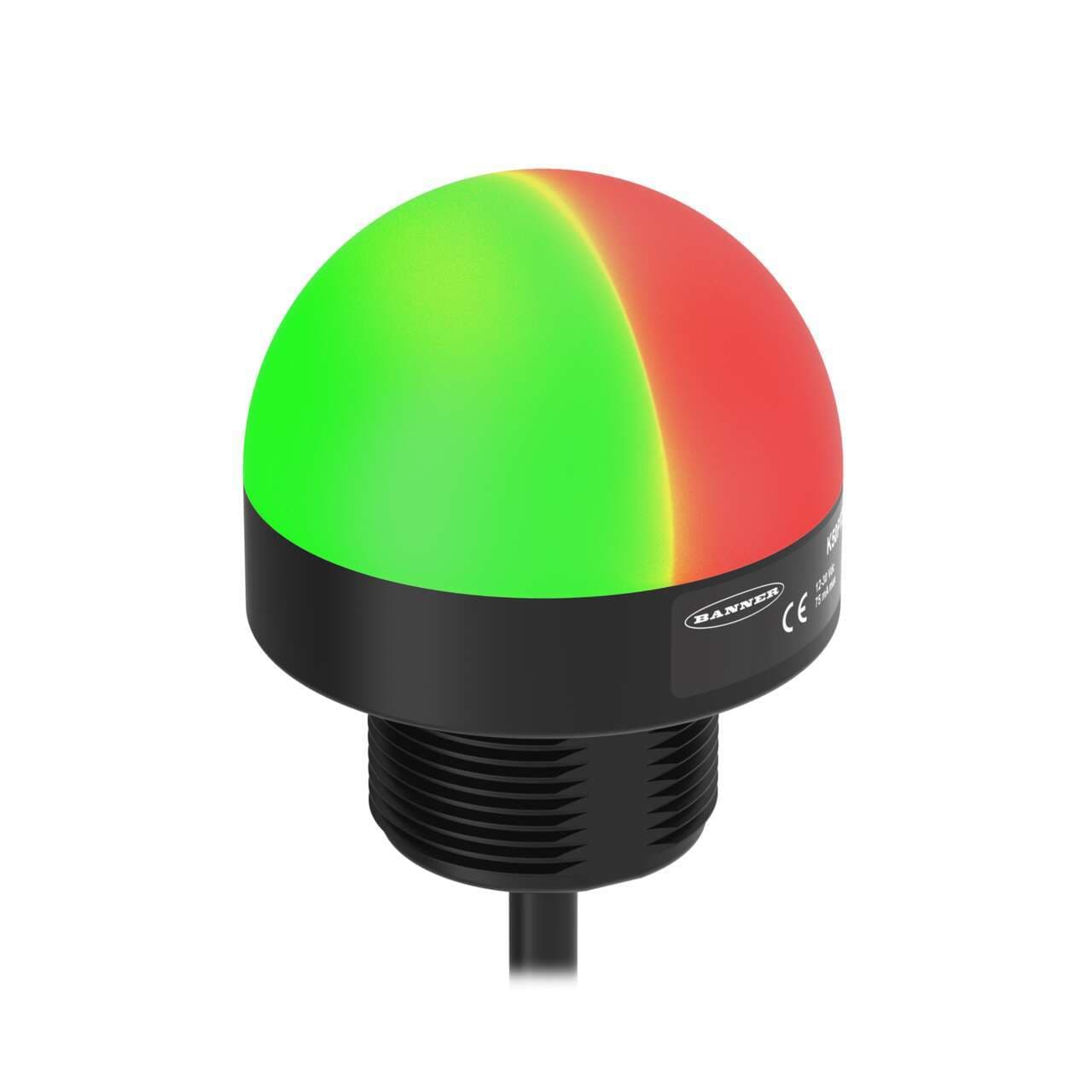

K50L2RGB7 Banner Pick-to-Light Sensors

Product Details

• Weight
  235.86784 g
• Country Of Origin
  MX
• Power
  DC
• Number of Colors / Segments
  7
• Lumens Color 2
  21.4
• Color 5 - Wavelength/Color Temp/Coordinates
  5950K
• Color Option 7
  Cyan
• Min Op. Temperature (°C)
  -40
• Wireless
  No
• Mounting Thread
  M30 x 1.5
• Color 2 - Wavelength/Color Temp/Coordinates
  530 nm
• Color Option 5
  White
• Lumens Color 7
  25.1
• Input Type
  Bimodal (PNP/NPN)
• Primary Housing Color
  Black
• Indication
  Yes
• Connection
  Cable
• Color Option 6
  Magenta
• Max Input Response Time (ms)
  250
• Primary Housing Material
  Polycarbonate
Color Option 3
Blue
Color 4 - Wavelength/Color Temp/Coordinates
0.457, 0.485
Color Technology
RGB Configurable
Lumens Color 3
4.7
Lumens Color 6
8.5
Supply Voltage
10-30 V dc
Feature: Hazardous Area
No
Product Size (mm)
50
Color Option 2
Green
Lumens Color 4
17.2
Color 7 - Wavelength/Color Temp/Coordinates
0.154, 0.321
Environmental Rating
IP66; IP67; IP69
Color Input Control
Multiple (One or more wires/color, enables more colors than input wires)
Color 1 - Wavelength/Color Temp/Coordinates
625 nm
Color Option 4
Yellow
Max Current Color (mA)
220
NEMA Type and UL Type Rating
NEMA and UL 4X, 13
Power Source
DC
Color Option 1
Red
Color 3 - Wavelength/Color Temp/Coordinates
470 nm
Color 6 - Wavelength/Color Temp/Coordinates
0.365, 0.176
Number of Input Pins/Conductors
5
Housing Style
Base Mount - Dome Window
Lumens Color 1
6.3
Lumens Color 5
21.3
Physical Dimensions (LxWxH or DxH mm)
50.0 x 58.0
Max Op. Relative Humidity Non-Condensing (%)
90% @ 50°C
Modbus RTU
No
Max Op. Temperature (°C)
50
IO Link
No
Feature: Chemical Resistant
No
Primary Window Material
Polycarbonate Diffused
Pro-Editor Compatible (Discrete)
Yes
Wire Selectable Function
Multi-Function
Multi-Color Device
Single Color On
Storage Temp (°C)
-40 to 70
Feature: Audible
No
Feature: Washdown Rated
Yes
