K50LGRYBWPQ8 Banner Pick-to-Light Sensors
Part#:K50LGRYBWPQ8
Alt. Part#:76959
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 Series EZ-LIGHT: 5-Color Multi-Function Indica; Voltage: 18-30 V dc; Housing: Polycarbonate; IP67; Input: PNP; Colors: Green Red Yellow Blue White; 8-pin M12 Integral QD
Product Details
- Weight 136.0776 g
- Country Of Origin MX
- Number of Colors / Segments 5
- Color Option 4 Blue
- Environmental Rating IP67
- Modbus RTU No
- Indication Yes
- Animation Option 1 Multiple
- Animation Option 4 Multiple
- Color Option 5 White
- Primary Housing Material Polycarbonate
- Connection Integral QD
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 69.0
- Multi-Color Device Single Color On
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Animation Option 2 Multiple
- Supply Voltage 18-30 V dc
- Feature: Hazardous Area No
- Power Source DC
- Color Option 1 Green
- Animation Option 5 Multiple
- Min Op. Temperature (°C) -40
- Power DC
- Color Technology Standard LED
- Animation Option 3 Multiple
- Max Input Response Time (ms) 250
- Primary Housing Color Black
- Housing Style Base Mount - Dome Window
- Quick Disconnect Type M12 (Euro)
- Input Type PNP
- Mounting Thread M30 x 1.5
- Color Option 2 Red
- Max Current Color (mA) 50
- IO Link No
- Product Size (mm) 50
- Color Option 3 Yellow
- Wire Selectable Function Multi-Function
- Max Op. Temperature (°C) 50
- Wireless No
- Number of Input Pins/Conductors 8
- Feature: Audible No
- Feature: Chemical Resistant No
- Pro-Editor Compatible (Discrete) No
- Primary Window Material Polycarbonate Diffused
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50LGRYBWPQ8 on Powermatic Associates is $146.00. Order now.
About the product

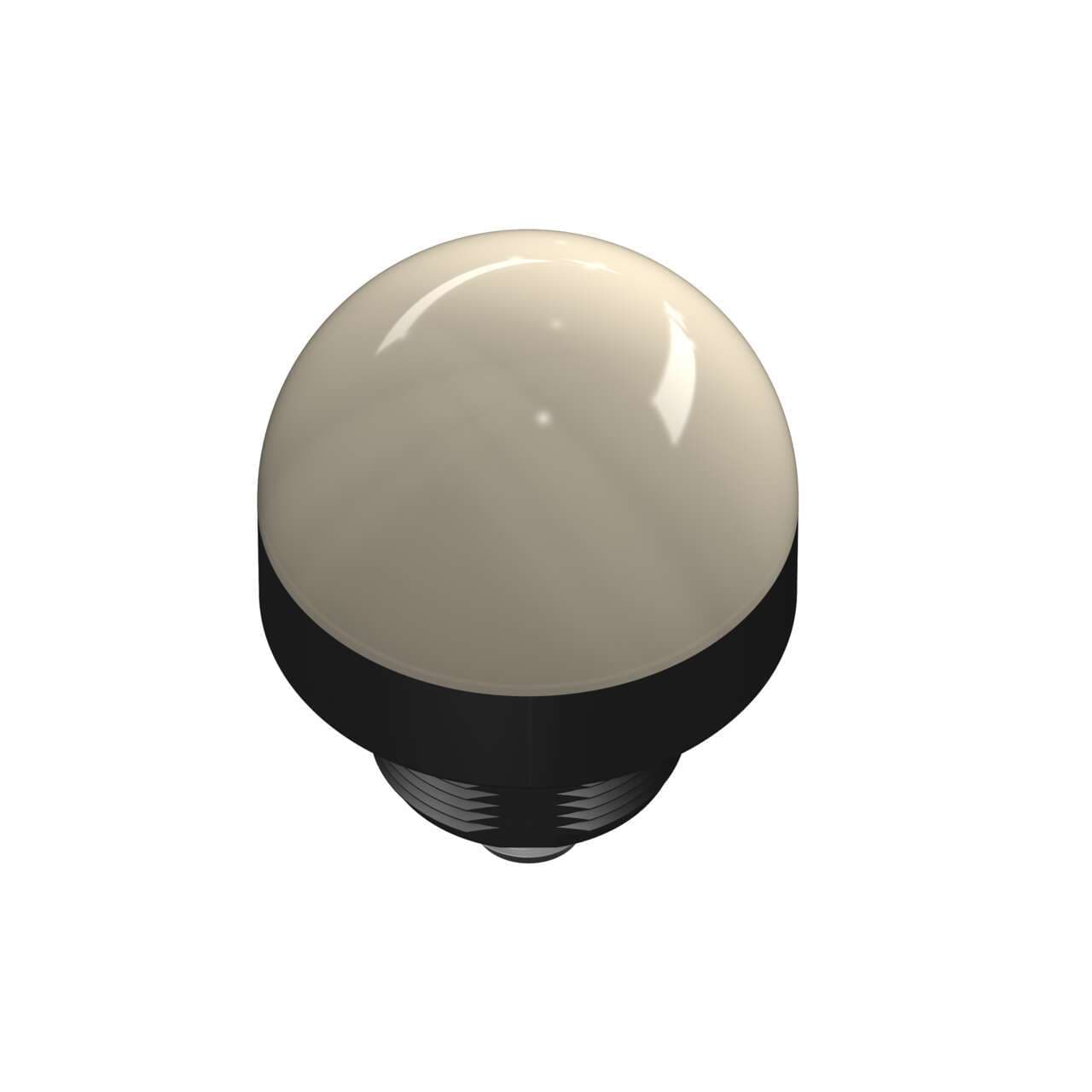

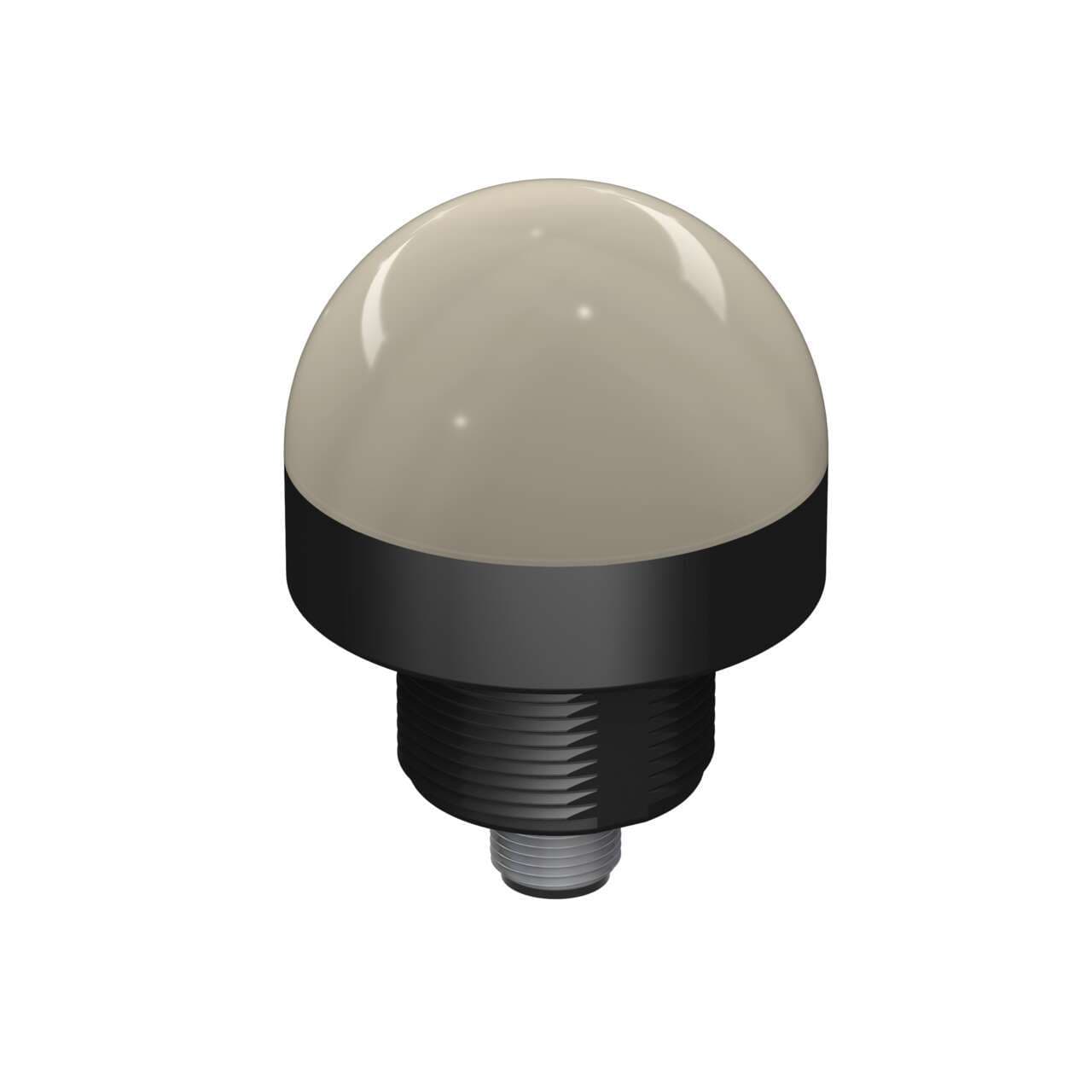

Banner Engineering K50LGRYBWPQ8 is a pilot light from the EZ-LIGHT series designed to serve as an LED pilot light indicator. This part features a 5-color multifunction LED illumination in green, red, yellow, blue, and white colors, encased in a black housing with a dome-shaped window. The window and base are made from polycarbonate (PC), ensuring durability. It is pre-wired with a 6-inch (15cm) pigtail that terminates with an 8-pin M12 Euro-style quick disconnect (QD) connector. The K50LGRYBWPQ8 operates on a supply voltage of 18Vdc to 30Vdc, with 24Vdc as the nominal voltage, and can be mounted on a surface, base, or pole flush with a 30mm hole using an M30 thread. The dome has a diameter of 50mm (2 inches). It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and offers a degree of protection rated at IP67. The current consumption is 50mA, and it features 5 digital inputs (18-30Vdc; PNP) for color control.
