K50LRXXPQ Banner Pick-to-Light Sensors
Part#:K50LRXXPQ
Alt. Part#:78076
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 Series EZ-LIGHT: 1-Color General Purpose Indicator; Voltage: 18-30 V dc; Housing: Polycarbonate; IP67; Input: PNP; Colors: Red; 4-pin M12 Integral QD
Product Details
- Weight 136.0776 g
- Country Of Origin MX
- Power DC
- Supply Voltage 18-30 V dc
- Max Input Response Time (ms) 1
- Feature: Quick Disconnect Yes
- Indication Yes
- Color Option 1 Red
- Environmental Rating IP67; IP69
- Feature: Chemical Resistant No
- Power Source DC
- Input Type PNP
- Feature: Washdown Rated Yes
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Number of Input Pins/Conductors 4
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 69.0
- Pro-Editor Compatible (Discrete) No
- Mounting Thread M30 x 1.5
- Connection Integral QD
- Primary Housing Color Black
- IO Link No
- Housing Style Base Mount - Dome Window
- Quick Disconnect Type M12 (Euro)
- Primary Window Material Polycarbonate Diffused
- Modbus RTU No
- Product Size (mm) 50
- Color Technology Standard LED
- Min Op. Temperature (°C) -40
- Multi-Color Device Single Color On
- Number of Colors / Segments 1
- Max Current Color (mA) 40
- Feature: Audible No
- Wireless No
- Primary Housing Material Polycarbonate
- Animation Option 1 Solid On
- Max Op. Temperature (°C) 50
- Feature: Hazardous Area No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50LRXXPQ on Powermatic Associates is $107.00. Order now.
About the product

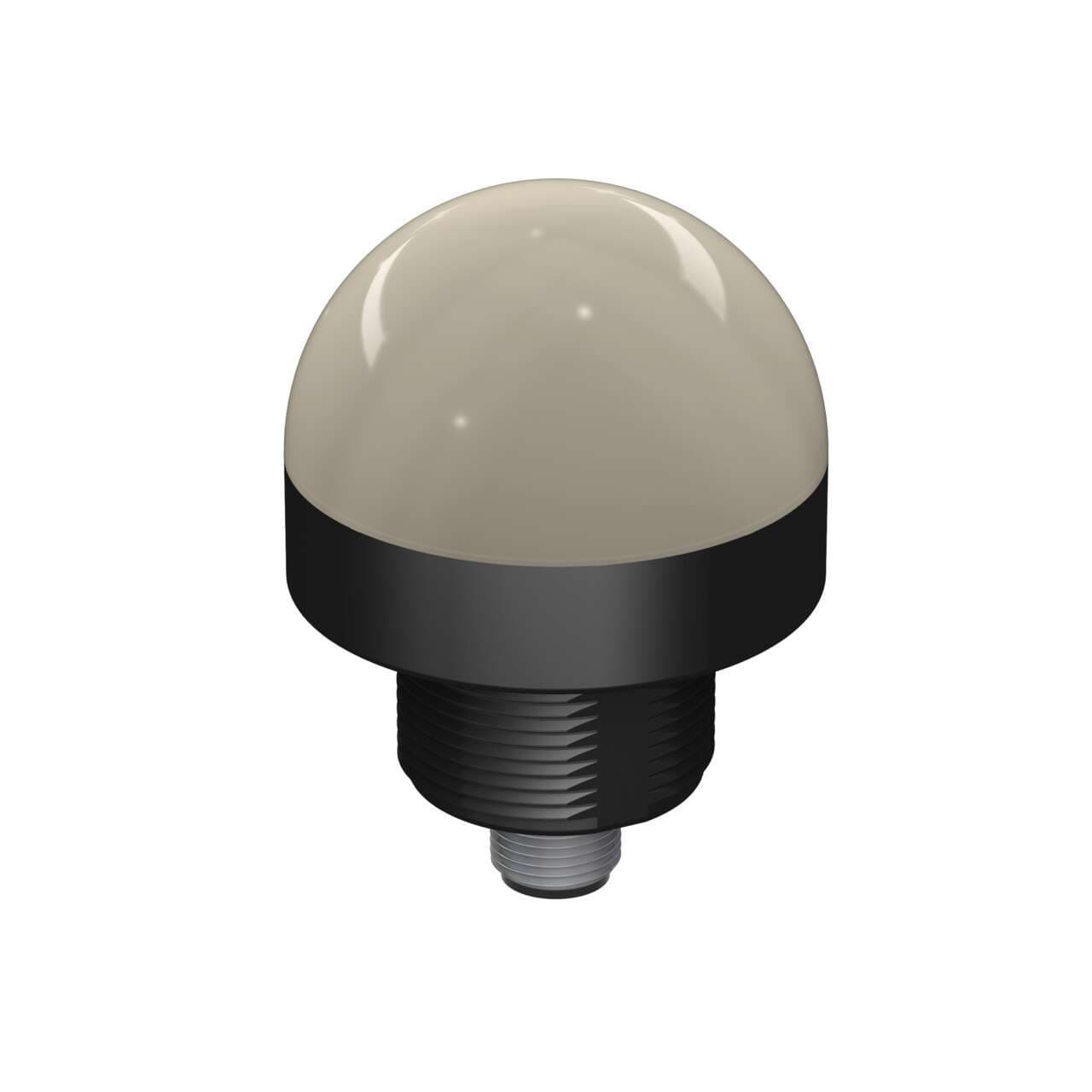

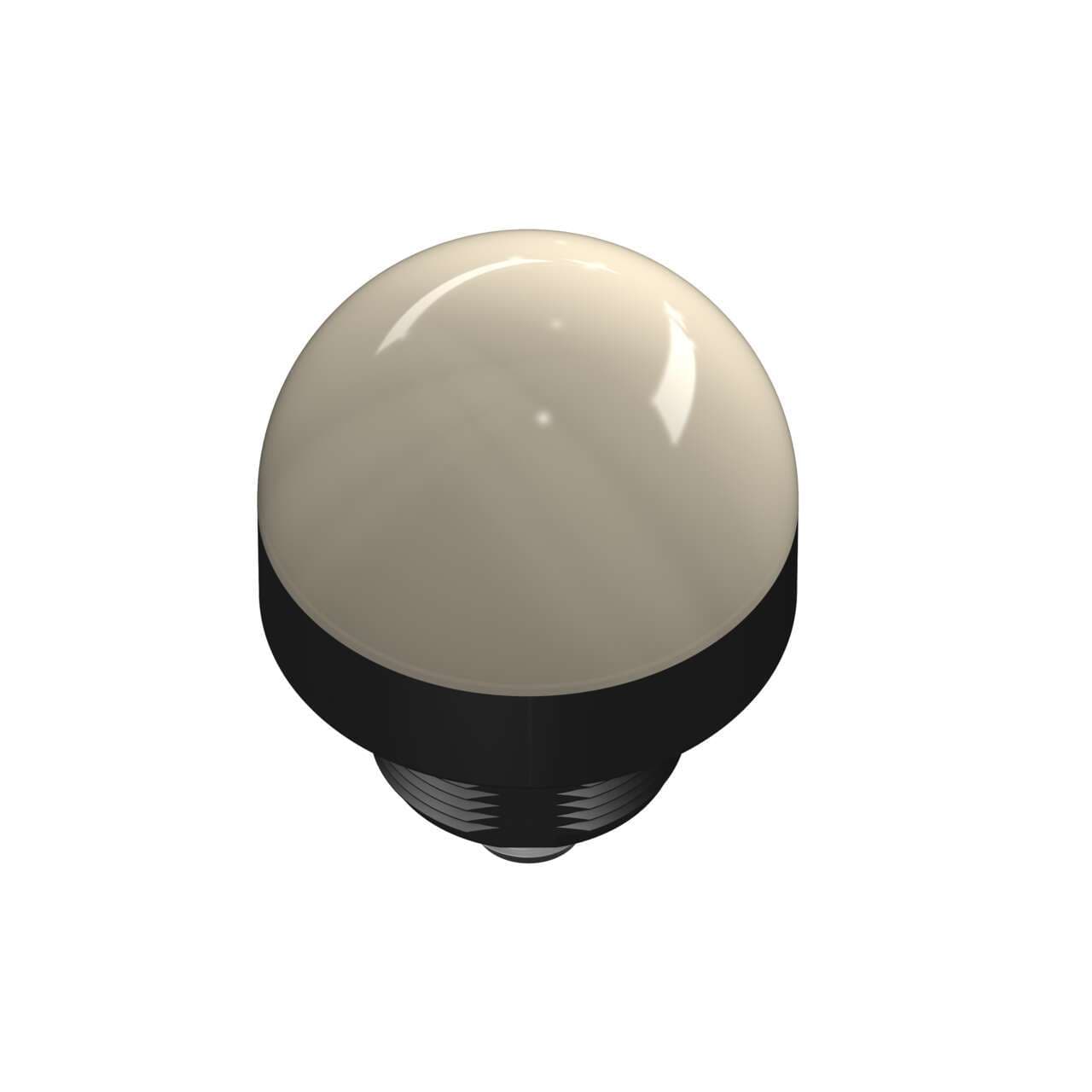

Banner Engineering K50LRXXPQ is a pilot light from the EZ-LIGHT series designed with a high-intensity, 1-color red LED illumination for clear visibility. It features a black housing with a dome-shaped window made from diffused polycarbonate (PC) and a base also constructed from polycarbonate (PC), ensuring durability. This part is equipped with a 4-pin M12 Euro-style quick disconnect (QD) connector for easy installation. It operates on a supply voltage range of 18Vdc to 30Vdc, with a nominal voltage of 24Vdc, and can be mounted on a surface, base, or pole with a flush 30mm hole using an M30 thread. The dome has a diameter of 50mm (2 inches), and the unit is designed to function in ambient air temperatures ranging from -40°C to +50°C. It offers a high degree of protection with ratings of IP67 and IP69K, consumes 40mA of current, and includes 1 x digital input (18-30Vdc; PNP) for color control.
