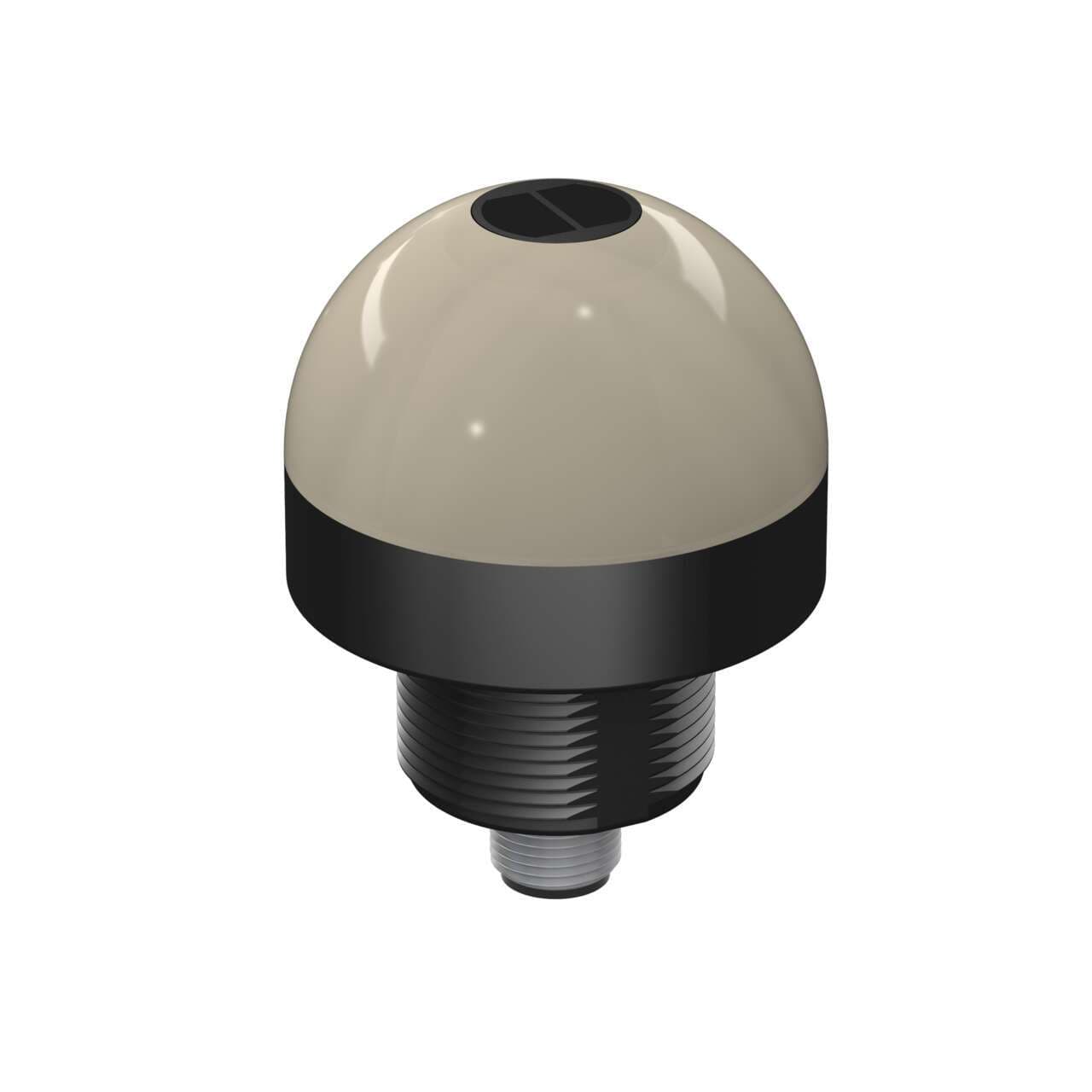

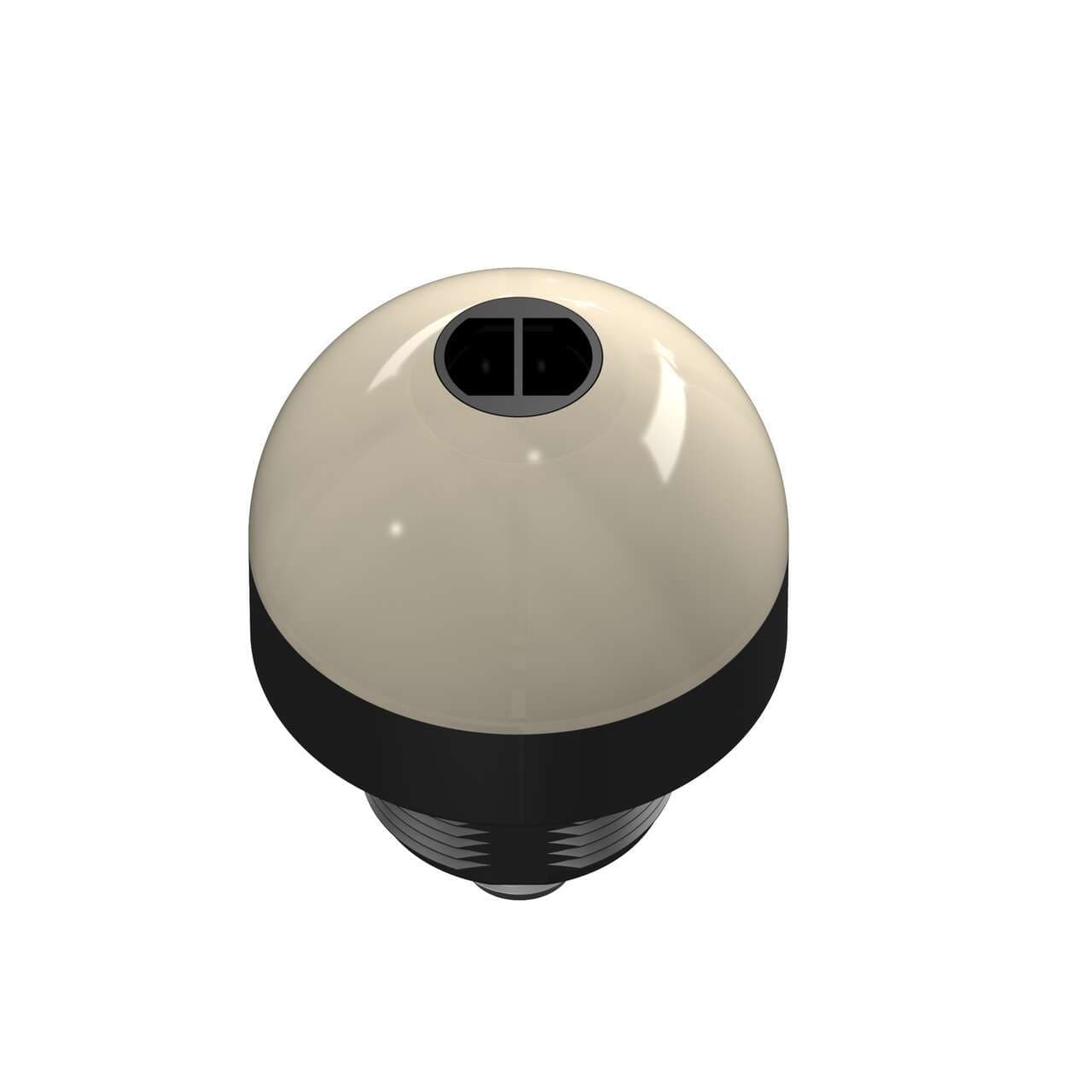

K50RPLPGREQ Banner Pick-to-Light Sensors
Part#:K50RPLPGREQ
Alt. Part#:76286
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 E-Series EZ-LIGHT: 2-Color Polar Retro Sensor; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67; Range: 2 m; Input: PNP (NC); Colors: Green Red; 5-pin M12 Integral QD
Product Details
- Weight 158.7572 g
- Country Of Origin MX
- Primary Housing Material Polycarbonate
- Color Option 1 Green
- Operation Normally Closed
- Environmental Rating IP67; IP69
- Primary Window Material Polycarbonate Diffused
- Sensing Mode (Detailed) Polarized
- Connection Integral QD
- Supply Voltage 12-30 V dc
- NEMA Type and UL Type Rating UL 4X, 13
- Feature: Audible No
- Power Source DC
- Number of Input Pins/Conductors 4
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Number of Beams 1
- Feature: Washdown Rated Yes
- Power DC
- Mounting Thread M30 x 1.5
- Animation Option 1 Solid On
- Output Type PNP
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Chemical Resistant No
- Actuation Yes
- Color Option 2 Red
- Max Output Response Time (ms) 3
- Max Op. Temperature (°C) 50
- IO Link No
- Cable Length (m) 2
- Color Technology Standard LED
- Mis-Pick Light Red
- Maximum Sensing Distance (mm) 2000
- Min Op. Temperature (°C) -40
- Housing Style Base Mount - Dome Window
- Product Size (mm) 50
- Max Current Color (mA) 75
- I/O Block Compatible Yes
- Feature: Hazardous Area No
- Activation Function Optical
- Quick Disconnect Type M12 (Euro)
- Input Type PNP
- Primary Housing Color Black
- Modbus RTU No
- Sensing Mode (General) Retroreflective
- Number of Colors / Segments 2
- Pick-to-Light Function E
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 67.8
- Button Operation Momentary
- Job Light Green
- Wireless No
- Pro-Editor Compatible (Discrete) No
- Multi-Color Device Single Color On
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50RPLPGREQ on Powermatic Associates is $159.00. Order now.
About the product
Banner Engineering K50RPLPGREQ is a pick-to-light component from the EZ-LIGHT series designed for optical sensing. It features a polarized retro-reflective sensing I.O. block compatible LED illumination within a black housing and a dome window shape. The material used for both the diffused window and base is Polycarbonate (PC). This part is pre-wired with a 6" / 15cm pigtail that terminates with a 4-pin M12 Euro-style QD connector. It operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc being nominal. The K50RPLPGREQ can be mounted via surface / base M30 / 1/2" NPSM thread, and has a 50mm / 2" dome diameter. It is designed to operate within an ambient air temperature range of -40°C to +50°C and boasts a degree of protection rated at IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. The operating mode includes a momentary job light (G; Green) that is ON when the job input is active, touch activates output only, touch with inactive job input activates mispick light (R; Red), and NC (Normally Closed) touch output. It has a current consumption of 75mA, includes 1 x digital input (12-30Vdc; PNP) for JOB color control, and offers a 2m sensing range. Additionally, it features 1 x digital output (12-30Vdc; PNP) for Touch and 1 x digital output (12-30Vdc; PNP) for Mispick.
