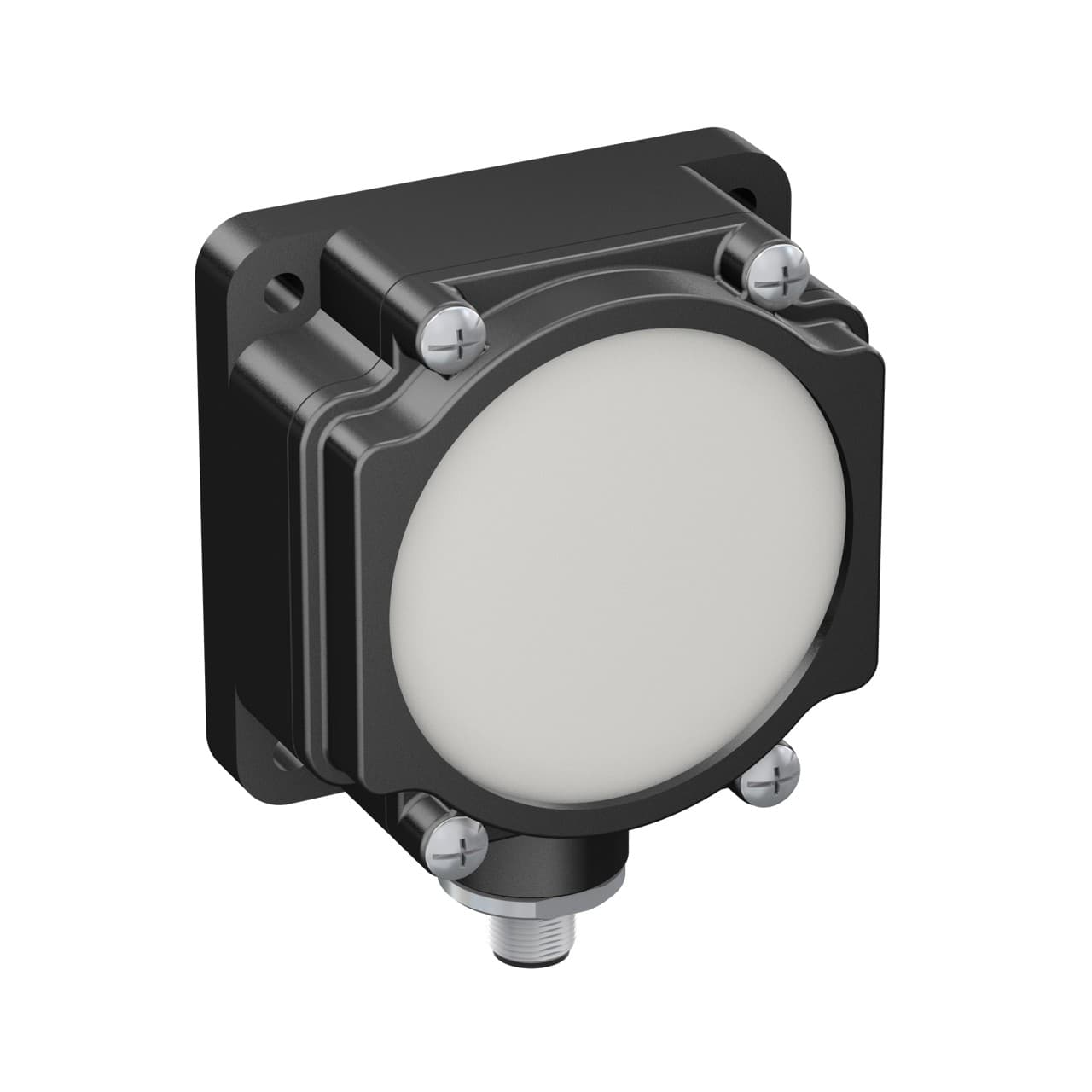

K80FDLGXXPQ Banner Pick-to-Light Sensors
Part#:K80FDLGXXPQ
Alt. Part#:29244
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K80F Series EZ-LIGHT: 1-Color Daylight Visible Indicator; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67; Input: PNP; Colors: Green; M12 Integral QD
Product Details
- Weight 226.796 g
- Country Of Origin US
- Color Option 1 Green
- Power DC
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Power Source DC
- Number of Input Pins/Conductors 4
- Physical Dimensions (LxWxH or DxH mm) 107.6 x 80.9 x 41.7
- Wireless No
- Primary Housing Material Polycarbonate
- Input Type PNP
- Primary Window Material Acrylic Diffused
- Supply Voltage 12-30 V dc
- Feature: Chemical Resistant No
- Pro-Editor Compatible (Discrete) No
- Number of Colors / Segments 1
- Lumens Color 1 39.0
- Max Input Response Time (ms) 10
- Primary Housing Color Black
- Product Size (mm) 80
- Animation Option 1 Dip-Switch Controlled
- Environmental Rating IP67
- Indication Intensity High Brightness & Daylight Visible
- Indication Yes
- Connection Integral QD
- Max Current Color (mA) 140
- Min Op. Temperature (°C) -40
- Modbus RTU No
- Housing Style Flat Mount - Flat Window
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Feature: Hazardous Area No
- IO Link No
- Color Technology Standard LED
- Feature: Audible No
- Feature: Quick Disconnect Yes
- Mounting Thread No Thread
- Quick Disconnect Type M12 (Euro)
- Max Op. Temperature (°C) 50
- Application: Traffic Light Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K80FDLGXXPQ on Powermatic Associates is $235.00. Order now.
About the product
Banner Engineering K80FDLGXXPQ is a pilot light from the EZ-LIGHT series featuring a flat-pack LED pilot light indicator designed for daylight-visible 1-color Green LED illumination. It comes in a black housing with a round flat window on a flat-pack body, constructed from an acrylic diffused window and a polycarbonate (PC) base. This part offers a screw-clamp terminal connection and operates on a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal. It is designed for surface or wall mounting with an 80x80mm dimension and has a 66mm diameter light area. The K80FDLGXXPQ can operate in ambient air temperatures ranging from -40°C to +50°C and is rated with a degree of protection of IP67. It has a current consumption of 140mA and includes 1 x digital input (12-30Vdc; PNP) for color control.
