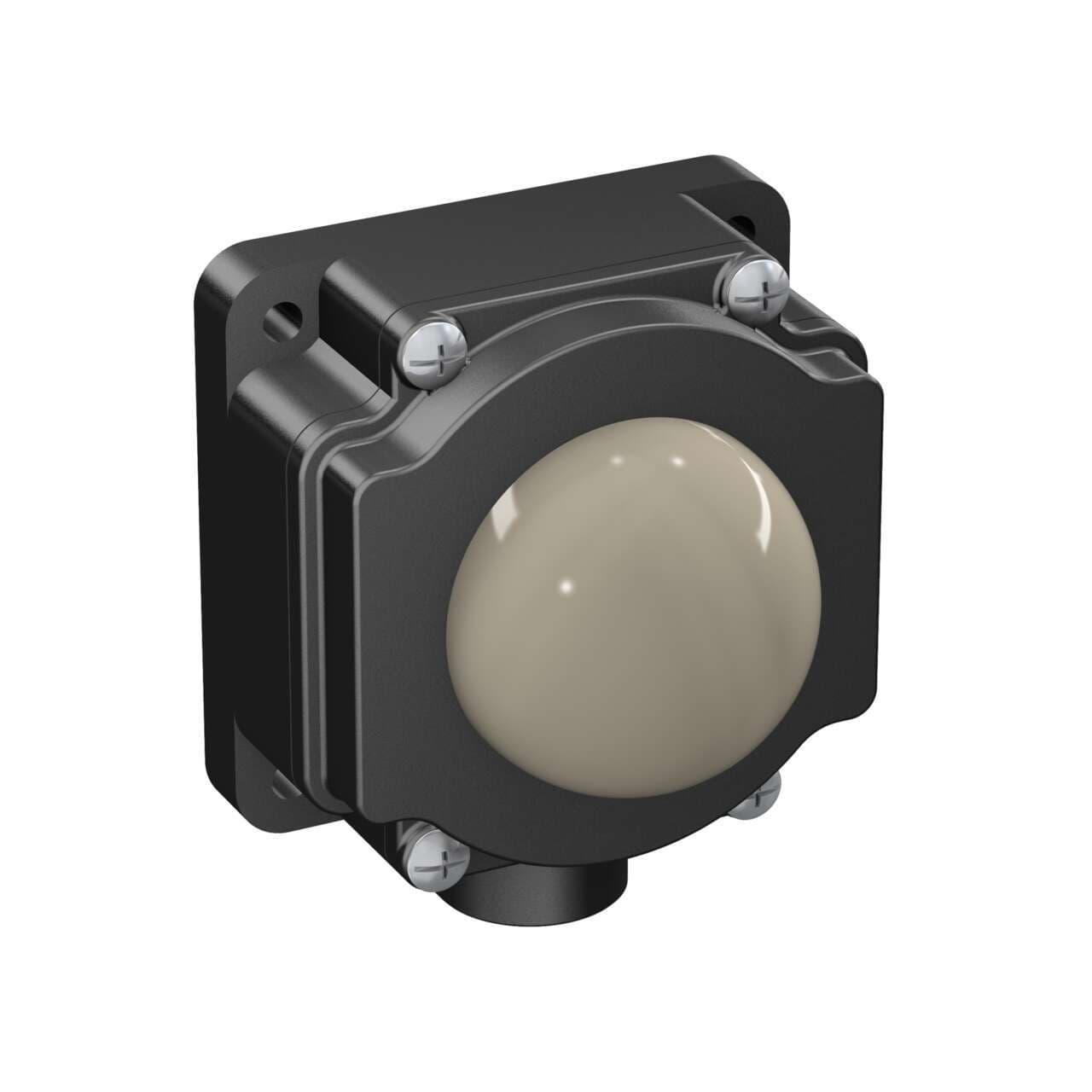

K80LGROPQP Banner Pick-to-Light Sensors
Part#:K80LGROPQP
Alt. Part#:807540
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K80 Series EZ-LIGHT: 3-Color General Purpose Indicator; Voltage: 18-30 V dc; Housing: Polycarbonate; IP67; Input: PNP; Colors: Green Red Orange; 150 mm (6 in) 4-pin M12 PVC Pigtail QD
Product Details
- Weight 340.194 g
- Country Of Origin US
- Pro-Editor Compatible (Discrete) No
- Wireless No
- Modbus RTU No
- IO Link No
- Multi-Color Device Single Color On
- Feature: Quick Disconnect Yes
- Feature: Chemical Resistant No
- Feature: Hazardous Area No
- Feature: Audible No
- Primary Window Material Acrylic Diffused
- Max Op. Temperature (°C) 50
- Primary Housing Color Yellow
- Physical Dimensions (LxWxH or DxH mm) 93.1 x 80.9 x 66.7
- Environmental Rating IP67
- Min Op. Temperature (°C) -40
- Max Input Response Time (ms) 10
- Input Type PNP
- Supply Voltage 18-30 V dc
- Number of Input Pins/Conductors 5
- Max Current Color (mA) 40
- Color Option 1 Green
- Color Option 3 Orange
- Connection Pigtail QD
- Color Option 2 Red
- Quick Disconnect Type M12 (Euro)
- Product Size (mm) 80
- Animation Option 1 Solid On
- Color Technology Standard LED
- Indication Yes
- Mounting Thread No Thread
- Housing Style Flat Mount - Dome Window
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Power Source DC
- Number of Colors / Segments 3
- Primary Housing Material Polycarbonate
- Power DC
- Cable Length (m) 0.15
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K80LGROPQP on Powermatic Associates is $138.00. Order now.
About the product
Banner Engineering K80LGROPQP is a flat-pack LED pilot light indicator from the EZ-LIGHT series, designed with a 3-color multifunction G/R/W color pattern LED illumination. It features a yellow housing with a dome window on a flat-pack body, constructed from an acrylic diffused window and a polycarbonate (PC) base. This part is pre-wired with a 6" / 15cm pigtail that terminates with a 5-pin M12 Euro-style QD connector. It operates on a supply voltage of 18Vdc-30Vdc (24Vdc nom.) and is suitable for surface or wall mounting with an 80x80mm footprint. The dome has a diameter of 50mm / 2". It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and offers a degree of protection rated at IP67. The current consumption is 40mA, and it includes 3 x digital inputs (18-30Vdc; PNP) for color control.
