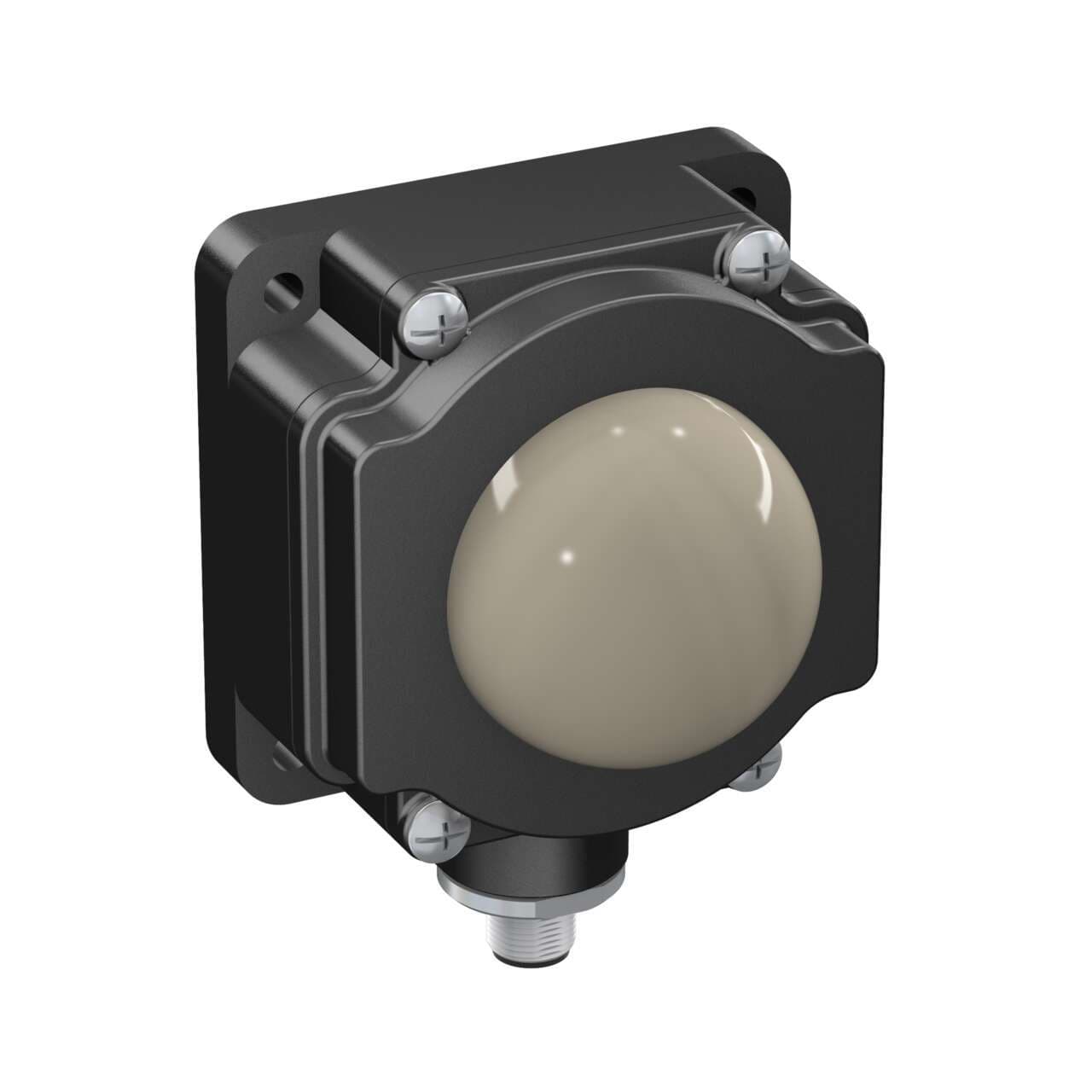

K80LGRYB4PQ Banner Pick-to-Light Sensors

Product Details

• Weight
  315.700032 g
• Country Of Origin
  US
• Pro-Editor Compatible (Discrete)
  No
• Modbus RTU
  No
• Feature: Quick Disconnect
  Yes
• Multi-Color Device
  Single Color On - Alternating
• Feature: Audible
  No
• Wireless
  No
• IO Link
  No
• Feature: Chemical Resistant
  No
• Feature: Hazardous Area
  No
• Primary Window Material
  Acrylic Diffused
• Min Op. Temperature (°C)
  -40
• Primary Housing Color
  Yellow
• Max Op. Temperature (°C)
  50
• Environmental Rating
  IP67
• Physical Dimensions (LxWxH or DxH mm)
  107.6 x 80.9 x 66.7
• Supply Voltage
  18-30 V dc
• Number of Input Pins/Conductors
  5
• Max Input Response Time (ms)
  10
Input Type
PNP
Wire Selectable Function
Multi-Function
Max Current Color (mA)
40
Quick Disconnect Type
M12 (Euro)
Color Option 4
Blue
Animation Option 3
Multiple
Color Option 3
Yellow
Animation Option 2
Multiple
Animation Option 1
Multiple
Connection
Integral QD
Color Option 2
Red
Color Option 1
Green
Product Size (mm)
80
Cable Length (m)
0.15
Color Technology
Standard LED
Indication
Yes
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Power
DC
Mounting Thread
No Thread
Power Source
DC
Number of Colors / Segments
4
Housing Style
Flat Mount - Dome Window
Primary Housing Material
Polycarbonate
