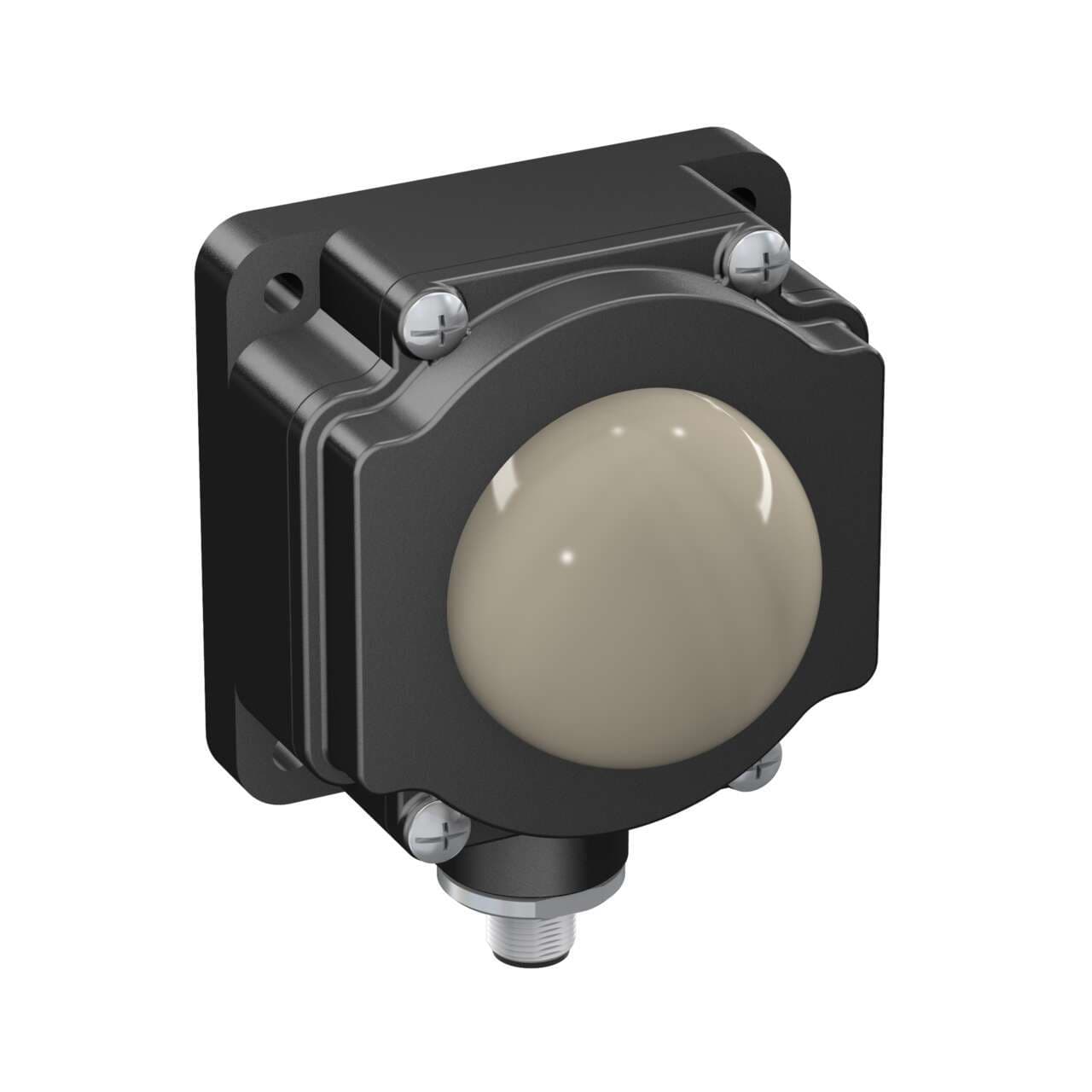

K80LGXXPQ Banner Pick-to-Light Sensors

K80LGXXPQ on Powermatic Associates
Banner

Part#:K80LGXXPQ

Alt. Part#:78647

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

K80 Series EZ-LIGHT: 1-Color General Purpose Indicator; Voltage: 18-30 V dc; Housing: Polycarbonate; IP67; Input: PNP; Colors: Green; M12 Integral QD

Product Details

  • Weight
    294.8348 g
  • Country Of Origin
    US
  • Wireless
    No
  • IO Link
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Feature: Audible
    No
  • Feature: Quick Disconnect
    Yes
  • Modbus RTU
    No
  • Feature: Chemical Resistant
    No
  • Feature: Hazardous Area
    No
  • Min Op. Temperature (°C)
    -40
  • Max Op. Temperature (°C)
    50
  • Input Type
    PNP
  • Physical Dimensions (LxWxH or DxH mm)
    107.6 x 80.9 x 66.7
  • Max Input Response Time (ms)
    10
  • Environmental Rating
    IP67
  • Number of Input Pins/Conductors
    5
  • Max Current Color (mA)
    40
  • Color Option 1
    Green
  • Color Technology
    Standard LED
  • Product Size (mm)
    80
  • Number of Colors / Segments
    1
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Power Source
    DC
  • Housing Style
    Flat Mount - Dome Window
  • Primary Window Material
    Acrylic Diffused
  • Primary Housing Color
    Yellow
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Integral QD
  • Supply Voltage
    18-30 V dc
  • Animation Option 1
    Solid On
  • Indication
    Yes
  • Mounting Thread
    No Thread
  • Primary Housing Material
    Polycarbonate
  • Power
    DC
  • Cable Length (m)
    0.15

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K80LGXXPQ on Powermatic Associates is $138.00. Order now.

About the product

Banner Engineering K80LGXXPQ is a pilot light from the EZ-LIGHT series designed for indicating purposes. This part features a 1-color Green LED illumination housed in a black body with a dome-shaped window on a flat-pack body. The window is made from acrylic with a diffused finish, and the base is constructed from Polycarbonate (PC). It offers a screw-clamp terminal connection for ease of installation. The K80LGXXPQ operates on a supply voltage range of 18Vdc to 30Vdc, with a nominal voltage of 24Vdc, and is designed for surface or wall mounting with dimensions of 80x80mm for the base and a 50mm (2") diameter dome. It can operate in ambient air temperatures ranging from -40°C to +50°C. This part is rated with an IP67 degree of protection, ensuring its durability in various environmental conditions. It has a current consumption of 40mA and includes 1 x digital input (18-30Vdc; PNP) for color control.
