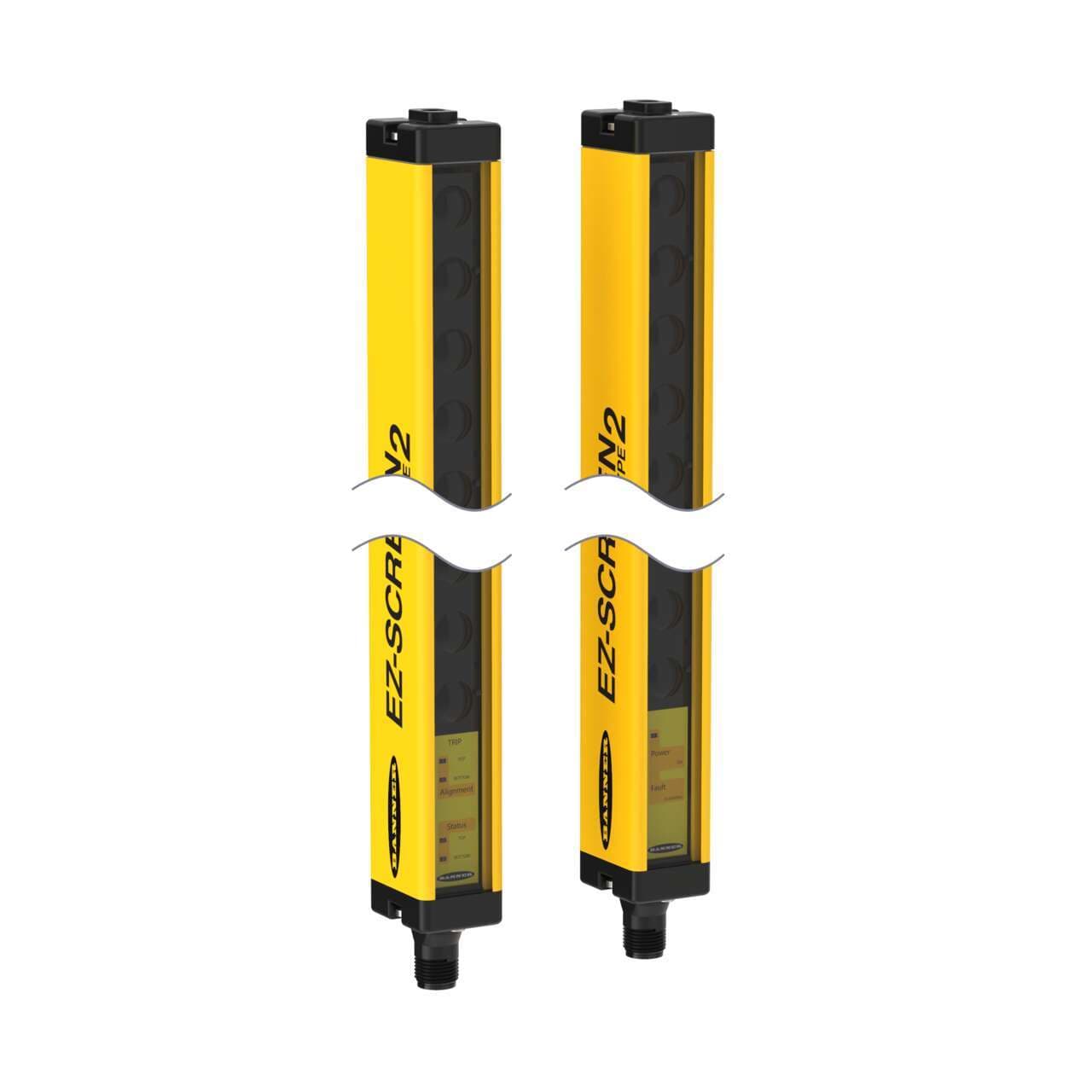

LS2HDTP30-150Q88 Banner Safety Light Curtains
Part#:LS2HDTP30-150Q88
Alt. Part#:80899
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
EZ-SCREEN TYPE 2 HEAVY DUTY; TRIP Output; E/R Pair; 30 mm Resolution; 150 mm Defined Area; 15 m Range; Yellow Housing; 8-pin M12 Integral QD; Mounting Hardware Included
Product Details
- Weight 3610.59232 g
- Country Of Origin CN
- Feature: ESD Safe No
- Feature: Integral Muting No
- Test Input Yes
- Feature: End-to-End Sensing No
- Supply Current 140 mA max.
- Housing Material Aluminum; Zinc; Acrylic
- Trip/Latch Output Trip
- OSSD Rating 24 V dc at 0.5 A each
- Fault Output No
- Auxiliary Output No
- System Type Emitter/Receiver Pair
- Electrical Safety Class III
- Short Protection Yes
- Vibration 10-55 Hz at 0.35 mm
- Shock 10g at 16ms (6000 cycles)
- Operating Temperature 0 to +55 deg. C; RH 95%
- PL Rating N/A
- Scan Code None
- Recovery Time N/A
- Resolution (mm) 30
- SIL Rating SIL2; CL2
- Response Time 11
- Reduced Resolution No
- Operating Voltage 24 V dc +/- 20%
- Number of Pins (Receiver/Emitter) 8
- IP Rating IP65
- Housing Finish Yellow Polyester
- Operating Distance (m) 0.2 - 15
- Fixed Blanking No
- Overall Length (mm) 215
- External Monitoring Device No
- Dimensions WxD (mm) 33.7 x 34.8
- low-profile No
- Heavy Duty Yes
- Connector Type M12
- Safety Level Type 2
- Effective Aperture Angle Type 2 Per IEC 61496-2
- Defined Area Height (mm) 150
- Primary Housing Material Aluminum
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LS2HDTP30-150Q88 on Powermatic Associates is $839.00. Order now.
About the product
Banner Engineering LS2HDTP30-150Q88 is a safety light curtain from the LS2HD series type 2 light screens designed for hand detection with a protective height of 150mm and a resolution of 30mm. This product features a yellow aluminum housing with an acrylic lens and die-cast zinc end caps, ensuring durability. It operates with a 30mm beam spacing/pitch and is pre-equipped with an 8-pin Euro-style M12 connector for connectivity. The LS2HDTP30-150Q88 requires a 24Vdc supply voltage and offers two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) for enhanced safety measures. It has a net height of 215mm, a width of 34mm, and a depth of 35mm, with an IP65 degree of protection, making it suitable for various industrial environments. The sensing distance ranges from 20cm to 15m, and it operates within an ambient air temperature range of 0 to +55°C. The response time is quick at 11ms / 0.011 s.
