LS2HDTR30-450Q8 Banner Safety Light Curtains
Part#:LS2HDTR30-450Q8
Alt. Part#:80877
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
LS2HDTR30-450Q8 EZS T2 HD RCVR TRIP 30 mm x 450 mm TYPE2 HEAVY DUTY
Product Details
- Weight 1716.84572 g
- Country Of Origin CN
- Primary Housing Material Aluminum
- Response Time 14
- Vibration 10-55 Hz at 0.35 mm
- Feature: Integral Muting No
- IP Rating IP65
- Connector Type M12
- SIL Rating SIL2; CL2
- Supply Current 90 mA max.
- External Monitoring Device No
- PL Rating N/A
- System Type Receiver
- Effective Aperture Angle Type 2 Per IEC 61496-2
- Operating Distance (m) 0.2 - 15
- Housing Material Aluminum; Zinc; Acrylic
- Shock 10g at 16ms (6000 cycles)
- Overall Length (mm) 515
- Operating Voltage 24 V dc +/- 20%
- Scan Code None
- Test Input Yes
- low-profile No
- Fixed Blanking No
- Recovery Time N/A
- Auxiliary Output No
- Housing Finish Yellow Polyester
- Safety Level Type 2
- Resolution (mm) 30
- Fault Output No
- Defined Area Height (mm) 450
- Dimensions WxD (mm) 33.7 x 34.8
- Operating Temperature 0 to +55 deg. C; RH 95%
- Electrical Safety Class III
- OSSD Rating 24 V dc at 0.5 A each
- Reduced Resolution No
- Feature: End-to-End Sensing No
- Short Protection Yes
- Trip/Latch Output Trip
- Feature: ESD Safe No
- Number of Pins (Receiver/Emitter) 8
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LS2HDTR30-450Q8 on Powermatic Associates is $798.00. Order now.
About the product

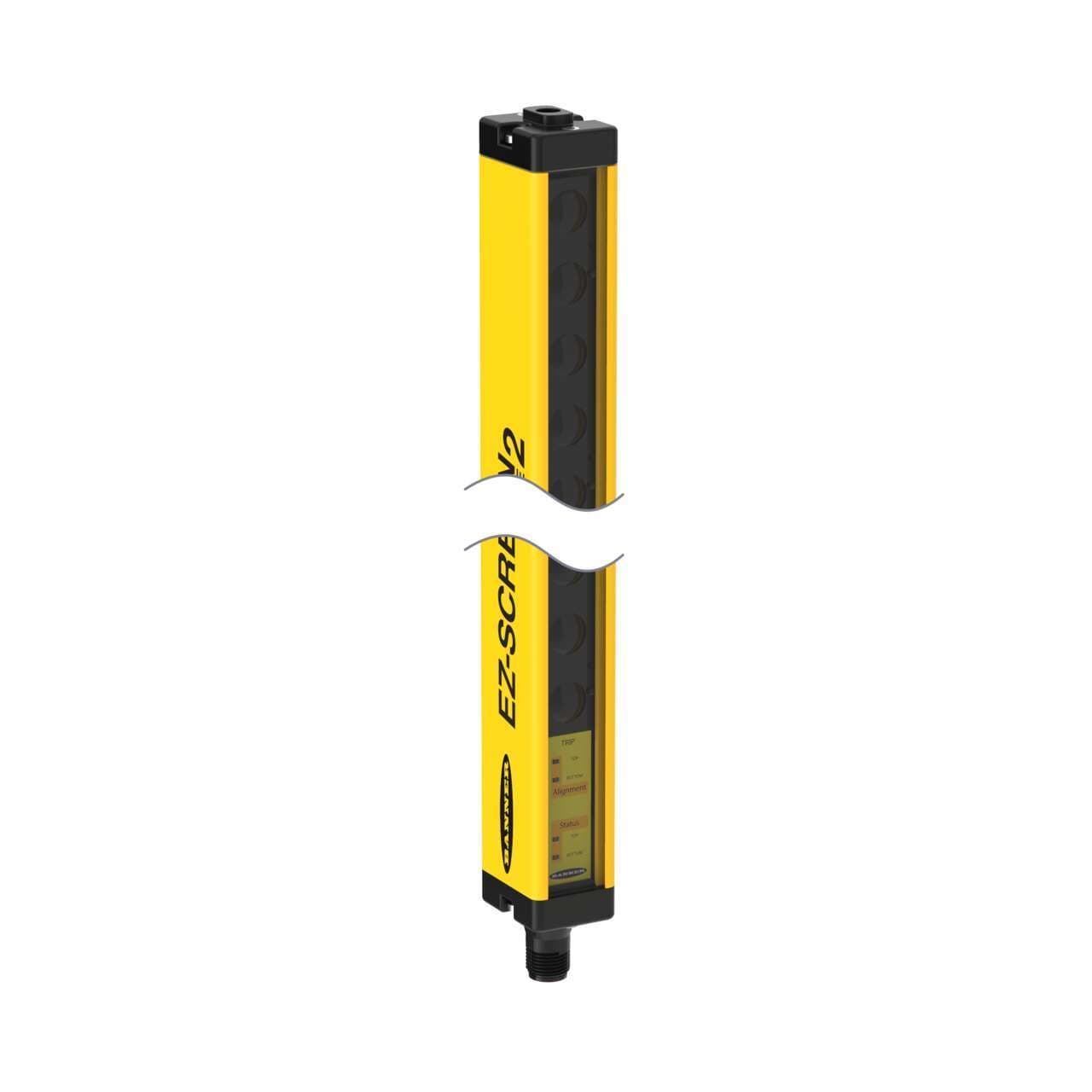

Banner Engineering LS2HDTR30-450Q8 is a safety light curtain designed for hand detection with a protective height of 450mm and a resolution of 30mm. This part of the LS2HD series type 2 light screens functions as a safety light screen/curtain receiver alone, featuring a trip output heavy-duty design. It has a yellow aluminum housing with an acrylic lens and die-cast zinc end caps. The device offers a beam spacing/pitch of 30mm and comes pre-equipped with an 8-pin Euro-style M12 connector for connectivity. It operates on a 24Vdc supply voltage, with a net height of 515mm, width of 34mm, and depth of 35mm. The LS2HDTR30-450Q8 operates within an ambient air temperature range of 0 to +55°C and offers an IP65 degree of protection. It has a sensing distance ranging from 20cm to 15m and includes 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) with a response time of 14ms / 0.014 s.
