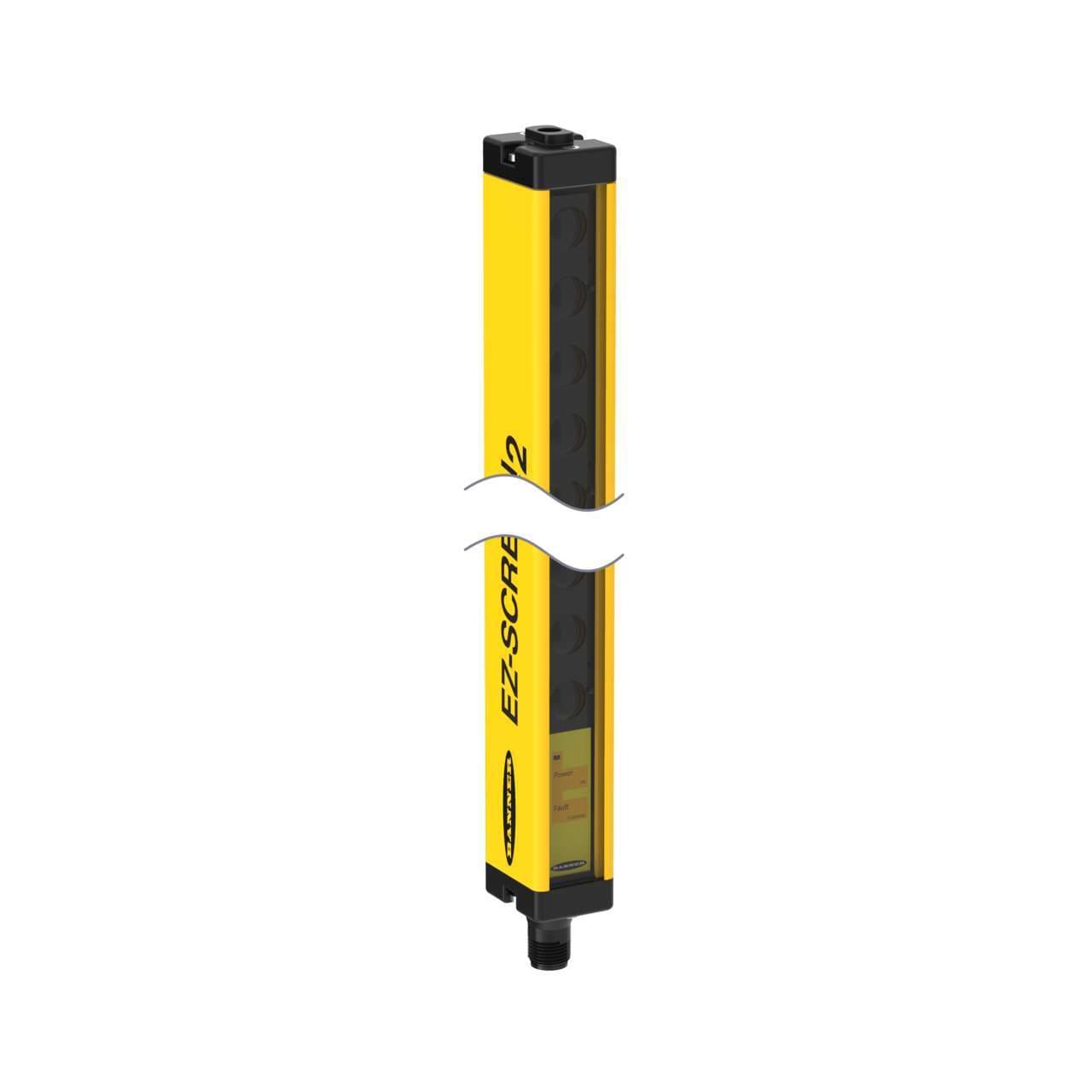

LS2HDVAE30-450Q8 Banner Safety Light Curtains
Part#:LS2HDVAE30-450Q8
Alt. Part#:94436
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
EZ-SCREEN Type 2 Heavy Duty V-series; Emitter; Resolution: 30 mm; Range: 4 m (13 ft); Defined Area: 450 mm (17.7 in); Housing: Yellow; 8-pin M12 Integral QD
Product Details
- Weight 858.0146272 g
- Country Of Origin US
- Dimensions WxD (mm) 33.7 x 34.8
- Recovery Time N/A
- Operating Distance (m) 0.2 - 4
- Fault Output Yes
- Overall Length (mm) 515
- Electrical Safety Class III
- Auxiliary Output No
- Effective Aperture Angle Type 2 Per IEC 61496-2
- Housing Finish Yellow Polyester
- Shock 10g at 16ms (6000 cycles)
- Test Input No
- Number of Pins (Receiver/Emitter) 8
- Defined Area Height (mm) 450
- Connector Type M12
- Reduced Resolution No
- Housing Material Aluminum; Zinc; Acrylic
- low-profile No
- Response Time 14
- Operating Temperature 0 to +55 deg. C; RH 95%
- Short Protection Yes
- OSSD Rating N/A
- Scan Code None
- Trip/Latch Output N/A
- Safety Level Type 2
- IP Rating IP65
- Fixed Blanking No
- Feature: End-to-End Sensing No
- Primary Housing Material Aluminum
- Operating Voltage 24 V dc +/- 20%
- Resolution (mm) 30
- SIL Rating SIL2; CL2
- Supply Current 50 mA max.
- External Monitoring Device No
- PL Rating N/A
- System Type Emitter
- Vibration 10-55 Hz at 0.35 mm
- Feature: ESD Safe No
- Feature: Integral Muting No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LS2HDVAE30-450Q8 on Powermatic Associates is $661.00. Order now.
About the product
Banner Engineering LS2HDVAE30-450Q8 is a safety light curtain within the Type 2 heavy-duty V-series light screens range. This part functions as a safety light screen/curtain emitter alone, designed for heavy-duty applications. It features a protective height of 450mm and is housed in yellow aluminum with an acrylic lens and die-cast zinc end caps. The light curtain offers a beam spacing/pitch of 30mm and comes pre-equipped with an 8-pin Euro-style M12 connector for connectivity. It operates on a 24Vdc supply voltage, with a net height of 515mm, a width of 34mm, and a depth of 35mm. The operating ambient air temperature range is from 0 to +55°C. This part is rated with an IP65 degree of protection, indicating its dust tightness and protection against water jets. It has a sensing distance ranging from 20cm to 4m and includes 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) with a response time of 14ms / 0.014 s. The resolution is set at 30mm for hand detection.
