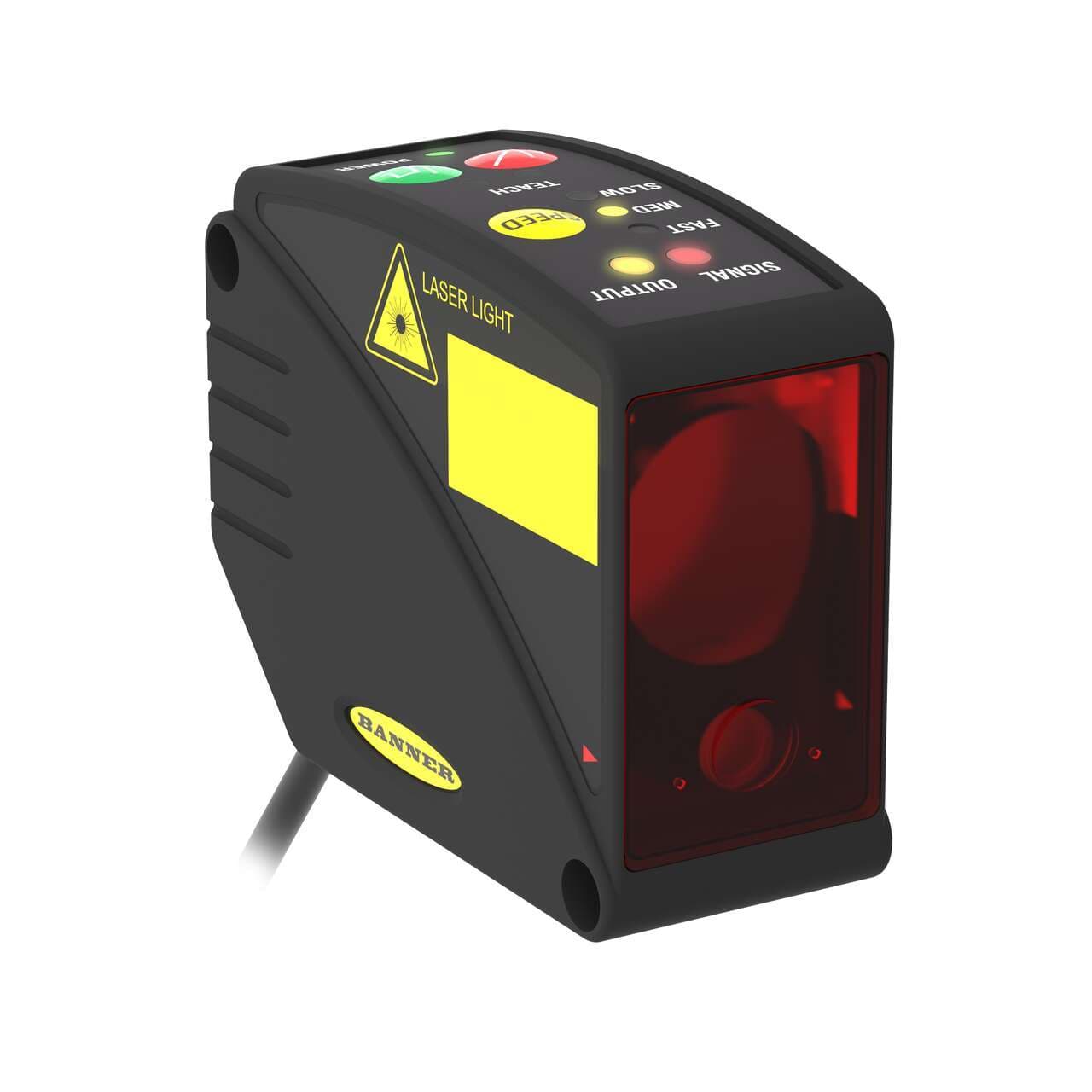

LT3BD Banner Optical Sensors

Product Details

• Weight
  308.44256 g
• Country Of Origin
  US
• Main function
  Sensor (Distance)
• Design
  diffuse time-of-flight system
• Shape
  Rectangular
• Supply voltage (DC)
  12Vdc-24Vdc
• Light Color
  Visible red
• Sub-range name
  LT3BD
• Sensing distance
  30cm...5m
• Digital outputs
  2 x digital outputs (PNP/NPN transistors)
• Primary brand
  Banner Engineering
• Functions
  Class 2 Laser photo-electric distance sensor green LED (power ON) yellow LED (output state) TEACH mode
• Wavelength
  658 nm
• Material
  ABS housing Acrylic window
• Product series / family name
  L-GAGE series
• Connection type
  Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
• Degree of protection
  IP67 NEMA 6
• Order code / Manufacturer SKU
  65517
• Ambient air temperature for operation
  +50 °C
• Protection functions
  Short-circuit
Device Type
Sensor
Analog Resolution/Discrete Repeatability
1 to 1.25 at slow response speed
Output Saturation Voltage NPN Outputs
< 0.2 V at 10 mA; < 0.6 V at 100 mA
Max Op. Relative Humidity Non-Condensing (%)
90 at 50°C
Laser Control
Yes
Common Ethernet Protocol
No
Housing Style
Rectangular
Max Sensing Distance (mm)
5000
Output Protection
Protected against short circuit conditions
Minimum Response Time (ms)
1
Feature: Timing (Hold/Delay)
No
SSI
No
Cable Length (m)
2
Primary Housing Material
ABS
Power Supply
12-24 V dc
IP Rating
IP67
Color Sensitivity (Typical)
90% white to 18% gray: < 10 mm; 90% white to 6% black: < 20 mm
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
RS-422
No
PC Configurable
No
Delay at Power-up (ms)
1000
Output Saturation Voltage PNP Outputs
< 1.2 V at 10 mA; < 1.6 V at 100 mA
Spot Size (@ Reference Distance)
6 mm
Typical Laser Lifetime (Hours)
75000
RS-485
No
Sensing Mode (General)
Proximity
Sensing Beam Wavelength (nm)
658
NEMA Rating
NEMA 6
Remote Teach and Laser Control Input Impedence
18 kΩ min. (65 kΩ min at 5 V dc)
Feature: Chemical Resistant
No
Profibus
No
Power
DC
Laser Classification
Class 2
Minimum Sensing Distance (mm)
300
Max Discrete (Switched) Output (mA)
100
Warm-up Time (minutes)
30
Max Ambient Light (Lux)
5000
IO Link
No
Max Measurement Range
>1 m - <=20 m
Indicator
LED(s)
Adjustments
Push Button; Remote Teach
Discrete (Switched) Outputs
2 NPN/PNP Configurable
Minimum Window Size (mm)
20
Feature: Remote Teach
Yes
Wireless
No
Sensing Beam
Visible Red Laser
Input/Output
Discrete
Quick Disconnect Type
No QD
Number of Pins
8
Window Material
Acrylic
Max Off-state Leakage Current (µA)
5
RS-232
No
Sensing Mode (Detailed)
Time of Flight
Connection
Flying Leads
Temperature Effect (mm/°C)
2 mm/°C
Max Operating Temperature (°C)
50
Discrete Output Hysteresis (mm)
3
Power/Current Consumption (exclusive of load)
108 mA max @ 24 V dc
PROFINET
No
1-wire Serial Interface
No
