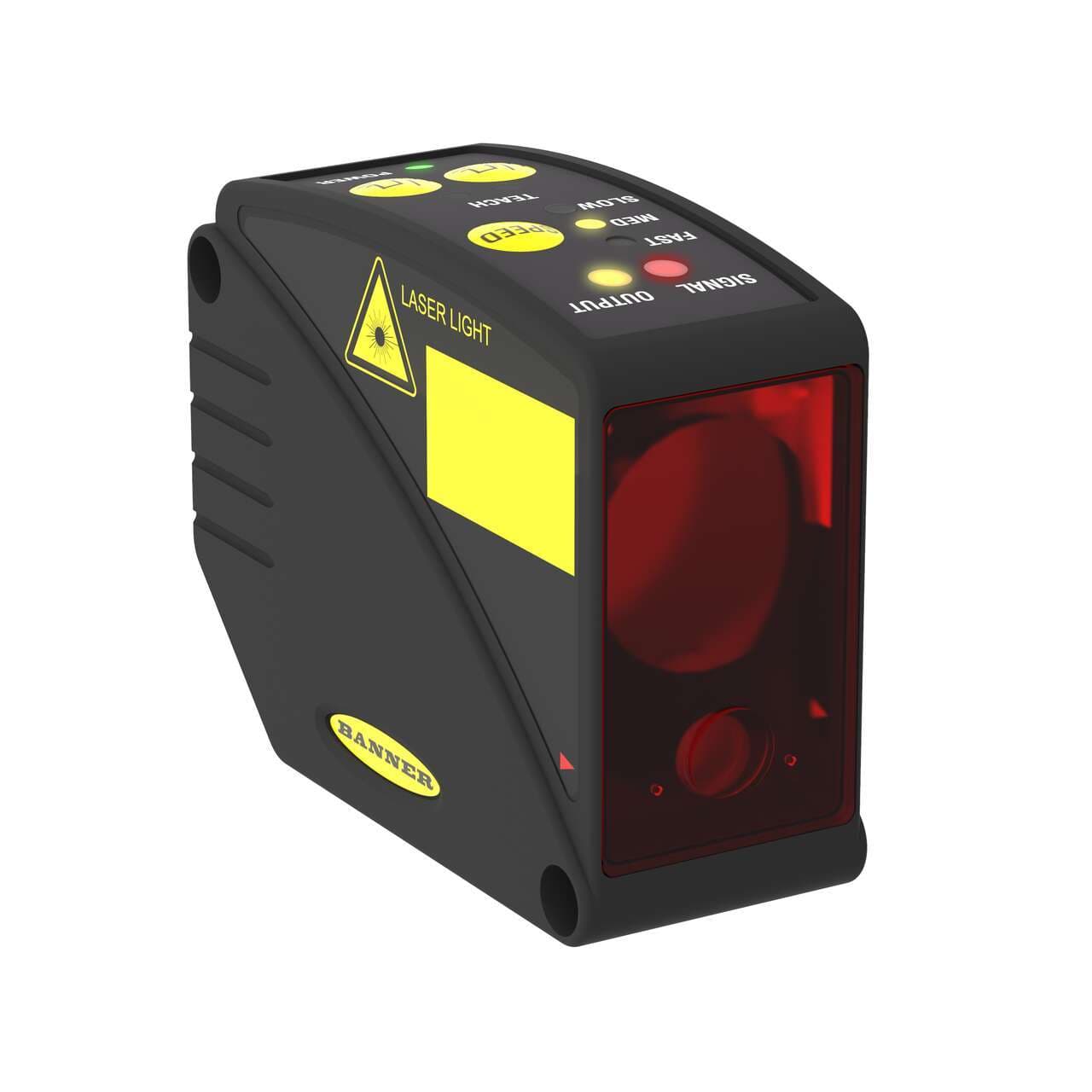

LT3BDQ Banner Optical Sensors

Product Details

• Weight
  190.50864 g
• Country Of Origin
  US
• Sensing distance
  30cm...5m
• Protection functions
  Short-circuit
• Product series / family name
  L-GAGE series
• Design
  diffuse time-of-flight system
• Connection type
  Pre-equipped with 8-pin Euro-style M12 connector
• Ambient air temperature for operation
  +50 °C
• Sub-range name
  LT3BD
• Light Color
  Visible red
• Digital outputs
  2 x digital outputs (PNP/NPN transistors)
• Primary brand
  Banner Engineering
• Supply voltage (DC)
  12Vdc-24Vdc
• Wavelength
  658 nm
• Degree of protection
  IP67 NEMA 6
• Shape
  Rectangular
• Material
  ABS housing Acrylic window
• Order code / Manufacturer SKU
  65516
• Main function
  Sensor (Distance)
• Functions
  Class 2 Laser photo-electric distance sensor green LED (power ON) yellow LED (output state) TEACH mode
Primary Housing Material
ABS
Analog Resolution/Discrete Repeatability
1 to 1.25 at slow response speed
Output Saturation Voltage NPN Outputs
< 0.2 V at 10 mA; < 0.6 V at 100 mA
Window Material
Acrylic
Max Ambient Light (Lux)
5000
IO Link
No
Max Sensing Distance (mm)
5000
Output Saturation Voltage PNP Outputs
< 1.2 V at 10 mA; < 1.6 V at 100 mA
Warm-up Time (minutes)
30
RS-232
No
Housing Style
Rectangular
Quick Disconnect Type
M12 (Euro)
Temperature Effect (mm/°C)
2 mm/°C
Max Operating Temperature (°C)
50
Discrete Output Hysteresis (mm)
3
Device Type
Sensor
Delay at Power-up (ms)
1000
Discrete (Switched) Outputs
2 NPN/PNP Configurable
Sensing Beam
Visible Red Laser
Connection
Integral QD
Max Discrete (Switched) Output (mA)
100
Minimum Response Time (ms)
1
Max Off-state Leakage Current (µA)
5
RS-485
No
Sensing Mode (General)
Proximity
Minimum Sensing Distance (mm)
300
Number of Pins
8
Max Op. Relative Humidity Non-Condensing (%)
90 at 50°C
Laser Control
Yes
Power
DC
Input/Output
Discrete
Adjustments
Push Button; Remote Teach
IP Rating
IP67
Spot Size (@ Reference Distance)
6 mm
Typical Laser Lifetime (Hours)
75000
SSI
No
PC Configurable
No
Laser Classification
Class 2
Sensing Beam Wavelength (nm)
658
NEMA Rating
NEMA 6
Remote Teach and Laser Control Input Impedence
18 kΩ min. (65 kΩ min at 5 V dc)
Feature: Timing (Hold/Delay)
No
Wireless
No
Indicator
LED(s)
Feature: Chemical Resistant
No
Profibus
No
Color Sensitivity (Typical)
90% white to 18% gray: < 10 mm; 90% white to 6% black: < 20 mm
Power/Current Consumption (exclusive of load)
108 mA max @ 24 V dc
RS-422
No
Output Protection
Protected against short circuit conditions
PROFINET
No
Feature: Remote Teach
Yes
Sensing Mode (Detailed)
Time of Flight
Power Supply
12-24 V dc
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
Common Ethernet Protocol
No
1-wire Serial Interface
No
Max Measurement Range
>1 m - <=20 m
Minimum Window Size (mm)
20
