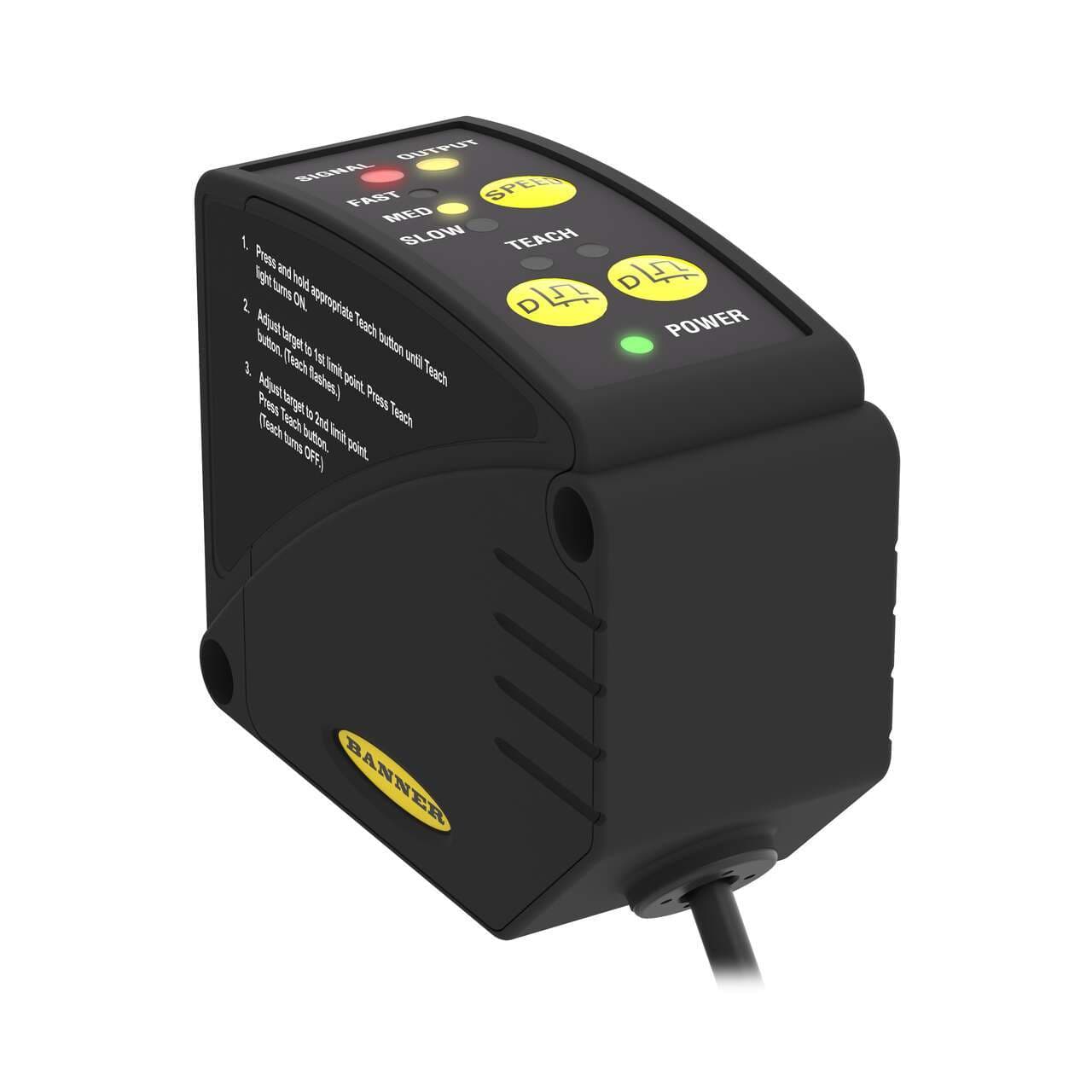

LT3BDLV Banner Optical Sensors

Product Details

• Weight
  399.16096 g
• Country Of Origin
  US
• Cable Length (m)
  2
• Connection
  Flying Leads
• Number of Pins
  8
• Minimum Response Time (ms)
  1
• Laser Classification
  Class 1
• Delay at Power-up (ms)
  1000
• IP Rating
  IP67
• Remote Teach and Laser Control Input Impedence
  18 kΩ min. (65 kΩ min at 5 V dc)
• Common Ethernet Protocol
  No
• 1-wire Serial Interface
  No
• Sensing Mode (General)
  Retroreflective
• Power Supply
  12-24 V dc
• Output Saturation Voltage PNP Outputs
  < 1.2 V at 10 mA; < 1.6 V at 100 mA
• Spot Size (@ Reference Distance)
  6 mm
• Feature: Timing (Hold/Delay)
  No
• Wireless
  No
• Max Measurement Range
  >20 m
• Input/Output
  Discrete
Adjustments
Push Button; Remote Teach
Window Material
Acrylic
Max Ambient Light (Lux)
5000
PROFINET
No
Housing Style
Rectangular
Minimum Sensing Distance (mm)
500
Output Saturation Voltage NPN Outputs
< 0.2 V at 10 mA; < 0.6 V at 100 mA
Warm-up Time (minutes)
30
Feature: Remote Teach
Yes
Profibus
No
Power
DC
Indicator
LED(s)
Temperature Effect (mm/°C)
3 mm/°C
Max Operating Temperature (°C)
50
Power/Current Consumption (exclusive of load)
108 mA max @ 24 V dc
RS-232
No
PC Configurable
No
Quick Disconnect Type
No QD
Max Discrete (Switched) Output (mA)
100
Max Op. Relative Humidity Non-Condensing (%)
90 at 50°C
Max Off-state Leakage Current (µA)
5
RS-422
No
Device Type
Sensor
Max Sensing Distance (mm)
50000
Discrete (Switched) Outputs
2 NPN/PNP Configurable
Minimum Window Size (mm)
40
Typical Laser Lifetime (Hours)
75000
RS-485
No
Sensing Mode (Detailed)
Time of Flight
Analog Resolution/Discrete Repeatability
5 to 6 at slow response speed
Output Protection
Protected against short circuit conditions
Discrete Output Hysteresis (mm)
6
Feature: Chemical Resistant
No
Primary Housing Material
ABS
Sensing Beam
Visible Red Laser
Sensing Beam Wavelength (nm)
658
NEMA Rating
NEMA 6
Laser Control
Yes
IO Link
No
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
SSI
No
