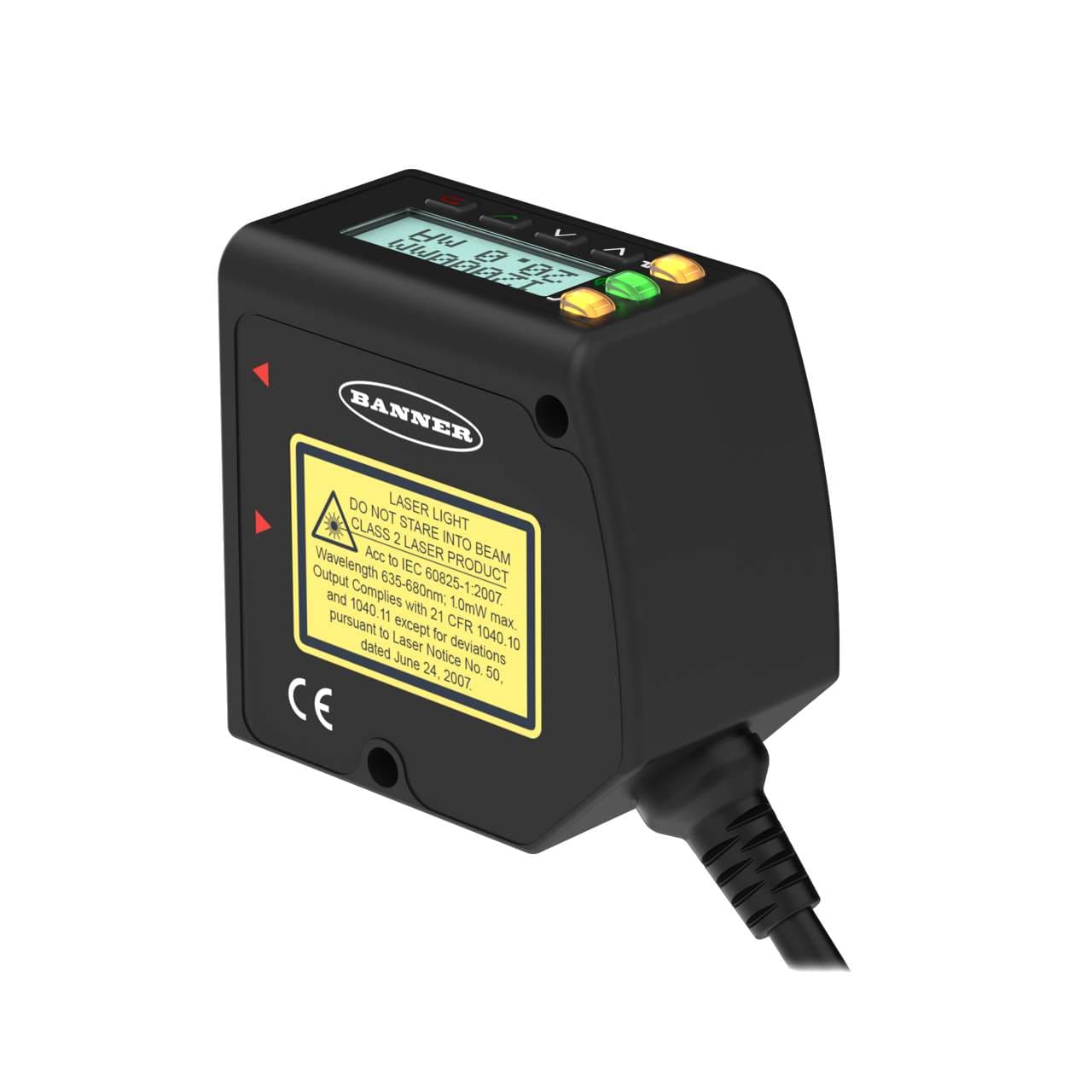

LTF12IC2LDQP Banner Optical Sensors

Product Details

• Weight
  408.2328 g
• Country Of Origin
  US
• Product series / family name
  L-GAGE series
• Sub-range name
  LTF
• Main function
  Sensor (Distance)
• Display
  LCD 2 lines x 8 characters
• Shape
  Rectangular
• Order code / Manufacturer SKU
  94850
• Primary brand
  Banner Engineering
• Supply voltage (DC)
  12Vdc-30Vdc (24Vdc nom.)
• Sensing distance
  5cm...12m
• Digital outputs
  1 x digital output (PNP/NPN transistor)
• Connection type
  Pre-wired with 6" / 150mm pigtail terminated with 5-pin Euro-style M12 connector
• Functions
  Class 2 Laser photo-electric distance sensor/transmitter green LED (power ON) yellow LED (analog output ON) yellow LED (discrete output ON) TEACH mode
• Wavelength
  660 nm
• Material
  Die-cast Zinc alloy housing Acrylic window
• Compliant with standard(s)
  cULus CE
• Design
  diffuse time-of-flight system
• Degree of protection
  IP67 NEMA 6
• Light Color
  Visible class 2 red Laser
Analog outputs
1 x analog output (4-20mA)
Ambient air temperature for operation
-20...+55 °C
Protection functions
Overload Short-circuit
Sensing Mode (General)
Proximity
Analog Resolution/Discrete Repeatability
1
Housing Style
Rectangular
Max Sensing Distance (mm)
12000
Max Operating Temperature (°C)
55
Max Measurement Range
>1 m - <=20 m
Input/Output
Analog & Discrete
PC Configurable
No
Indicator
Display; LED(s)
Temperature Effect (mm/°C)
0.25mm/C (typical)
Primary Housing Material
Zinc Alloy Die-Cast
Power Supply
12-30 V dc
Sensing Mode (Detailed)
Time of Flight
Connection
Pigtail QD
Device Type
Sensor
Minimum Sensing Distance (mm)
50
Power
DC
Analog Output Configuration
4-20 mA
Cable Length (m)
0.15
Quick Disconnect Type
M12 (Euro)
Vibration
MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Sensing Beam
Visible Red Laser
Laser Classification
Class 2
Delay at Power-up (ms)
2000
Max Discrete (Switched) Output (mA)
100
Window Material
Acrylic
Max Off-state Leakage Current (µA)
PNP <10µA at 30V, NPN <200µa at 30V
PROFINET
No
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Storage Temperature (°C)
-30 to 65
Analog Current Output Rating
1 kΩ max @24 V dc, max load resistance = [(Vcc-4.5 V)/0.02 A] Ω
Warm-up Time (minutes)
15
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
Output Saturation Voltage NPN Outputs
< 1.6V @ 100ma
Laser Control
Yes
IO Link
No
Wireless
No
Output Saturation Voltage PNP Outputs
< 3V @ 100ma
IP Rating
IP67
Discrete Output Hysteresis (mm)
Automatically adjusted
Feature: Timing (Hold/Delay)
Yes
RS-232
No
Number of Pins
5
Output Protection
Protected against continuous overload and short circuit
Analog Linearity (mm)
+/- 10
Max Ambient Light (Lux)
40000
Adjustments
Push Button; Remote Teach
NEMA Rating
NEMA 6
Max Op. Relative Humidity Non-Condensing (%)
90 at 55°C
Minimum Window Size (mm)
10
Feature: Chemical Resistant
No
SSI
No
Discrete (Switched) Outputs
1 NPN/PNP Configurable
Typical Laser Lifetime (Hours)
60000
RS-422
No
Min Operating Temperature (°C)
-20
Minimum Response Time (ms)
1.5
Profibus
No
Alarm Output (mA)
100
Feature: Remote Teach
Yes
RS-485
No
Sensing Beam Wavelength (nm)
660
Spot Size (@ Reference Distance)
6.5 mm at 50 mm, 12.5 mm at 12000 mm
Power/Current Consumption (exclusive of load)
<85 mA @ 24 V (< 2.1 W)
Feature: Health/ Marginal Signal Output
Yes
Common Ethernet Protocol
No
1-wire Serial Interface
No
