Part#:M18-4VNFF200-2M

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

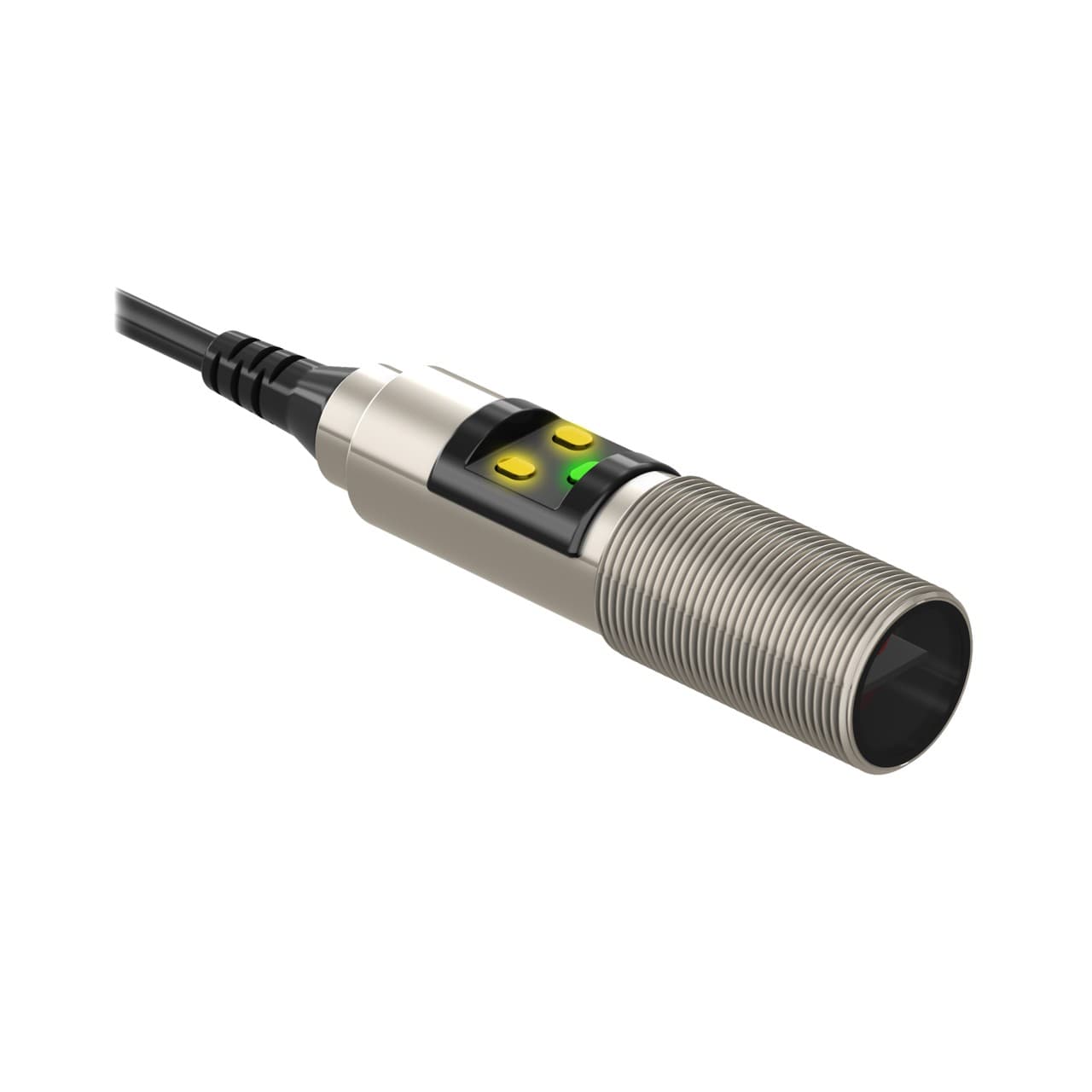

Fixed-field photo-electric sensor with background / foreground suppression system - Banner Engineering (M18 barrel series - M18-3 (stainless steel)) - Part #800609 - Sensing range 200mm - Visible red light (624nm) - 1 x digital output (NPN transistor) (Li

Product Details

  • IO Link
    No
  • Feature: Health/ Marginal Signal Output
    Yes
  • DeviceNet
    No
  • Feature: Chemical Resistant
    Yes
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Feature: Encapsulated
    No
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Washdown Rated
    Yes
  • Indicator
    LEDs
  • Opposed Mode Emitter/Receiver
    N/A
  • Barrel Diameter (mm)
    18
  • Adjustments
    N/A
  • Lens Material
    Acrylic
  • Max Op. Relative Humidity [%]
    95% @ 50°C
  • NEMA Rating
    N/A
  • IP Rating
    IP67, IP69
  • Number of Pins
    4
  • Quick Disconnect Type
    No QD
  • Delay at Power-up (ms)
    100
  • Repeatability (µs)
    100
  • Special Feature: Intrinsically Safe
    No
  • Special Feature: Water Detection
    No
  • Sensing Beam Wavelength
    624
  • Special Feature: Remote Teach
    No
  • Output response time (ms)
    1.5
  • Min Op. Temp. (°C)
    -40
  • Operation
    Light/Dark Operate
  • Max Op. Temp. (°C)
    70
  • Connection
    Cable
  • Max Sensing Distance (mm)
    200
  • Power Supply/Supply Voltage
    10-30 V dc
  • Sensing Mode (Detailed)
    Background Suppression (Fixed)
  • Outputs
    NPN
  • Primary Housing Material
    Stainless Steel
  • Sensing Beam
    Visible Red LED
  • Input/Output
    Discrete
  • Small Visible Spot
    LED
  • Housing Style
    Barrel
  • Sensing Mode (General)
    Proximity
  • Power
    DC
  • Cable Length (m)
    2
  • Product series / family name
    M18 barrel series
  • Sensing distance
    200mm
  • Thread size
    M18
  • Design
    background / foreground suppression system
  • Connection type
    Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
  • Digital outputs
    1 x digital output (NPN transistor)
  • Material
    Stainless steel housing Acrylic lns.
  • Main function
    Sensor (Photo-electric)
  • Sub-range name
    M18-3 (stainless steel)
  • Light Color
    Visible red
  • Response time
    1.5ms / 0.0015 s
  • Compliant with standard(s)
    cULus CE
  • Primary brand
    Banner Engineering
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Wavelength
    624 nm
  • Degree of protection
    IP67 IP69K
  • Order code / Manufacturer SKU
    800609
  • Functions
    Fixed-field photo-electric sensor green LED (power ON) 2 x yellow LED (output conducting)
  • Shape
    Cylindrical threaded/barrel
  • Operating mode
    Light-ON Dark-ON
  • Equivalent to
    M184VNFF2002M
  • Ambient air temperature for operation
    -40...+70 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
