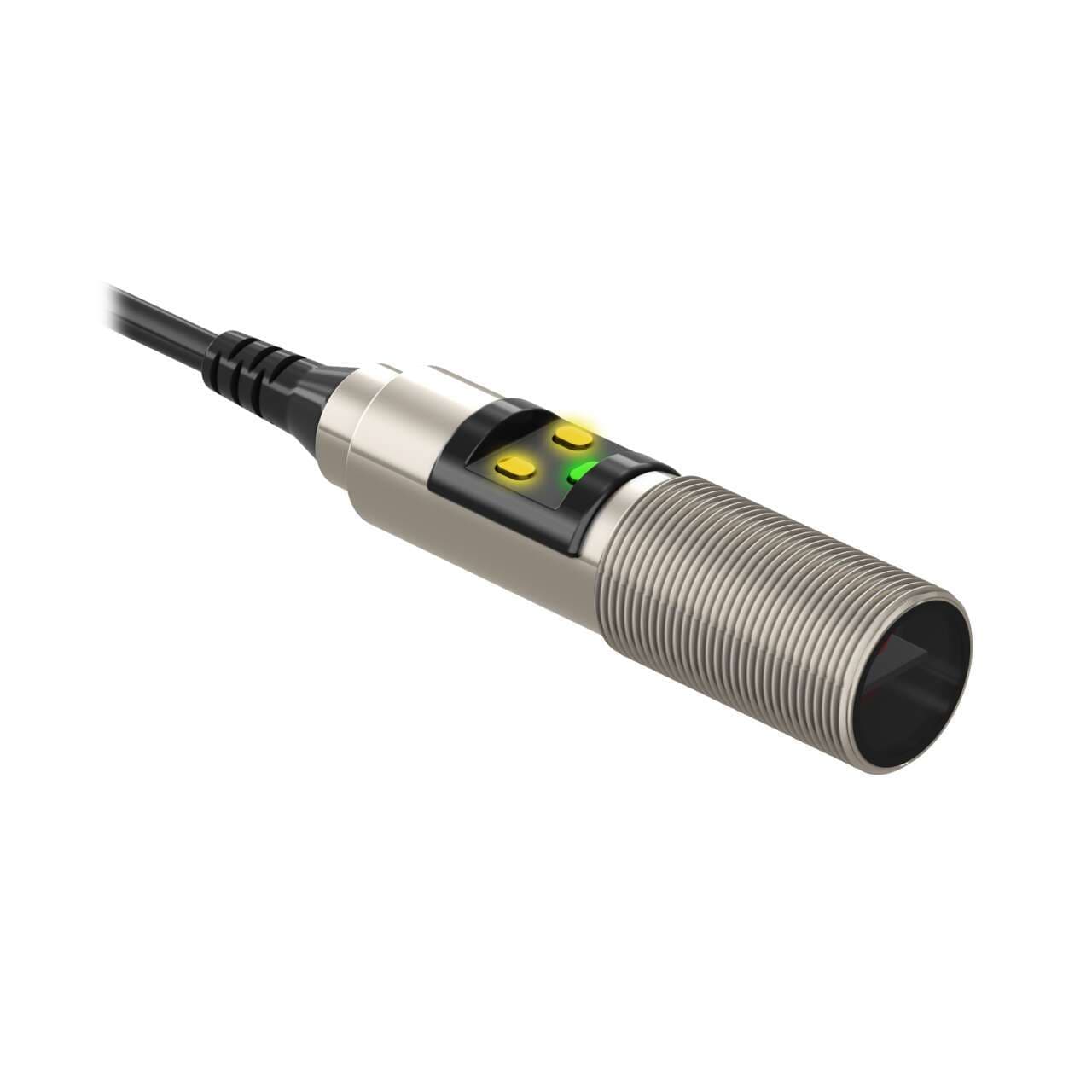

M18-4VPFF150-Q5 Banner Proximity Sensors
Part#:M18-4VPFF150-Q5
Alt. Part#:800608
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
M18-4 Series: Stainless: Fixed Field; Range: 150 mm; Input 10-30 V dc; Outputs: Complementary PNP; 150 mm (6 in) 4-pin M12 PVC Pigtail QD
Product Details
- Weight 22.6796 g
- Country Of Origin CN
- Design background / foreground suppression system
- Material Stainless steel housing Acrylic lns. PVC (connector)
- Functions Fixed-field photo-electric sensor green LED (power ON) 2 x yellow LED (output conducting)
- Wavelength 624 nm
- Response time 1.5ms / 0.0015 s
- Order code / Manufacturer SKU 800608
- Product series / family name M18 barrel series
- Sensing distance 150mm
- Ambient air temperature for operation -40...+70 °C
- Sub-range name M18-3 (stainless steel)
- Light Color Visible red
- Shape Cylindrical threaded/barrel
- Degree of protection IP67 IP69K
- Equivalent to M184VPFF150Q5
- Thread size M18
- Operating mode Light-ON Dark-ON
- Compliant with standard(s) cULus CE
- Main function Sensor (Photo-electric)
- Digital outputs 1 x digital output (PNP transistor)
- Primary brand Banner Engineering
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
- Sensing Beam Visible Red LED
- Connection Pigtail QD
- Special Feature: Water Detection No
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach No
- Input/Output Discrete
- Quick Disconnect Type M12 (Euro)
- Sensing Beam Wavelength 624
- Opposed Mode Emitter/Receiver N/A
- Max Sensing Distance (mm) 150
- Min Op. Temp. (°C) -40
- Lens Material Acrylic
- Feature: Audible No
- Primary Housing Material Stainless Steel
- Outputs PNP
- Indicator LEDs
- Feature: Health/ Marginal Signal Output Yes
- Housing Style Barrel
- Max Op. Temp. (°C) 70
- Repeatability (µs) 100
- Adjustments N/A
- Sensing Mode (General) Proximity
- Output response time (ms) 1.5
- Number of Pins 4
- Feature: Timing (Hold/Delay) No
- Power DC
- Operation Light/Dark Operate
- Delay at Power-up (ms) 100
- Feature: Washdown Rated Yes
- Small Visible Spot LED
- Special Feature: Intrinsically Safe No
- NEMA Rating N/A
- DeviceNet No
- Feature: Chemical Resistant Yes
- IP Rating IP67, IP69
- IO Link No
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Hazardous Area No
- Barrel Diameter (mm) 18
- Feature: Ecolab Certified Yes
- Feature: Encapsulated No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of M18-4VPFF150-Q5 on Powermatic Associates is $146.00. Order now.
About the product
Banner Engineering M18-4VPFF150-Q5 is a fixed-field photo-electric sensor from the M18-3 (stainless steel) series designed with a background/foreground suppression system. It features a visible red light with a wavelength of 624 nm and is housed in a stainless steel casing with an acrylic lens and a PVC connector. This sensor is shaped in an M18 cylindrical threaded/barrel form and comes pre-wired with a 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector. It operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and can function within an ambient air temperature range of -40 to +70°C. The M18-4VPFF150-Q5 offers a sensing distance of 150mm and includes 1 x digital output (PNP transistor; complementary NO/NC) with a response time of 1.5ms / 0.0015 s. It is designed for both Light-ON and Dark-ON operating modes and provides a degree of protection rated at IP67 and IP69K.
