MAQDC-8125 Banner Cordsets
Product Details
- Weight 1859.7272 g
- Country Of Origin US
- Connector Body Material/Color PUR Black
- Coupling Material/Color Nickel Plated Brass
- Primary Number of Conductors 8
- Primary AWG 24
- Cable Jacket Color Black
- Current Rating (A) 2.0
- Secondary Connector Type Flying Leads
- Number of Contacts 8
- Maximum Temp. (°C) 105
- Primary Gender Female
- Shield/No Shield Shield
- Primary Coupling Method M12 Single Key
- Oil/Grease Resistant No
- Cordset Length (m) 38.1
- IP Rating IP67
- Trunk Length (m) No Trunk
- Minimum Temp. (°C) -40
- Cable Jacket Material PVC
- Primary Connector Type EURO
- Outside Cable Diameter (mm) 5.6
- Voltage Rating (V) 75 V ac/dc
- Primary Orientation Straight
- Number of Connectors 1
- Shield Type Open
- Feature: Hazardous Area No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MAQDC-8125 on Powermatic Associates is $307.00. Order now.
About the product

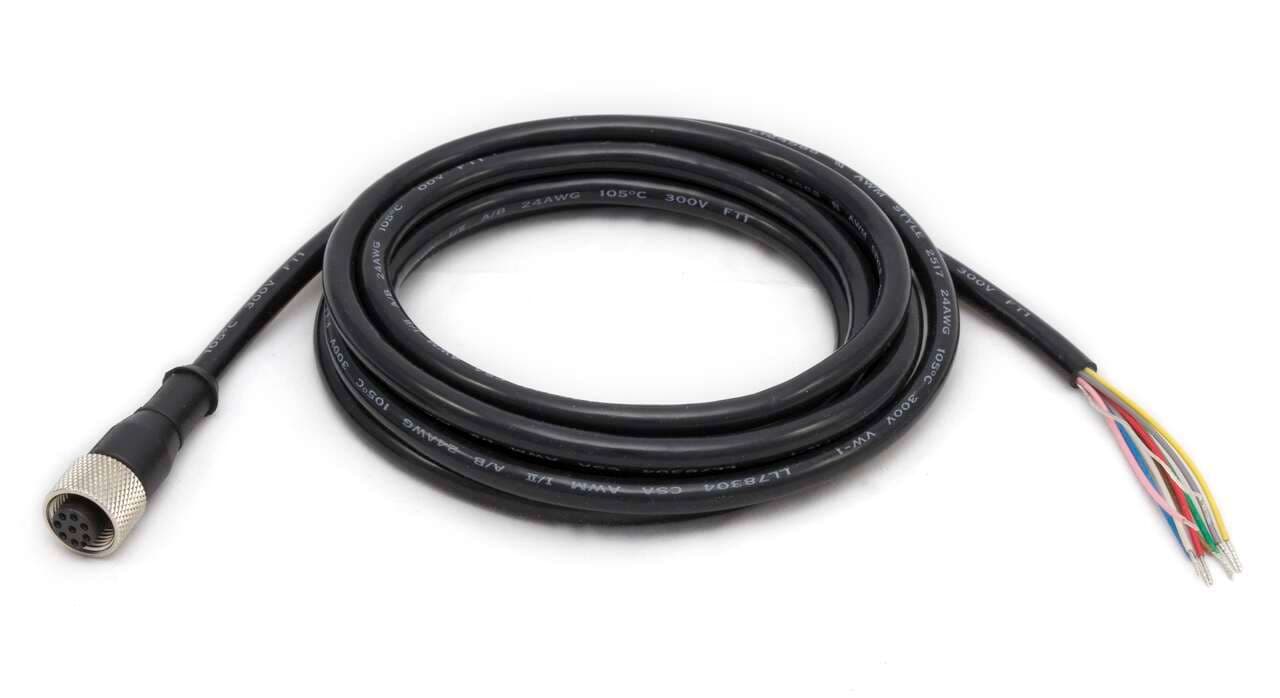

Banner Engineering MAQDC-8125 is a pre-assembled, single-ended cable featuring black PVC sheathing designed for various automation applications. This cordset measures 125ft (38m) in length and is equipped with an 8-pin Euro-style M12 female connector on one end and bare end flying leads on the other, facilitating easy integration into existing systems. The cable has a diameter of 5.6mm and is rated for a voltage of 75Vdc. It is built to operate within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP67, ensuring its suitability for use in environments requiring dust and water ingress protection.
