MAQDC-830 Banner Cordsets
Product Details
- Weight 508.02304 g
- Country Of Origin TW
- Shield/No Shield Shield
- Primary Coupling Method M12 Single Key
- Number of Connectors 1
- Coupling Material/Color Nickel Plated Brass
- Primary Orientation Straight
- Cable Jacket Color Black
- Current Rating (A) 2.0
- Primary Number of Conductors 8
- Number of Contacts 8
- Secondary Connector Type Flying Leads
- Cordset Length (m) 9.14
- Voltage Rating (V) 75 V ac/dc
- Feature: Hazardous Area No
- Trunk Length (m) No Trunk
- IP Rating IP67
- Shield Type Open
- Primary Gender Female
- Connector Body Material/Color PUR Black
- Maximum Temp. (°C) 105
- Primary AWG 24
- Outside Cable Diameter (mm) 5.6
- Minimum Temp. (°C) -40
- Oil/Grease Resistant No
- Cable Jacket Material PVC
- Primary Connector Type EURO
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MAQDC-830 on Powermatic Associates is $97.00. Order now.
About the product

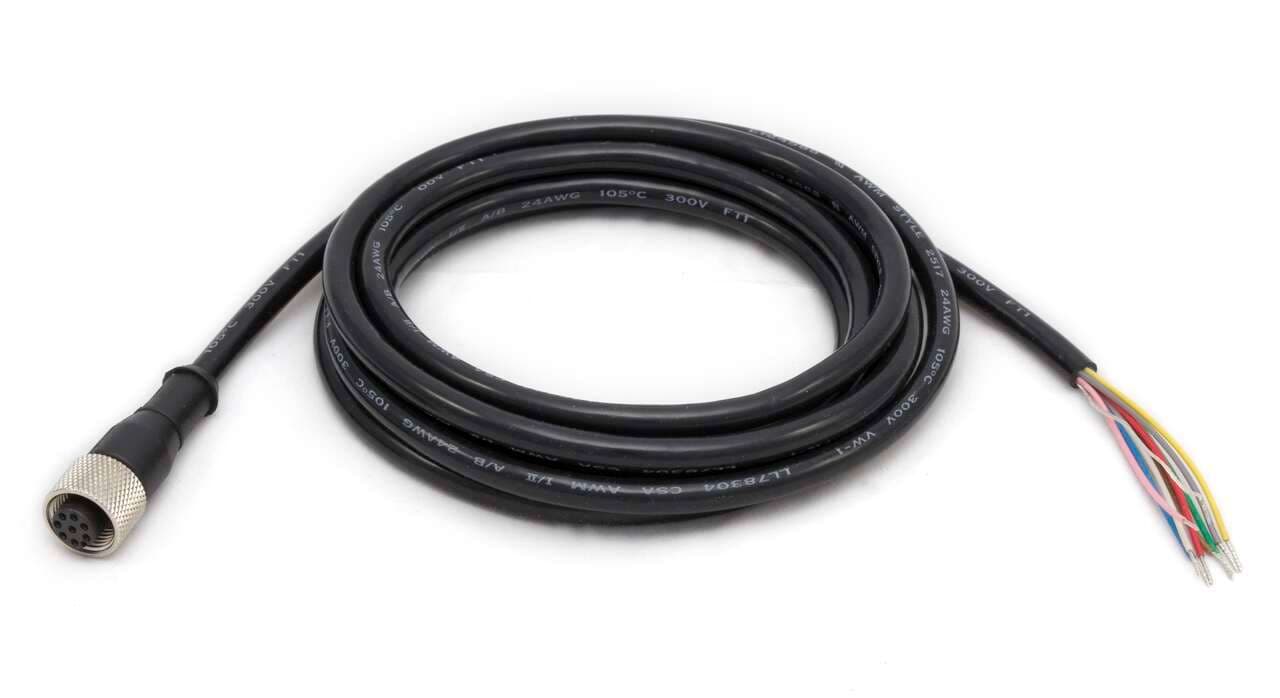

Banner Engineering MAQDC-830 is a pre-assembled cable/cordset designed with a single-ended configuration. It features black sheathing made from PVC material and measures 30ft (9.14m) in length. This cable is equipped with an 8-pin Euro-style M12 female connector and bare end flying leads. It has a rated voltage of 75Vdc and a cable diameter of 5.6mm. The MAQDC-830 is designed to operate within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP67.
