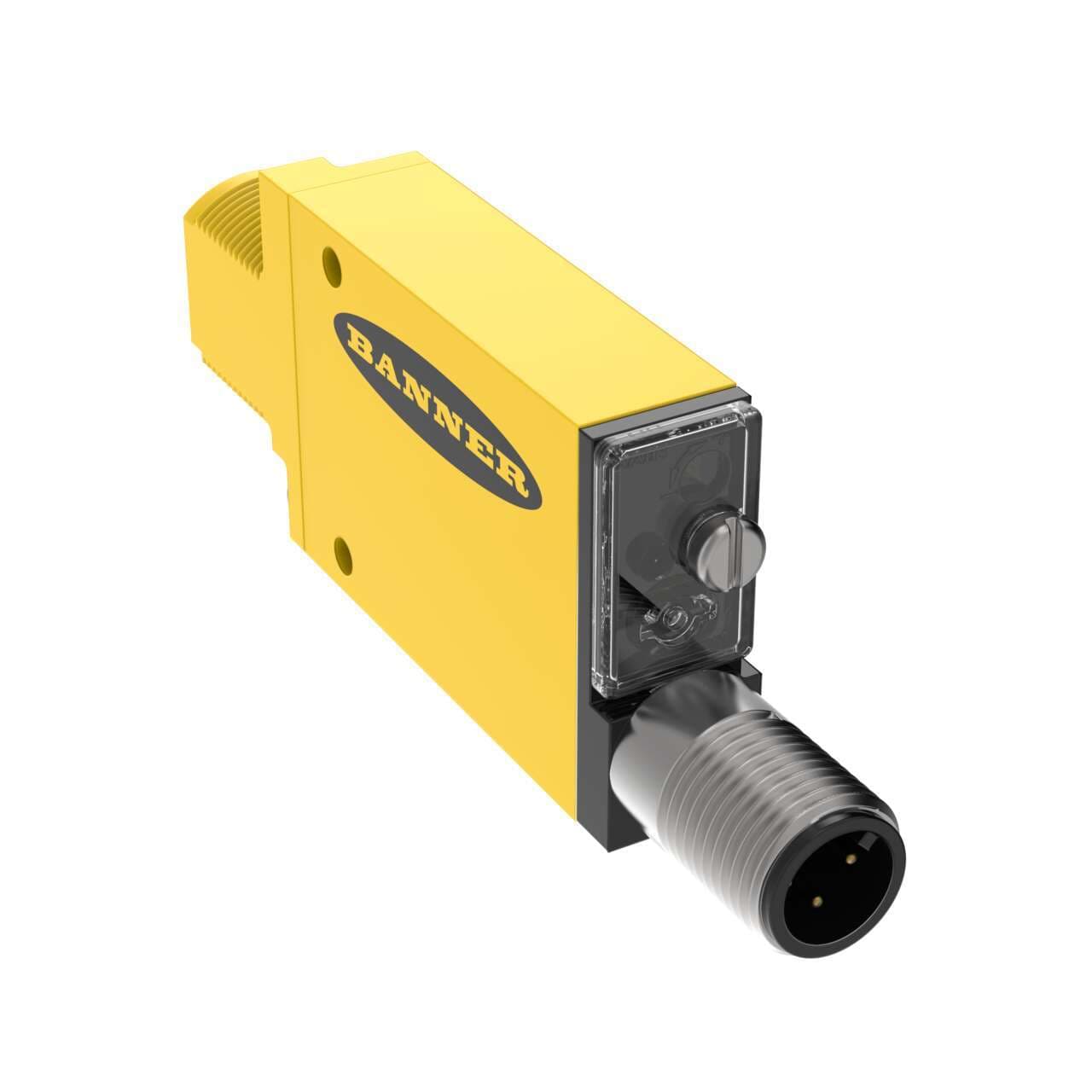

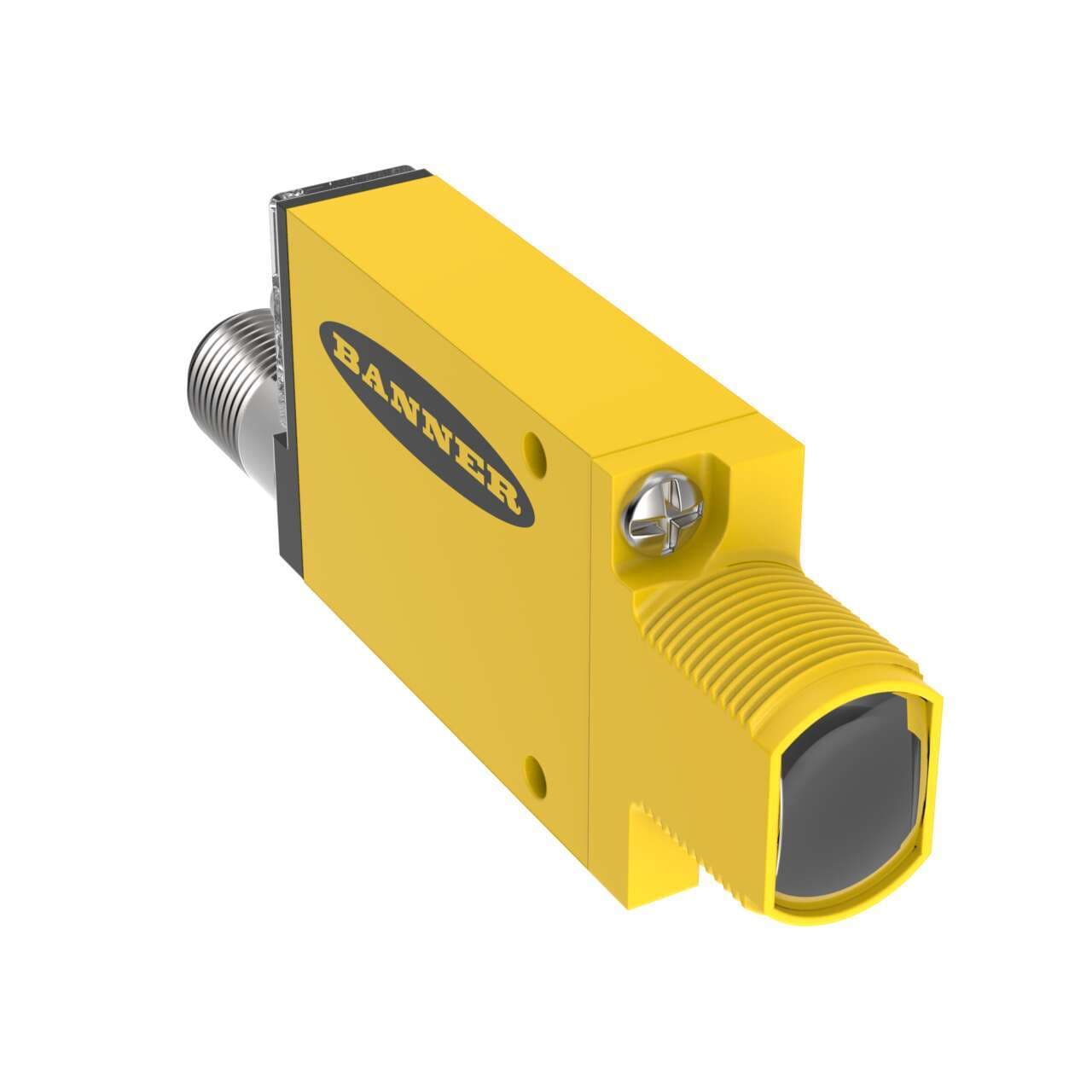

MIAD9RQ Banner Proximity Sensors
Part#:MIAD9RQ
Alt. Part#:40146
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
MINI-BEAM NAMUR: Receiver; Range: 6 m; Input: 5-15 V dc; Output: NAMUR; 4-pin M12 Integral QD
Product Details
- Weight 63.50288 g
- Country Of Origin US
- Design through-beam system / opposed mode
- Main function Sensor (Photo-electric)
- Functions Photo-electric sensor receiver red LED (power ON) potentiometer adjustment
- Primary brand Banner Engineering
- Sub-range name MIAD9 NAMUR
- Sensing distance 6m
- Light Color Infrared (IR)
- Ambient air temperature for operation -40...+70 °C
- Product series / family name MINI-BEAM series
- Thread size M18
- Operating mode Light-ON Dark-ON
- Material thermoplastic housing Acrylic lns.
- Supply voltage (DC) 5Vdc-15Vdc (12Vdc nom.)
- Shape Rectangular
- Response time 2ms / 0.002 s
- Order code / Manufacturer SKU 40146
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Degree of protection IP67 NEMA 1 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 12 NEMA 13
- Compliant with standard(s) ATEX FM cCSAus CE
- Mounting mode Threaded mount
- Digital outputs 1 x digital output (NAMUR)
- Sensing Mode (General) Opposed
- Operation Light/Dark Operate
- Special Feature: Water Detection No
- Opposed Mode Emitter/Receiver Receiver
- DeviceNet No
- Primary Housing Material Thermoplastic
- Outputs Constant Current
- Special Feature: Remote Teach No
- IP Rating IP67
- Housing Style Rectangular w/M18 Mount
- Connection Integral QD
- Delay at Power-up (ms) N/A
- Lens Material Acrylic
- IO Link No
- Max Sensing Distance (mm) 6000
- Power DC
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13
- Feature: Timing (Hold/Delay) No
- Sensing Beam Infrared LED
- Quick Disconnect Type M12 (Euro)
- Number of Pins 4
- Barrel Diameter (mm) 18
- Feature: Hazardous Area Yes
- Input/Output Discrete
- Special Feature: Intrinsically Safe Yes
- Output response time (ms) 2 ON/0.4 OFF
- Indicator LEDs
- Feature: Audible No
- Power Supply/Supply Voltage 5-15 V dc
- Max Op. Temp. (°C) 70
- Repeatability (µs) N/A
- Adjustments Potentiometer
- Feature: Chemical Resistant No
- Sensing Mode (Detailed) Receiver
- Min Op. Temp. (°C) -40
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Encapsulated Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MIAD9RQ on Powermatic Associates is $155.00. Order now.
About the product
Banner Engineering MIAD9RQ is a photo-electric sensor designed for precise detection tasks, featuring a receiver alone configuration. It employs a through-beam system with opposed mode potentiometer adjustment for fine-tuning. This sensor is mounted using an M18 threaded mount and is suitable for operation in ambient air temperatures ranging from -40 to +70°C. It is pre-equipped with a 4-pin Euro-style M12 connector for easy integration. Part of the MIAD9 NAMUR series, it boasts a high degree of protection rated at IP67, NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, and 13, ensuring durability in various environmental conditions. The sensor operates on a supply voltage of 5Vdc to 15Vdc, with a nominal 12Vdc, and is housed in a thermoplastic casing with an acrylic lens. It offers a sensing distance of up to 6 meters and utilizes infrared light for detection. The operating modes include Light-ON and Dark-ON, with a single digital output (NAMUR) and a rapid response time of 2ms.
