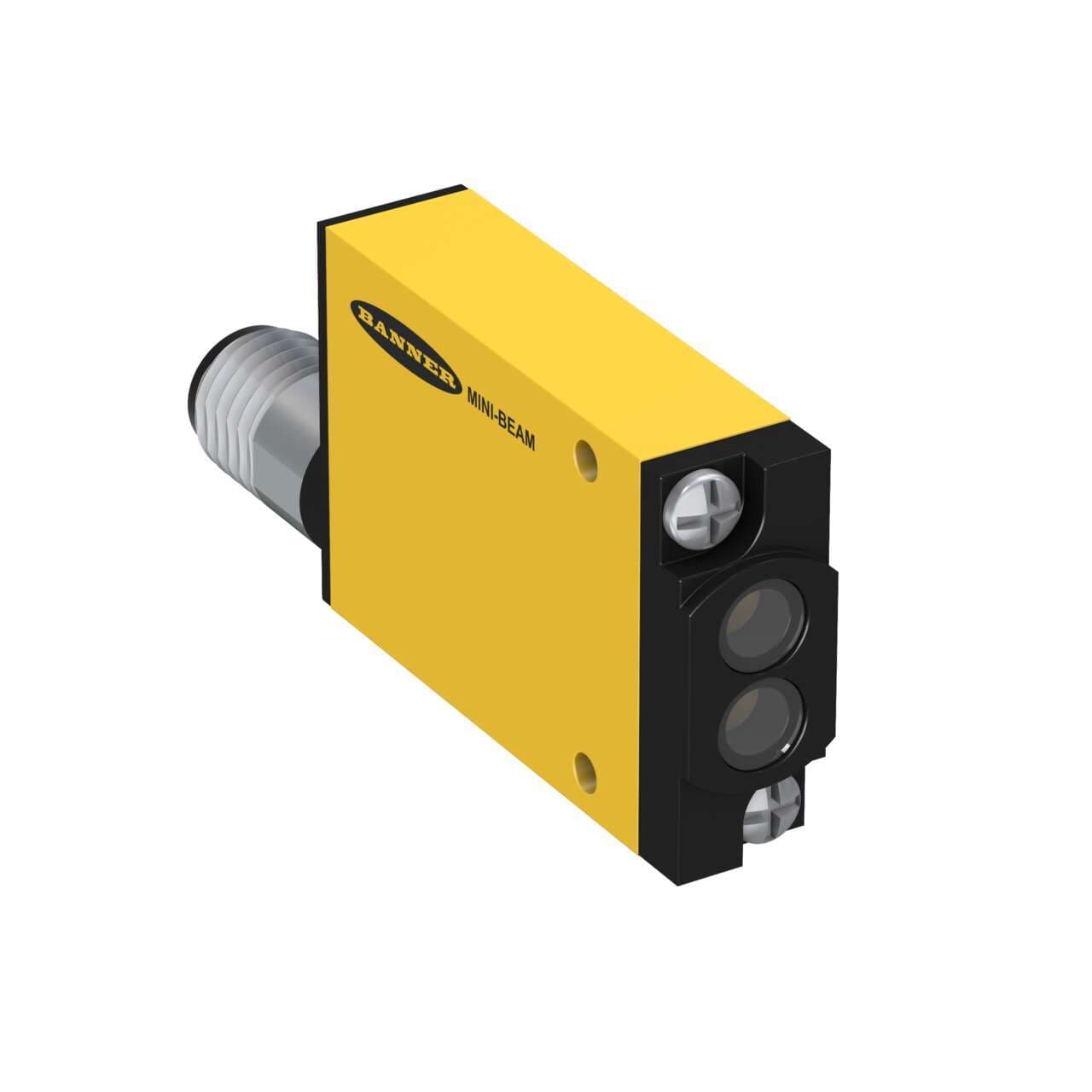

MIAD9WQ Banner Proximity Sensors

Product Details

• Weight
  52.16308 g
• Country Of Origin
  US
• Sub-range name
  MIAD9 NAMUR
• Sensing distance
  75mm
• Digital outputs
  1 x digital output (NAMUR)
• Product series / family name
  MINI-BEAM series
• Connection type
  Pre-equipped with 4-pin Euro-style M12 connector
• Degree of protection
  IP67 NEMA 1 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 12 NEMA 13
• Order code / Manufacturer SKU
  35233
• Primary brand
  Banner Engineering
• Design
  divergent diffuse system
• Operating mode
  Light-ON Dark-ON
• Material
  thermoplastic housing Acrylic lns.
• Functions
  Photo-electric sensor red LED (power ON) potentiometer adjustment
• Light Color
  Infrared (IR)
• Compliant with standard(s)
  ATEX FM cCSAus CE
• Main function
  Sensor (Photo-electric)
• Supply voltage (DC)
  5Vdc-15Vdc (12Vdc nom.)
• Shape
  Rectangular
• Response time
  5ms / 0.005 s
Ambient air temperature for operation
-40...+70 °C
Sensing Mode (General)
Proximity
Quick Disconnect Type
M12 (Euro)
Repeatability (µs)
N/A
Opposed Mode Emitter/Receiver
N/A
Power Supply/Supply Voltage
5-15 V dc
Delay at Power-up (ms)
N/A
Indicator
LEDs
Outputs
Constant Current
Special Feature: Water Detection
No
IO Link
No
Primary Housing Material
Thermoplastic
Max Op. Temp. (°C)
70
Max Op. Relative Humidity [%]
90% @ 50°C
Feature: Hazardous Area
Yes
Input/Output
Discrete
Special Feature: Intrinsically Safe
Yes
Adjustments
Potentiometer
DeviceNet
No
Housing Style
Rectangular
Special Feature: Remote Teach
No
Barrel Diameter (mm)
N/A
Sensing Mode (Detailed)
Divergent
Min Op. Temp. (°C)
-40
IP Rating
IP67
Feature: Encapsulated
Yes
Sensing Beam
Infrared LED
Connection
Integral QD
NEMA Rating
NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13
Max Sensing Distance (mm)
75
Output response time (ms)
5
Lens Material
Acrylic
Feature: Chemical Resistant
No
Power
DC
Operation
Light/Dark Operate
Number of Pins
4
Feature: Audible
No
Feature: Timing (Hold/Delay)
No
