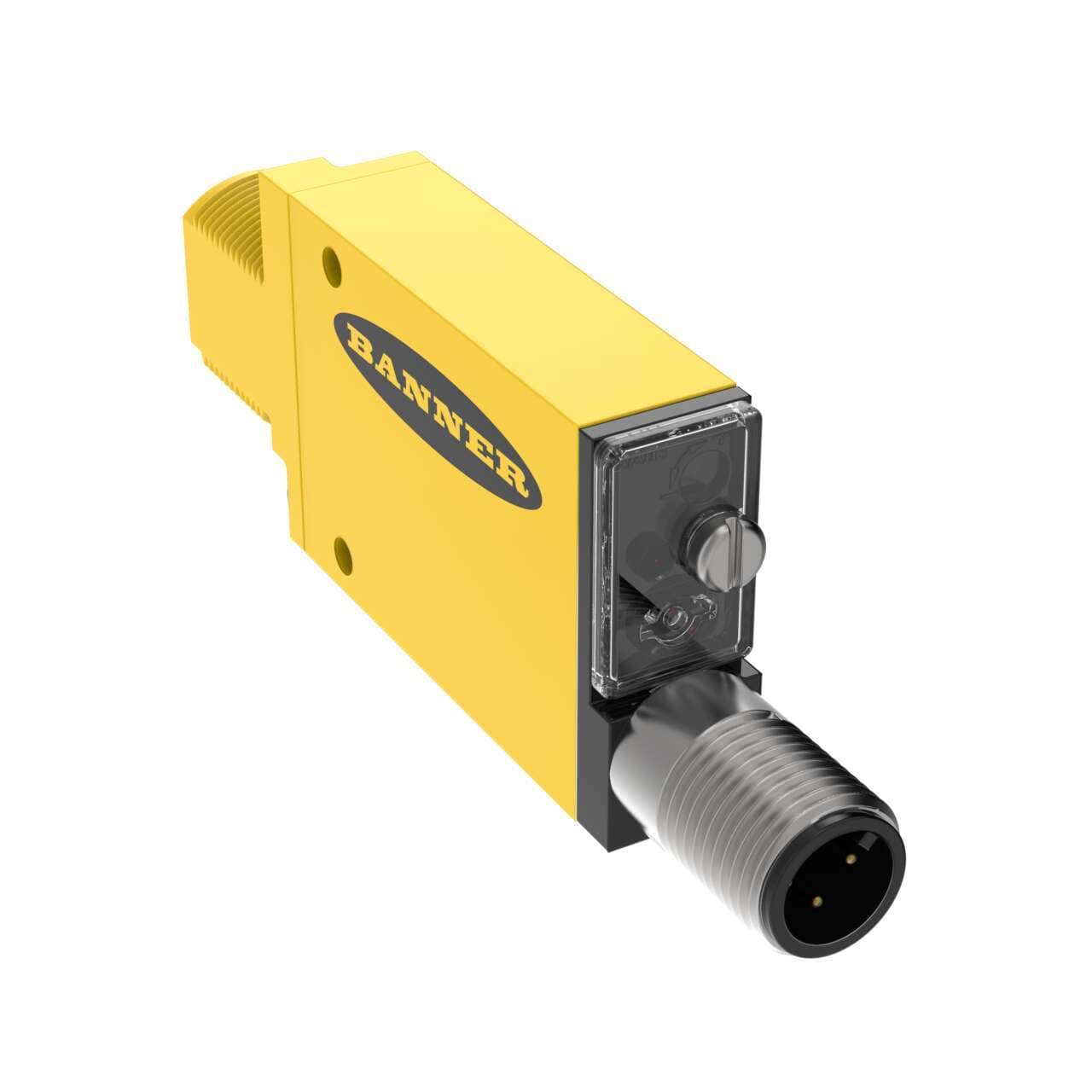

MIAD9CVQ Banner Proximity Sensors
Part#:MIAD9CVQ
Alt. Part#:35234
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
MINI-BEAM NAMUR: Convergent; Focal Point: 16 mm; Input: 5-15 V dc; Output: NAMUR; 4-pin M12 Integral QD
Product Details
- Weight 63.50288 g
- Country Of Origin US
- Supply voltage (DC) 5Vdc-15Vdc (12Vdc nom.)
- Mounting mode Threaded mount
- Material thermoplastic housing Acrylic lns.
- Product series / family name MINI-BEAM series
- Sensing distance 16mm
- Primary brand Banner Engineering
- Functions Photo-electric sensor red LED (power ON) potentiometer adjustment
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Sub-range name MIAD9 NAMUR
- Light Color Visible red
- Operating mode Light-ON Dark-ON
- Main function Sensor (Photo-electric)
- Design convergent mode
- Shape Rectangular
- Degree of protection IP67 NEMA 1 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 12 NEMA 13
- Thread size M18
- Response time 5ms / 0.005 s
- Order code / Manufacturer SKU 35234
- Digital outputs 1 x digital output (NAMUR)
- Compliant with standard(s) ATEX FM cCSAus CE
- Ambient air temperature for operation -40...+70 °C
- Input/Output Discrete
- Connection Integral QD
- Delay at Power-up (ms) N/A
- Indicator LEDs
- Feature: Audible No
- Outputs Constant Current
- Repeatability (µs) N/A
- Feature: Encapsulated Yes
- Sensing Beam Visible Red LED
- Special Feature: Intrinsically Safe Yes
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Chemical Resistant No
- Housing Style Rectangular w/M18 Mount
- Power Supply/Supply Voltage 5-15 V dc
- Number of Pins 4
- DeviceNet No
- Output response time (ms) 5
- Lens Material Acrylic
- Feature: Hazardous Area Yes
- Power DC
- Max Op. Temp. (°C) 70
- Adjustments Potentiometer
- IO Link No
- Max Sensing Distance (mm) 16
- Min Op. Temp. (°C) -40
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13
- Sensing Mode (General) Proximity
- Quick Disconnect Type M12 (Euro)
- IP Rating IP67
- Sensing Mode (Detailed) Convergent
- Operation Light/Dark Operate
- Special Feature: Water Detection No
- Opposed Mode Emitter/Receiver N/A
- Primary Housing Material Thermoplastic
- Special Feature: Remote Teach No
- Barrel Diameter (mm) 18
- Feature: Timing (Hold/Delay) No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MIAD9CVQ on Powermatic Associates is $186.00. Order now.
About the product
Banner Engineering MIAD9CVQ is a photo-electric sensor designed for precision detection in a variety of industrial applications. This sensor features a convergent mode with potentiometer adjustment and is mounted using an M18 threaded mount. It operates within an ambient air temperature range of -40 to +70°C and is housed in a thermoplastic casing with an acrylic lens. The MIAD9CVQ is pre-equipped with a 4-pin Euro-style M12 connector for easy integration into existing systems. It belongs to the MIAD9 NAMUR series and offers a high degree of protection, rated at IP67 and compliant with multiple NEMA standards, including 1, 2, 3, 3S, 4, 4X, 6, 12, and 13. The sensor operates on a supply voltage of 5Vdc to 15Vdc, with a nominal voltage of 12Vdc, and has a rectangular shape. It provides a sensing distance of 16mm and utilizes visible red light for detection. The MIAD9CVQ supports both Light-ON and Dark-ON operating modes and includes 1 x digital output (NAMUR) with a response time of 5ms / 0.005 s.
