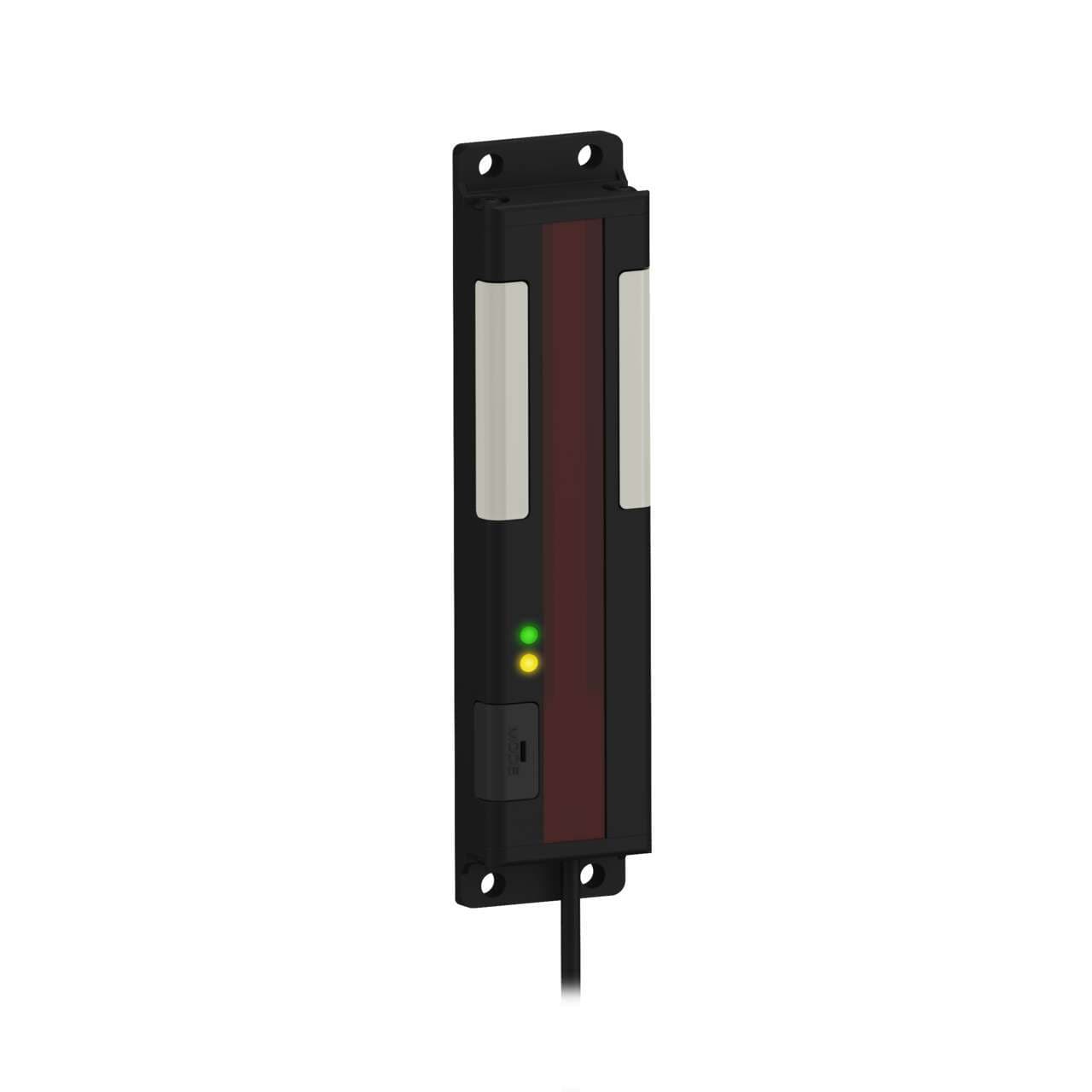

PVA100N6RQ Banner Optical Sensors

Product Details

• Weight
  226.796 g
• Country Of Origin
  MX
• Main function
  Sensor (Array)
• Connection type
  Pre-wired (pigtail) 4-pin M12 connector
• Digital outputs
  1 x digital output (NPN transistor)
• Technology used in component
  LED
• Length (m)
  (cable) 2 m
• Primary brand
  Banner Engineering
• Functions
  Flat-mount array optical sensor for error-proofing of bin handpicking operations - through-beam sensing receiver only
• Sensing distance
  2m / 2000 mm
• Degree of protection
  IP62 NEMA 2
• Operating mode
  NO (Normally Open) NC (Normally Closed)
• Order code / Manufacturer SKU
  51921
• Length (mm)
  (array) 100 mm
• Compliant with standard(s)
  CE cULus Listed
• Supply voltage
  (DC) 12-30 V
• Net Height (mm)
  (sensing height) 6.5" / 100 mm
• Product series / family name
  PVA
• Mounting mode
  Surface Pole
• Ambient air temperature for operation
  0...+50 °C
Visual position indicator
green LED (power ON) yellow LED (output state)
Current consumption
62mA / 0.062 A
Distance
(beam spacing) 25mm
Supply voltage (DC)
12-30Vdc (12Vdc-24Vdc nom.)
Frame color
Black
Material
Acrylic Clear (window) Aluminum (housing)
Light Color
Green
Maximum temperature
50 °C
Sensing Mode (Detailed)
Receiver
Power
DC
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Product Size (mm)
Other
Supply Voltage
12-30 V dc
Number of Input Pins/Conductors
4
Beam Spacing (mm)
25.0
NEMA Type and UL Type Rating
NEMA 2
Feature: Audible
No
Primary Housing Material
Aluminum
Animation Option 1
Dip-Switch Controlled
Max Output Response Time (ms)
20
Button Operation
Momentary
Wireless
No
Housing Style
Flat Mount - Array
Connection
Pigtail QD
Output Type
NPN
Environmental Rating
IP62
IO Link
No
Cable Length (m)
2
Number of Colors / Segments
1
Max Current Color (mA)
62
Array Length (mm)
100.0
Feature: Hazardous Area
No
Mounting Thread
No Thread
Sensing Mode (General)
Opposed
Operation
Normally Open/Normally Closed
Number of Beams
5
Feature: Chemical Resistant
No
Power Source
DC
Color Option 1
Green
Input Type
Bimodal (PNP/NPN)
Max Op. Temperature (°C)
50
Modbus RTU
No
Activation Function
Optical
Quick Disconnect Type
M12 (Euro)
Sensing Array Length (mm)
100
Primary Housing Color
Black
Physical Dimensions (LxWxH or DxH mm)
137.8 x 30.0 x 15.0
Primary Window Material
Acrylic Clear
Actuation
Yes
Color Technology
Standard LED
Maximum Sensing Distance (mm)
2000
Sensing Resolution (mm)
35.0
Job Light
Green
Pro-Editor Compatible (Discrete)
No
