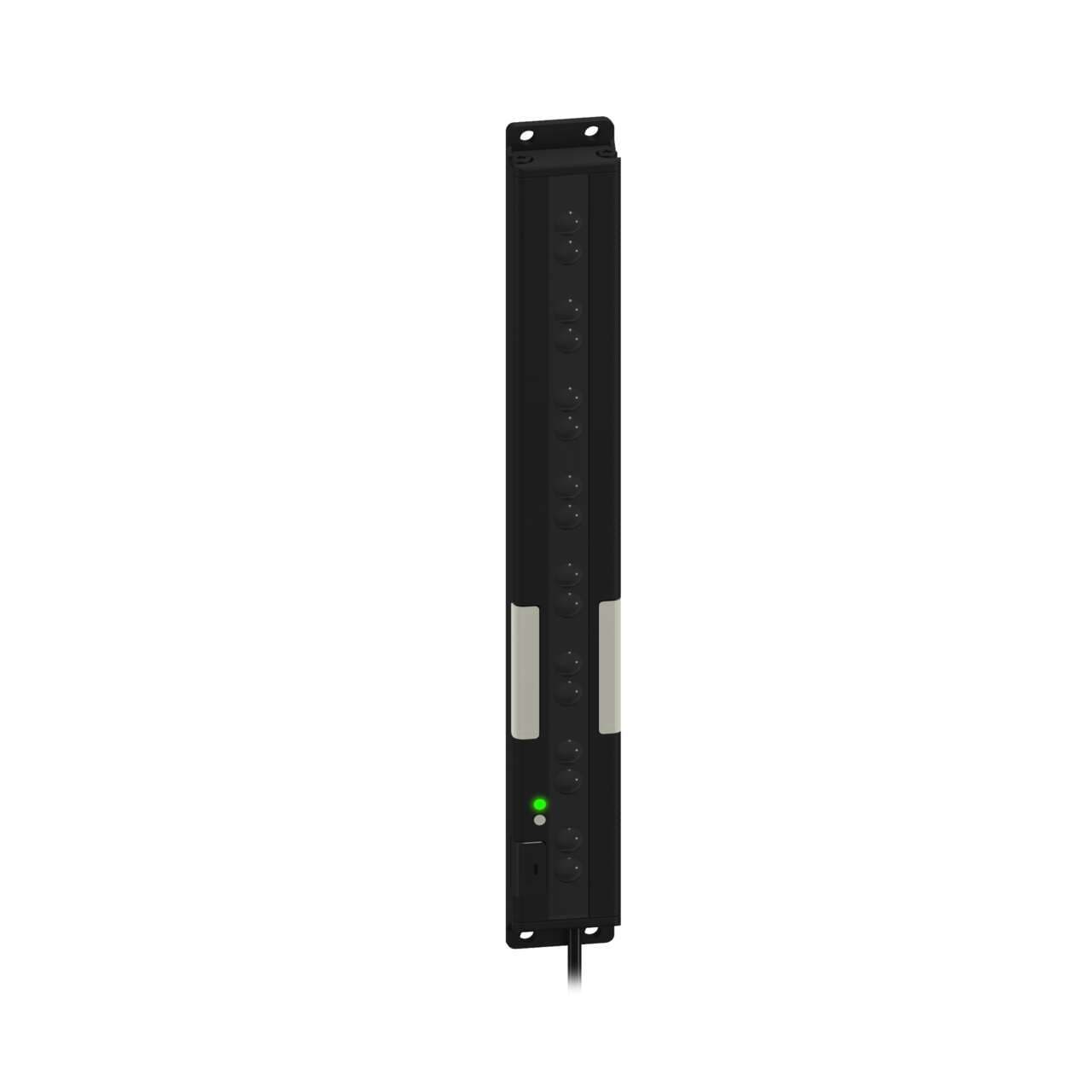

PVD225QNA Banner Pick-to-Light Sensors
Part#:PVD225QNA
Alt. Part#:72076
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
PVD Series: Parts Verification; 225 mm 8 channel; Range: up to 2 m; Input: 12-30 V dc; Outputs: Selectable NPN/PNP; 150 mm (6 in) 5-pin M12 PVC Pigtail QD; Modified for Automotive; See Literature Insert
Product Details
- Weight 272.1552 g
- Country Of Origin MX
- Primary Housing Material Aluminum
- Connection Pigtail QD
- Number of Input Pins/Conductors 5
- Sensing Mode (General) Retroreflective or Proximity
- Color Technology Standard LED
- Supply Voltage 12-30 V dc
- Beam Spacing (mm) 28.6
- Sensing Resolution (mm) 51
- Power Source DC
- Number of Colors / Segments 2
- Quick Disconnect Type M12 (Euro)
- Operation Normally Open/Normally Closed
- Number of Beams 8
- Activation Function Optical
- Housing Style Flat Mount - Array
- Product Size (mm) Other
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Output Type Bipolar (NPN or PNP - user selectable)
- Environmental Rating IP62
- Feature: Audible No
- Job Light Green
- Actuation Yes
- Lumens Color 1 12.0
- Max Current Color (mA) 88
- Sensing Array Length (mm) 225
- Max Op. Temperature (°C) 50
- Modbus RTU No
- Power DC
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Lumens Color 2 2.5
- Input Type Bimodal (PNP/NPN)
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- IO Link No
- Cable Length (m) 0.15
- Mounting Thread No Thread
- Color Option 2 Red
- Max Input Response Time (ms) 400
- NEMA Type and UL Type Rating NEMA 2
- Wireless No
- Feature: Chemical Resistant No
- Sensing Mode (Detailed) Diffuse/Non-Polarized
- Animation Option 1 Solid On
- Mis-Pick Light Red
- Physical Dimensions (LxWxH or DxH mm) 266.4 x 30.0 x 15.0
- Primary Window Material Acrylic Clear
- Color Option 1 Green
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Maximum Sensing Distance (mm) 400/2000
- Primary Housing Color Black
- Pro-Editor Compatible (Discrete) No
- Array Length (mm) 225.0
- Button Operation Momentary
- Feature: Hazardous Area No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PVD225QNA on Powermatic Associates is $522.00. Order now.
About the product
Banner Engineering PVD225QNA is a photo-electric array sensor designed for a variety of applications requiring precise detection. This sensor operates in a retro-reflective mode with a background blocked 80% threshold and is equipped with a pre-wired 6" / 150mm pigtail terminated with a 5-pin M12 connector. It features a rectangular shape with dimensions of 225mm in array length, 30mm in width, and 267mm in depth. The sensor is housed in aluminium with an acrylic clear window, ensuring durability. It operates within an ambient air temperature of +50°C and offers a sensing distance of 2m / 2000mm. The PVD225QNA provides a degree of protection rated at IP62 NEMA 2 and requires a supply voltage of 12Vdc-30Vdc (24Vdc nom.). It supports both NO (Normally Open) and NC (Normally Closed) operating modes and emits light in green and red with wavelengths of 525 nm and 625 nm, respectively. Additionally, it includes 1 x digital output (PNP/NPN transistor) for versatile connectivity.
