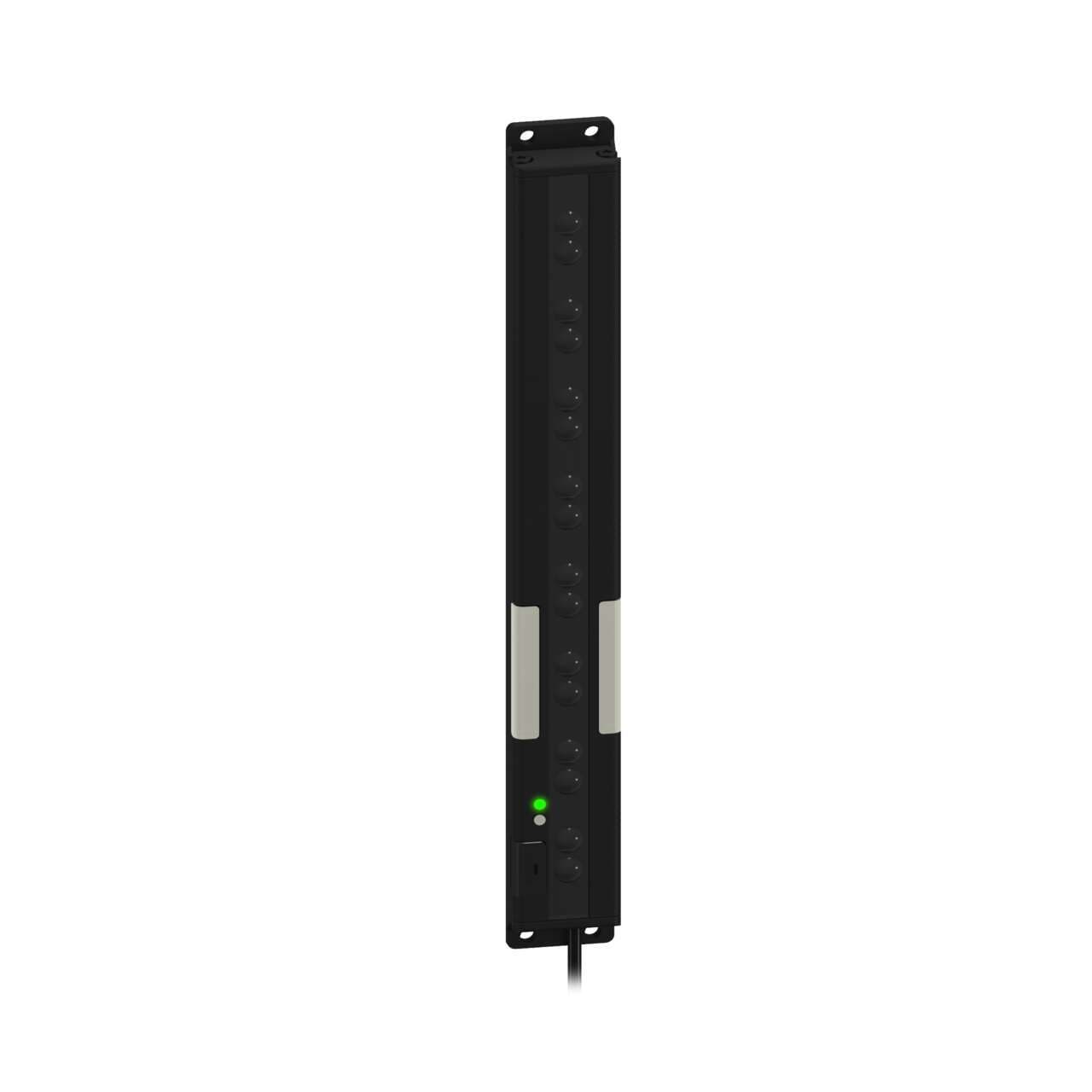

PVD225QPMA29 Banner Pick-to-Light Sensors
Part#:PVD225QPMA29
Alt. Part#:18482
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
PVD Series: Parts Verification; 225 mm 8 channel; Range: up to 2 m; Input: 12-30 V dc; Outputs: Selectable NPN/PNP; 5-pin M12 2 m (6.5 ft) PUR Pigtail QD; Modified for Automotive; See Literature Insert
Product Details
- Weight 317.5144 g
- Country Of Origin MX
- Primary Housing Material Aluminum
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Supply Voltage 12-30 V dc
- Array Length (mm) 225.0
- Feature: Audible No
- Power DC
- Cable Length (m) 0.15
- Lumens Color 1 12.0
- Operation Normally Open/Normally Closed
- Physical Dimensions (LxWxH or DxH mm) 266.4 x 30.0 x 15.0
- Feature: Chemical Resistant No
- Power Source DC
- Color Option 1 Green
- Lumens Color 2 2.5
- Input Type Bimodal (PNP/NPN)
- Button Operation Momentary
- Wireless No
- Actuation Yes
- Animation Option 1 Solid On
- Max Current Color (mA) 88
- Number of Beams 8
- Sensing Resolution (mm) 51
- Pro-Editor Compatible (Discrete) No
- NEMA Type and UL Type Rating NEMA 2
- Modbus RTU No
- Mounting Thread No Thread
- Color Technology Standard LED
- Mis-Pick Light Red
- Maximum Sensing Distance (mm) 400/2000
- Housing Style Flat Mount - Array
- Number of Colors / Segments 2
- Color Option 2 Red
- Max Input Response Time (ms) 400
- Primary Housing Color Black
- Feature: Hazardous Area No
- Sensing Mode (General) Retroreflective or Proximity
- Product Size (mm) Other
- Number of Input Pins/Conductors 5
- Sensing Array Length (mm) 225
- Primary Window Material Acrylic Clear
- Output Type Bipolar (NPN or PNP - user selectable)
- Environmental Rating IP62
- IO Link No
- Activation Function Optical
- Quick Disconnect Type M12 (Euro)
- Sensing Mode (Detailed) Diffuse/Non-Polarized
- Connection Pigtail PUR QD
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Beam Spacing (mm) 28.6
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Job Light Green
- Max Op. Temperature (°C) 50
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PVD225QPMA29 on Powermatic Associates is $522.00. Order now.
About the product
PVD Series: Parts Verification, 225 mm 8 channel; Range; up to 2 m,, Input:12-30 V dc, Outputs: Selectable NPN/PNP, Euro 5-pin 2 m (6.5 ft) PUR Pigtail Connector, Modified for Automotive; See Literature Insert
