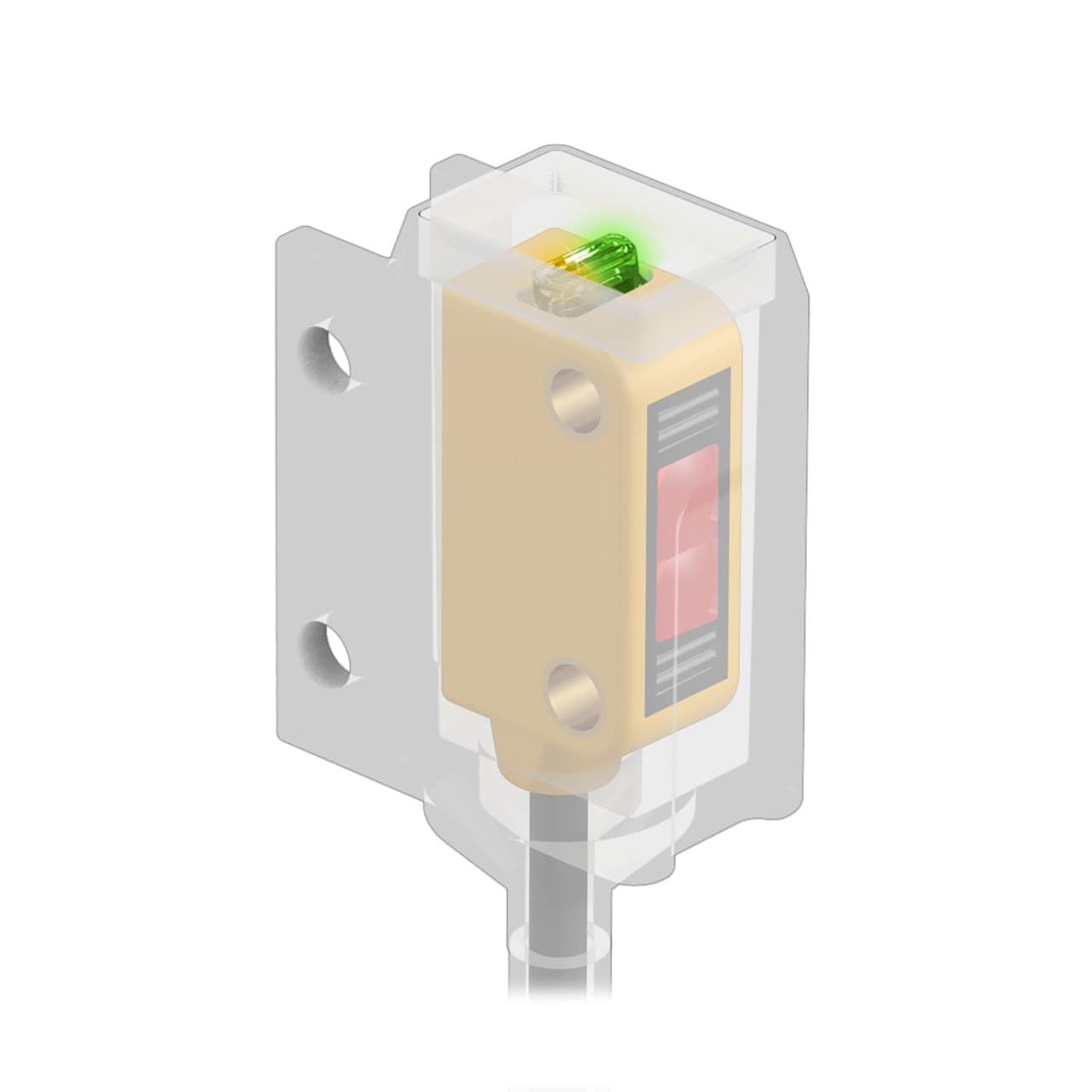

Q12RB6FF15CR Banner Electronic Components

Product Details

• Functions
  Fixed-field photo-electric sensor green LED (power ON) yellow LED (signal)
• Main function
  Sensor (Photo-electric)
• Sensing distance
  15mm
• Operating mode
  Dark-ON
• Product series / family name
  WORLD-BEAM series
• Light Color
  Visible red
• Primary brand
  Banner Engineering
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Wavelength
  640 nm
• Degree of protection
  IP67
• Sub-range name
  Q12 series
• Design
  background suppression system
• Shape
  Rectangular
• Digital outputs
  1 x digital output (PNP/NPN transistor)
• Connection type
  Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
• Response time
  0.7ms / 0.0007 s
• Compliant with standard(s)
  cURus CE
• Material
  thermoplastic housing Polycarbonate lns.
• Chemical resistance
  chemical-resistant
• Ambient air temperature for operation
  -20...+55 °C
Order code / Manufacturer SKU
76481
Input/Output
Discrete
Max Op. Temp. (°C)
55
IP Rating
IP67
Opposed Mode Emitter/Receiver
N/A
Power
DC
Quick Disconnect Type
No QD
Special Feature: Water Detection
No
Feature: Encapsulated
No
Max Sensing Distance (mm)
15
Cable Length (m)
2
Special Feature: Remote Teach
No
Lens Material
Polycarbonate
DeviceNet
No
Small Visible Spot
LED
Max Op. Relative Humidity [%]
95% @ 50°C
Output response time (ms)
0.85 ON/OFF
Barrel Diameter (mm)
N/A
Primary Housing Material
Thermoplastic
Outputs
Bipolar (NPN & PNP)
Repeatability (µs)
175
Indicator
LEDs
Feature: Timing (Hold/Delay)
No
Sensing Mode (General)
Proximity
Min Op. Temp. (°C)
-20
Delay at Power-up (ms)
120
Feature: Audible
No
Sensing Mode (Detailed)
Background Suppression (Fixed)
Operation
Dark Operate
Sensing Beam Wavelength
640
Feature: Hazardous Area
No
Housing Style
Rectangular
Connection
Cable
Number of Pins
3
Feature: Chemical Resistant
Yes
Sensing Beam
Visible Red LED
Power Supply/Supply Voltage
10-30 V dc
Special Feature: Intrinsically Safe
No
IO Link
No
Adjustments
N/A
