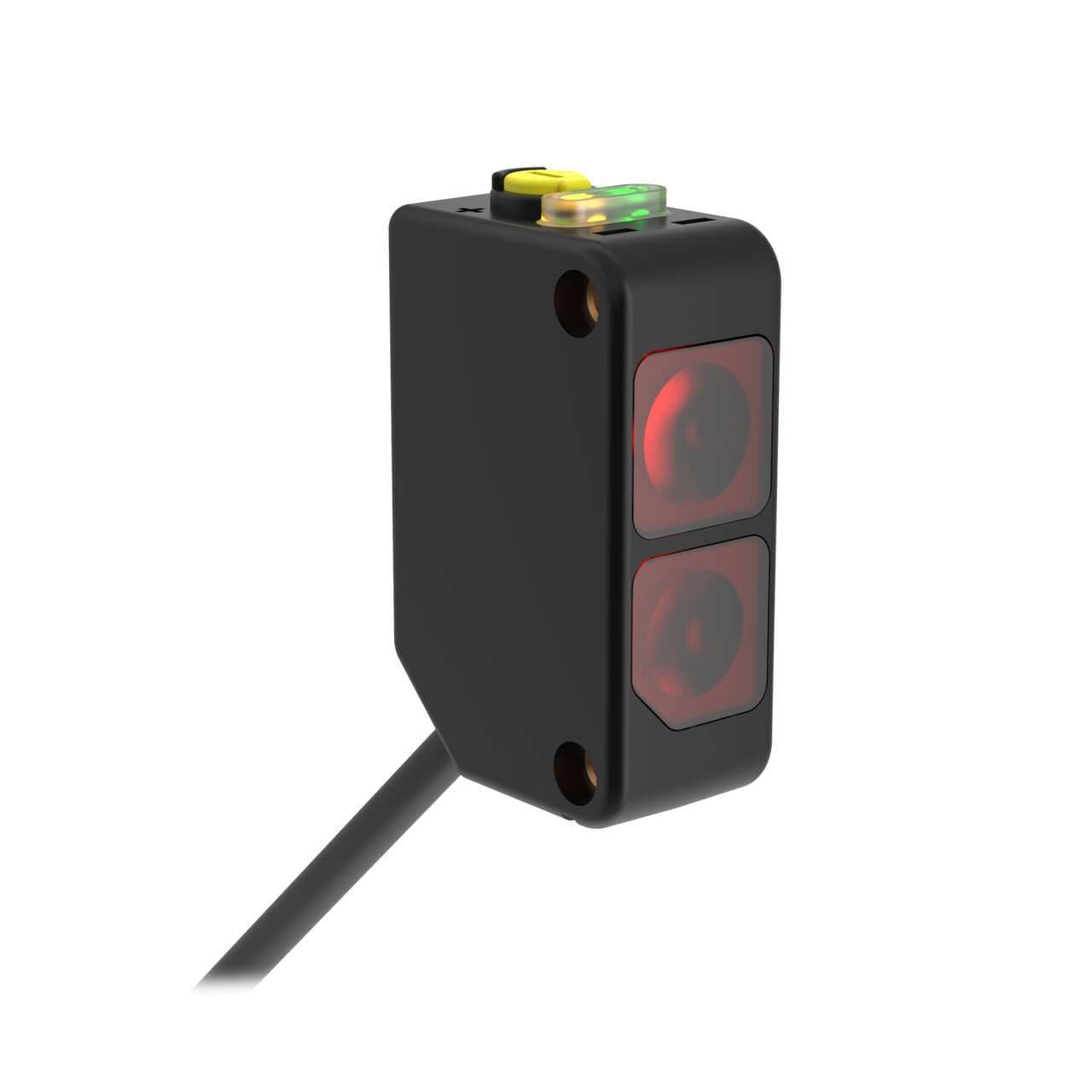

Q20APDQ3 Banner Proximity Sensors
Part#:Q20APDQ3
Alt. Part#:807113
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description

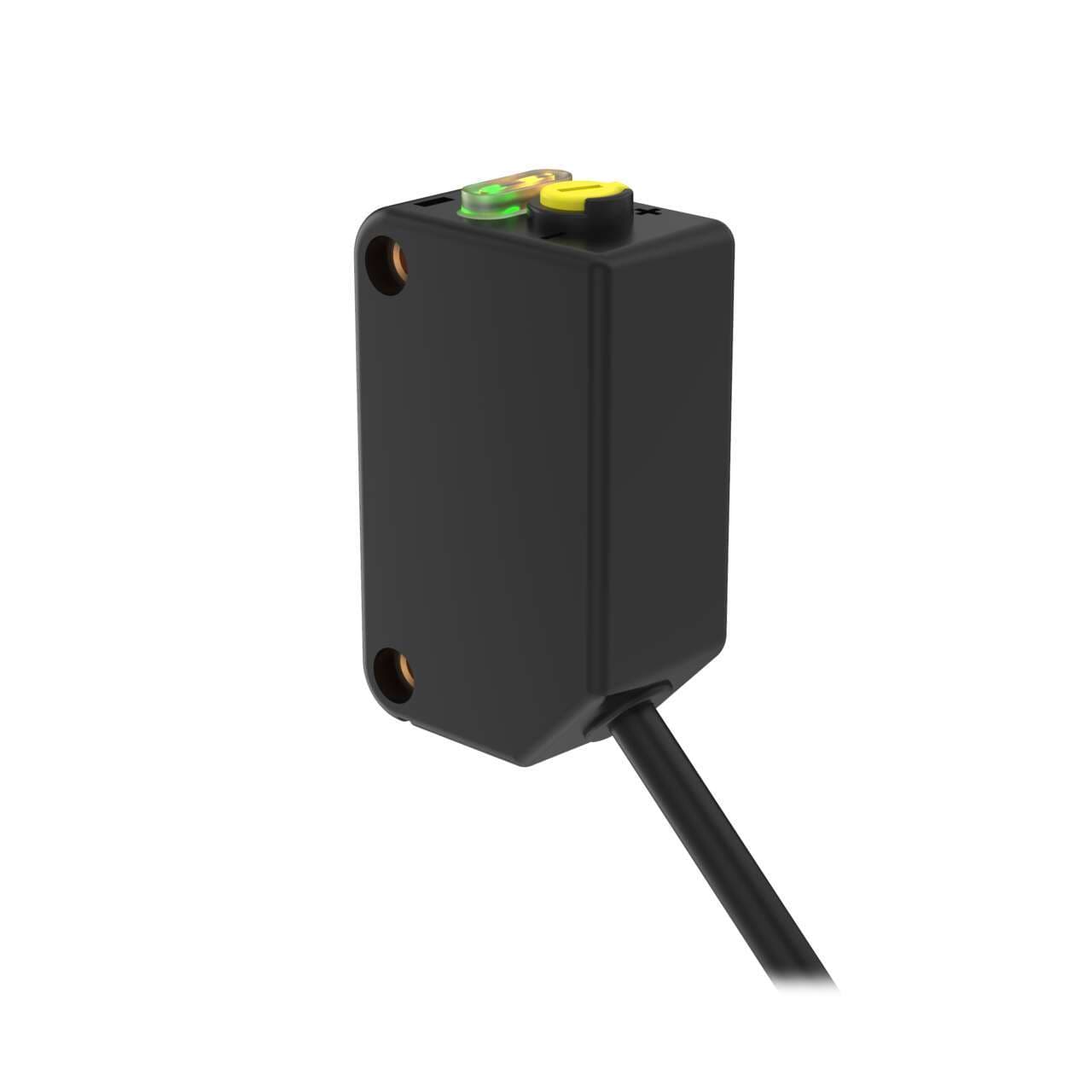

WORLD-BEAM Q20 Series: Diffuse (Red); Range: 250 mm; Input 10-30 V dc; Output: PNP Light Operate; 6 in Pigtail 3-pin M8 QD
Product Details
- Weight 22.6796 g
- Country Of Origin MX
- Outputs PNP
- Max Op. Temp. (°C) 60
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Chemical Resistant No
- Input/Output Discrete
- Special Feature: Remote Teach No
- Feature: Audible No
- Power DC
- Quick Disconnect Type M8 (Pico)
- Repeatability (µs) 155
- Opposed Mode Emitter/Receiver N/A
- Housing Style Rectangular
- Min Op. Temp. (°C) -20
- IP Rating IP67
- Feature: Encapsulated No
- Max Sensing Distance (mm) 250
- Operation Light/Dark Operate
- Lens Material Acrylic
- Feature: Hazardous Area No
- Sensing Mode (Detailed) Diffuse
- Special Feature: Intrinsically Safe No
- Number of Pins 4
- Feature: Timing (Hold/Delay) No
- Sensing Mode (General) Proximity
- Power Supply/Supply Voltage 10-30 V dc
- Sensing Beam Wavelength 655
- Adjustments Potentiometer
- DeviceNet No
- Sensing Beam Visible Red LED
- Output response time (ms) 0.8
- Special Feature: Water Detection No
- Primary Housing Material Thermoplastic
- Connection Pigtail QD
- Delay at Power-up (ms) 100
- IO Link No
- Barrel Diameter (mm) N/A
- NEMA Rating NEMA 6
- Indicator LEDs
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q20APDQ3 on Powermatic Associates is $109.00. Order now.
About the product
Banner Engineering Q20APDQ3 is a long-range photo-electric sensor designed for a variety of applications requiring precise detection. This sensor operates within an ambient air temperature range of -20 to +60°C and features a diffuse mode with potentiometer adjustment for fine-tuning. It comes pre-wired with a 6-inch (150mm) pigtail that terminates with a 3-pin Pico-style M8 connector, ensuring easy integration into existing systems. Part of the Q20 series, it boasts a rectangular shape with a thermoplastic housing, providing a degree of protection rated at IP67 NEMA 6 against dust and water ingress. The Q20APDQ3 operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc, and offers a sensing distance of 250mm. It emits visible red light with a wavelength of 645 nm and operates in a Light-ON mode. This sensor includes 1 x digital output (PNP transistor) and features a rapid response time of 0.8ms (0.0008 s) for quick detection tasks.
