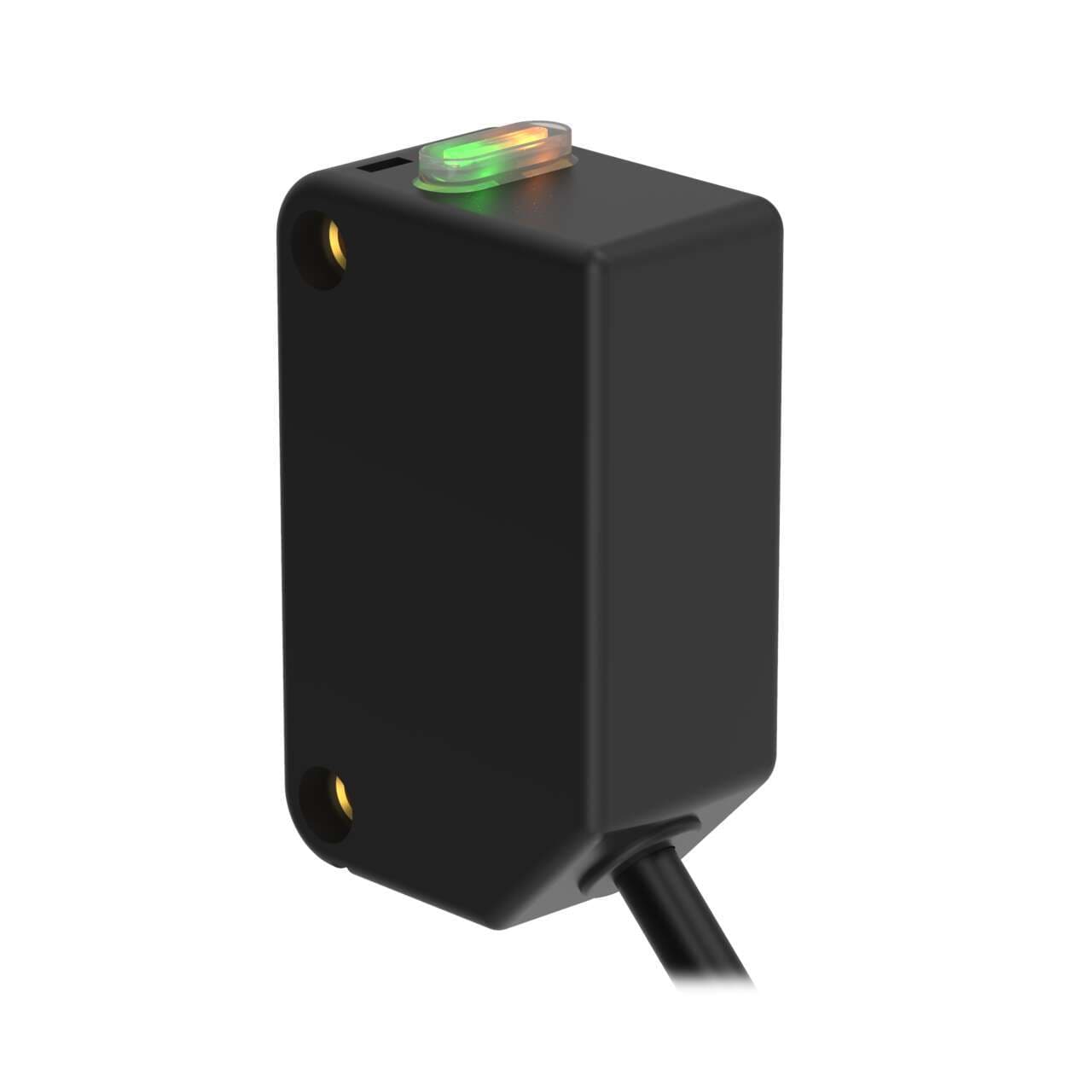

Q20APFF50Q3 Banner Proximity Sensors
Part#:Q20APFF50Q3
Alt. Part#:809574
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM Q20 Series: Fixed-Field; Range: 50 mm; Input 10-30 V dc; Output: LO Solid-State PNP NO; 3-pin M8 150 mm (6 in) Pigtail
Product Details
- Weight 20.41164 g
- Country Of Origin MX
- Sensing Mode (General) Proximity
- Quick Disconnect Type M8 (Pico)
- Delay at Power-up (ms) 100
- Feature: Timing (Hold/Delay) No
- Max Sensing Distance (mm) 50
- Max Op. Temp. (°C) 60
- Number of Pins 3
- Feature: Chemical Resistant No
- Input/Output Discrete
- Power DC
- Special Feature: Intrinsically Safe No
- Primary Housing Material Thermoplastic
- Special Feature: Water Detection No
- Adjustments N/A
- IO Link No
- Outputs PNP
- Operation Light Operate
- Indicator LEDs
- Feature: Audible No
- Small Visible Spot LED
- Max Op. Relative Humidity [%] 95% @ 50°C
- Sensing Beam Visible Red LED
- Feature: Encapsulated No
- IP Rating IP67
- Feature: Hazardous Area No
- Power Supply/Supply Voltage 10-30 V dc
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Special Feature: Remote Teach No
- NEMA Rating NEMA 6
- DeviceNet No
- Connection Pigtail QD
- Housing Style Rectangular
- Opposed Mode Emitter/Receiver N/A
- Sensing Beam Wavelength 655
- Repeatability (µs) 155
- Min Op. Temp. (°C) -20
- Barrel Diameter (mm) N/A
- Output response time (ms) 0.8
- Lens Material Acrylic
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q20APFF50Q3 on Powermatic Associates is $109.00. Order now.
About the product

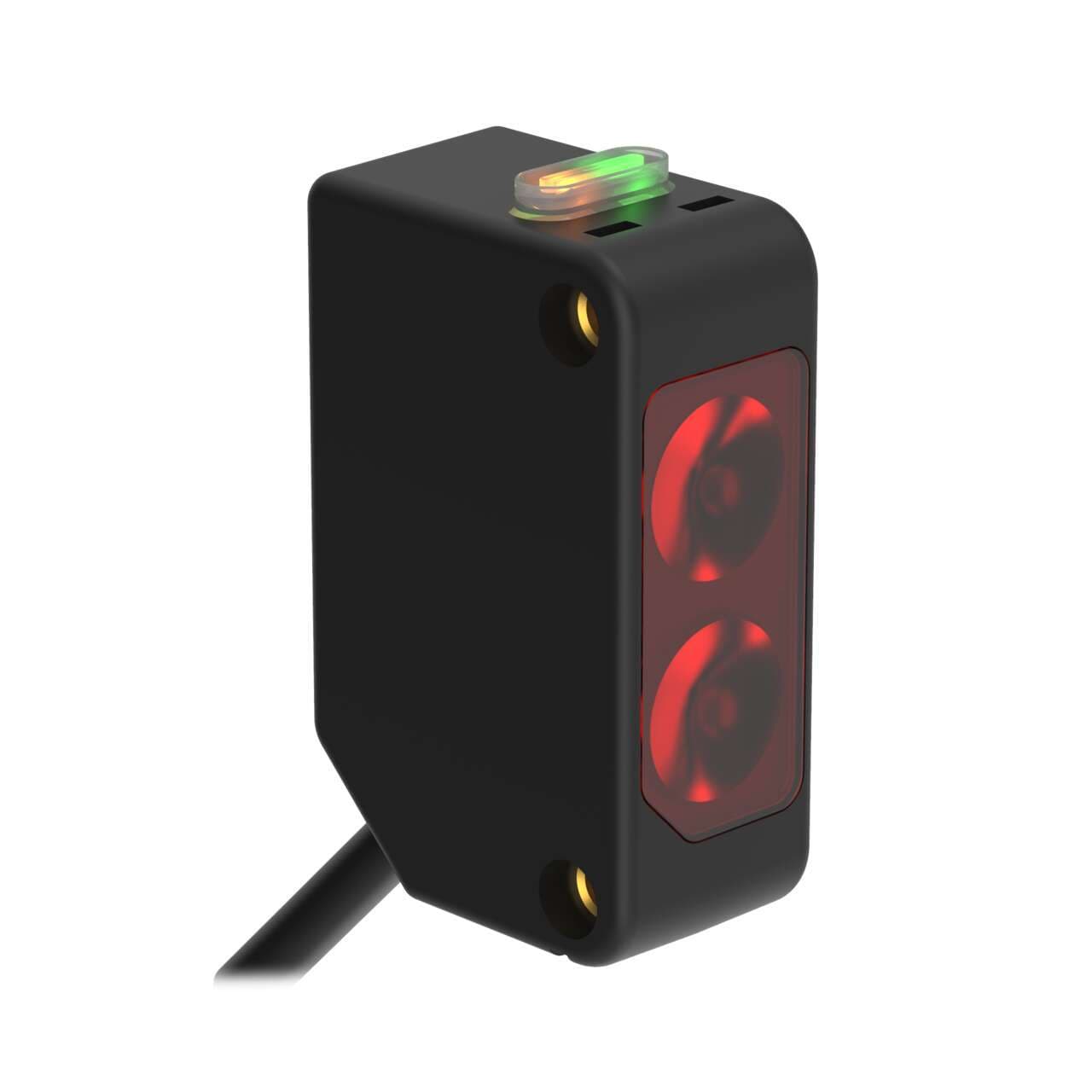

Banner Engineering Q20APFF50Q3 is a fixed-field photo-electric sensor from the Q20 series, designed with a background suppression system. It operates within an ambient air temperature range of -20 to +60 °C and is housed in a thermoplastic material for durability. This sensor features a pre-wired 6-inch (150mm) pigtail terminated with a 3-pin Pico-style M8 connector for easy installation. It offers a sensing distance of 50mm and utilizes visible red light with a wavelength of 645 nm. The Q20APFF50Q3 operates in Light-ON mode and is equipped with one digital output (PNP transistor) for signal processing. It has a quick response time of 0.8ms (0.0008 seconds) and is powered by a supply voltage ranging from 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. This sensor is protected to IP67 NEMA 6 standards, ensuring its operation in challenging environments.
