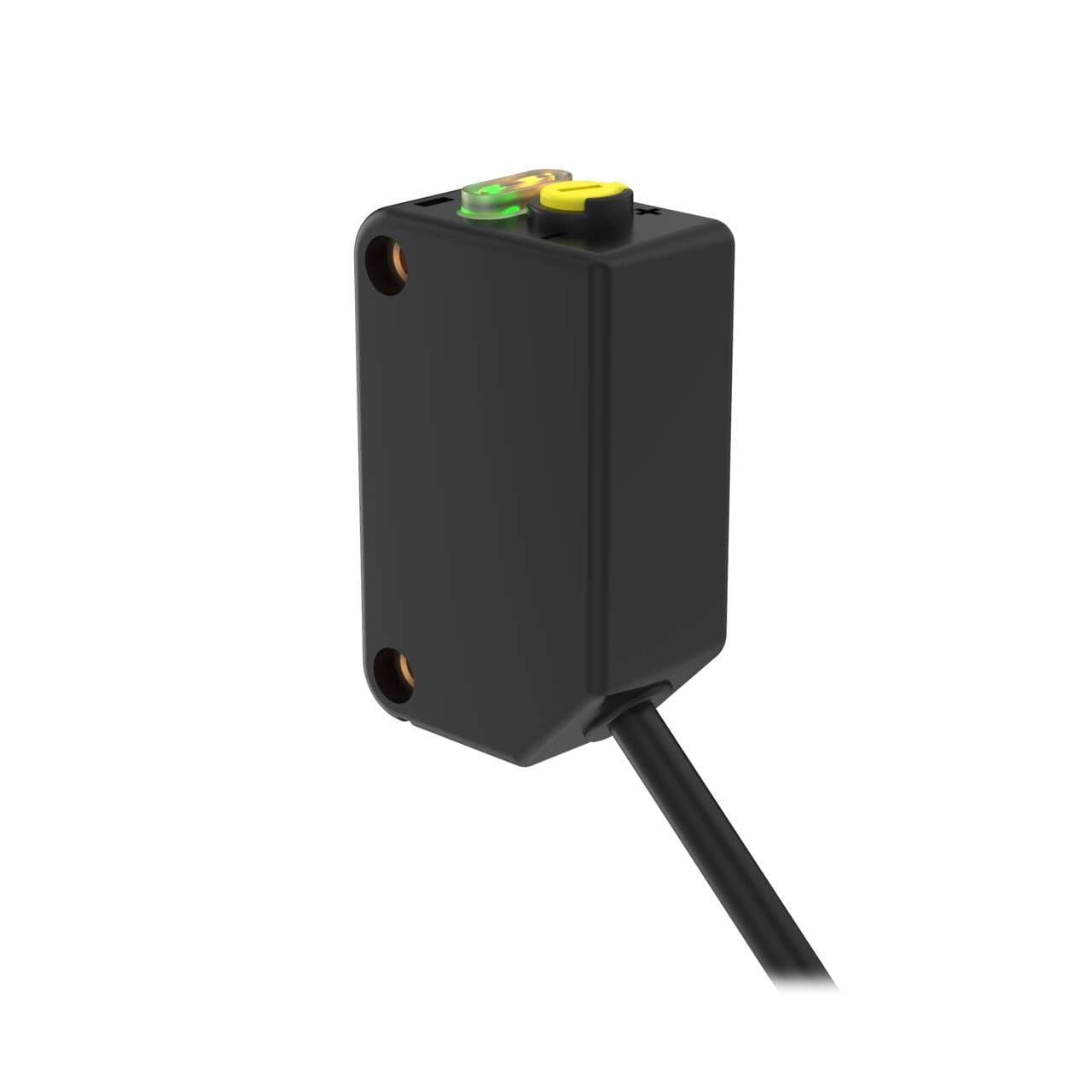

Q20KAF200Q5 Banner Proximity Sensors
Part#:Q20KAF200Q5
Alt. Part#:805902
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM Q20 Series: Adjustable Field; Range: 200 mm; Input: 10-30 V dc; Output: PNP with IO-Link; 150 mm (6 in) M12 Pigtail QD
Product Details
- Weight 22.6796 g
- Country Of Origin MX
- Outputs PNP
- Special Feature: Remote Teach Yes
- Connection Pigtail QD
- Special Feature: Water Detection No
- Feature: Chemical Resistant No
- Quick Disconnect Type M12 (Euro)
- Max Op. Temp. (°C) 60
- Lens Material Acrylic
- Feature: Health/ Marginal Signal Output Yes
- Feature: Timing (Hold/Delay) Yes
- Primary Housing Material Thermoplastic
- Sensing Mode (General) Proximity
- Sensing Beam Wavelength 632
- NEMA Rating NEMA 6
- Feature: Audible No
- Sensing Mode (Detailed) Background Suppression (Adjustable)
- Housing Style Rectangular
- Delay at Power-up (ms) 200
- Adjustments Potentiometer
- DeviceNet No
- Power DC
- Min Op. Temp. (°C) -20
- Repeatability (µs) 130
- Feature: Hazardous Area No
- Sensing Beam Visible Red LED
- Max Sensing Distance (mm) 200
- Operation Light/Dark Operate
- Barrel Diameter (mm) N/A
- EPLAN Cabinet Installable No
- Small Visible Spot LED
- Input/Output Discrete & Serial
- Indicator LEDs
- IO Link Yes
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Intrinsically Safe No
- Feature: Encapsulated No
- Output response time (ms) 2.8
- Max Op. Relative Humidity [%] 95% @ 50°C
- IP Rating IP67
- Opposed Mode Emitter/Receiver N/A
- Number of Pins 4
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q20KAF200Q5 on Powermatic Associates is $145.00. Order now.
About the product
Banner Engineering Q20KAF200Q5 is an adjustable-field photo-electric sensor designed for a variety of applications requiring precise detection. This sensor operates within an ambient air temperature range of -20 to +55°C and features a background suppression system with I.O. link potentiometer adjustment for fine-tuning. It comes pre-wired with a 6-inch (150mm) pigtail terminated with a 4-pin Euro-style M12 connector, ensuring easy integration into existing systems. The Q20 series sensor boasts a rectangular shape with a thermoplastic housing and a Polymethyl methacrylate (PMMA) lens, offering durability and clear signal transmission. With an IP67 NEMA 6 degree of protection, it is well-suited for harsh environments. The sensor operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. It supports the IO-Link communication protocol for enhanced connectivity and control. The sensing distance ranges from 30mm to 200mm, utilizing visible red light with a wavelength of 632 nm. It offers flexible operating modes, including Light-ON and Dark-ON, and features a single digital output (PNP transistor) with a rapid response time of 2.8ms (0.0028 s).
