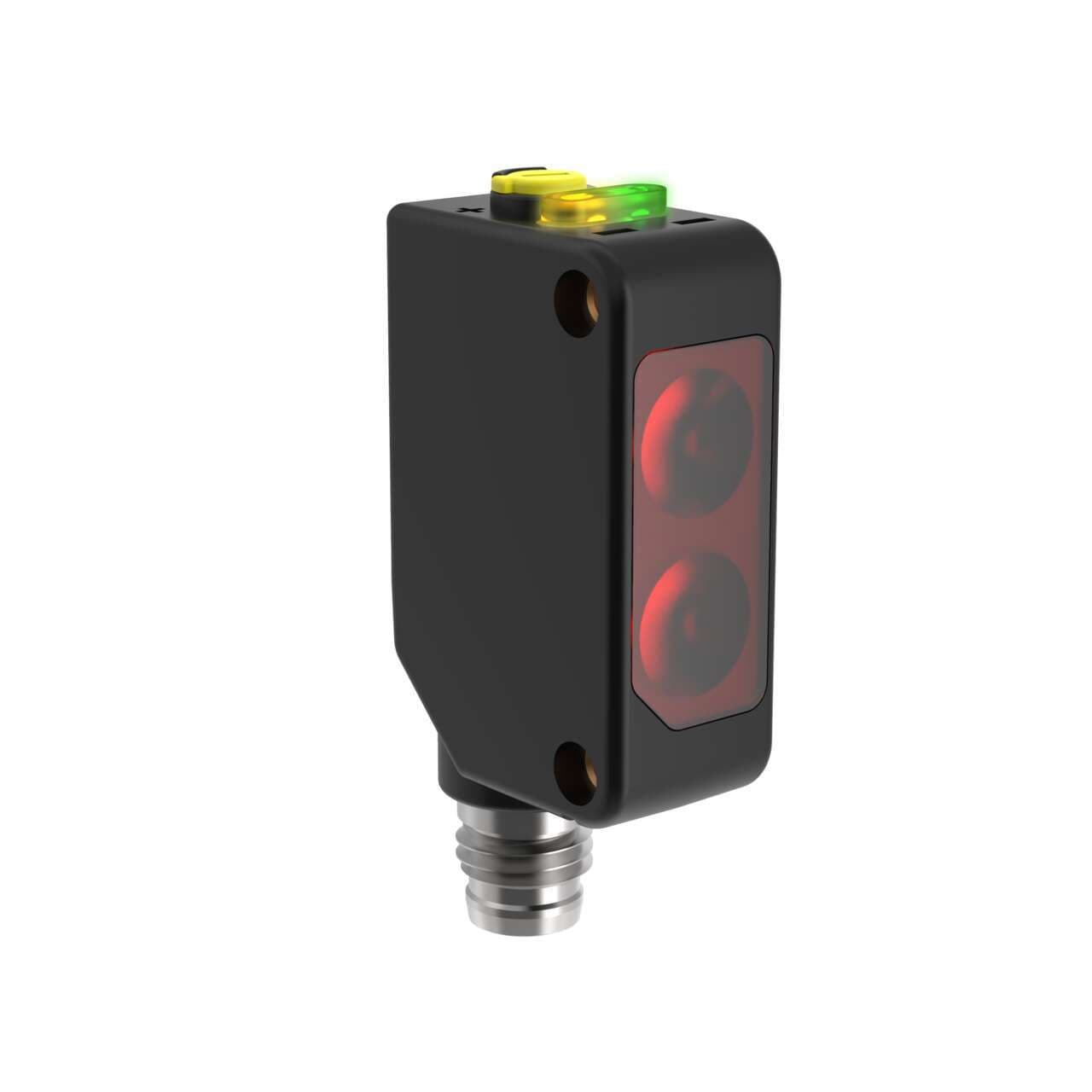

Q20KAF200Q7 Banner Proximity Sensors
Part#:Q20KAF200Q7
Alt. Part#:805901
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM Q20 Series: Adjustable Field; Range: 200 mm; Input: 10-30 V dc; Output: PNP with IO-Link; M8 Integral QD
Product Details
- Weight 22.6796 g
- Country Of Origin MX
- Sensing Beam Visible Red LED
- Outputs PNP
- Power Supply/Supply Voltage 10-30 V dc
- NEMA Rating NEMA 6
- DeviceNet No
- Sensing Mode (General) Proximity
- Quick Disconnect Type M8 (Pico)
- Sensing Beam Wavelength 632
- Feature: Timing (Hold/Delay) Yes
- Max Sensing Distance (mm) 200
- Special Feature: Remote Teach Yes
- Barrel Diameter (mm) N/A
- Feature: Health/ Marginal Signal Output Yes
- Sensing Mode (Detailed) Background Suppression (Adjustable)
- Min Op. Temp. (°C) -20
- Number of Pins 4
- Opposed Mode Emitter/Receiver N/A
- Primary Housing Material Thermoplastic
- Special Feature: Intrinsically Safe No
- Lens Material Acrylic
- Feature: Audible No
- Small Visible Spot LED
- Connection Integral QD
- Delay at Power-up (ms) 200
- Feature: Encapsulated No
- Input/Output Discrete & Serial
- Operation Light/Dark Operate
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Chemical Resistant No
- Housing Style Rectangular
- Output response time (ms) 2.8
- IP Rating IP67
- Feature: Hazardous Area No
- Special Feature: Water Detection No
- Adjustments Potentiometer
- EPLAN Cabinet Installable No
- Power DC
- Max Op. Temp. (°C) 60
- Repeatability (µs) 130
- Indicator LEDs
- IO Link Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q20KAF200Q7 on Powermatic Associates is $139.00. Order now.
About the product
Banner Engineering Q20KAF200Q7 is an adjustable-field photo-electric sensor designed for a variety of applications requiring precise detection. This sensor operates within an ambient air temperature range of -20 to +55 °C and features a background suppression system with I.O. link potentiometer adjustment for fine-tuning. It comes pre-equipped with a 4-pin Pico-style M8 connector, ensuring easy integration into existing systems. Part of the Q20 series, it boasts a degree of protection rated at IP67 NEMA 6, making it suitable for challenging environments. The sensor operates on a supply voltage of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. Its rectangular shape is constructed from a thermoplastic housing with a Polymethyl methacrylate (PMMA) lens, ensuring durability and clear signal transmission. The Q20KAF200Q7 supports the IO-Link communication protocol for enhanced data exchange and configurability. It offers a sensing distance range of 30mm to 200mm and utilizes visible red light with a wavelength of 632 nm for detection. This sensor can operate in both Light-ON and Dark-ON modes, providing flexibility for various applications. It features 1 x digital output (PNP transistor) and boasts a quick response time of 2.8ms / 0.0028 s, facilitating rapid detection and processing of signals.
