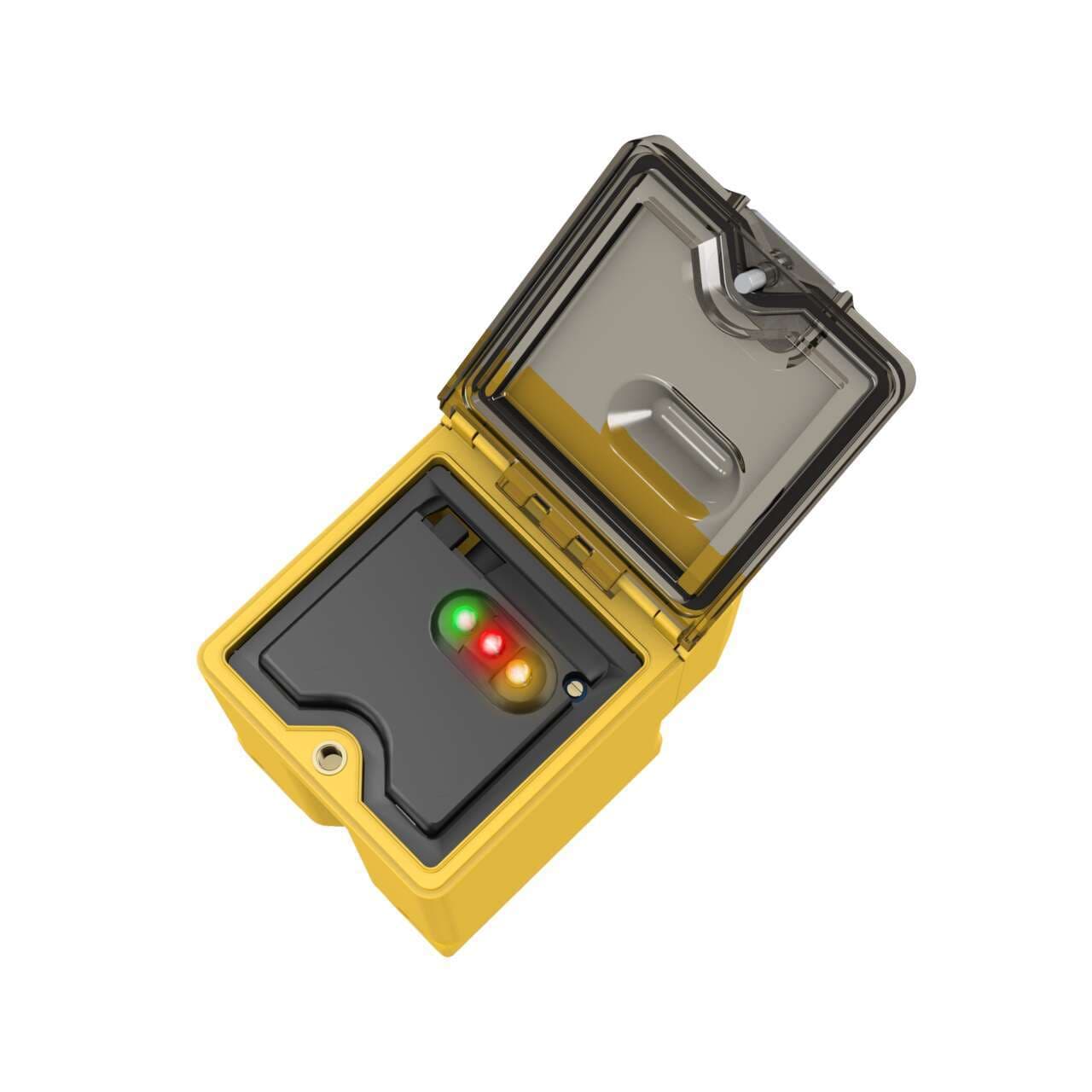

Q45XB6DQ Banner Proximity Sensors

Product Details

• Weight
  244.93968 g
• Country Of Origin
  US
• Primary brand
  Banner Engineering
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Connection type
  Pre-equipped with 5-pin 7/8" Mini connector
• Functions
  Photo-electric sensor green LED (power ON) red LED (signal) yellow LED (output state) potentiometer adjustment
• Shape
  Rectangular
• Mounting mode
  Threaded mount
• Product series / family name
  Q series
• Design
  diffuse mode
• Thread size
  M30
• Degree of protection
  IP67 NEMA 6P
• Order code / Manufacturer SKU
  37883
• Sub-range name
  Q45X
• Wavelength
  880 nm
• Operating mode
  Light-ON Dark-ON
• Main function
  Sensor (Photo-electric)
• Sensing distance
  450mm
• Light Color
  Infrared (IR)
• Digital outputs
  1 x digital output (PNP/NPN transistor)
Response time
2ms / 0.002 s
Material
thermoplastic housing Acrylic lns.
Ambient air temperature for operation
-40...+70 °C
Compliant with standard(s)
cCSAus
Max Sensing Distance (mm)
450
Connection
Integral QD
Delay at Power-up (ms)
100
Feature: Encapsulated
No
Sensing Beam
Infrared LED
Power Supply/Supply Voltage
10-30 V dc
Special Feature: Water Detection
No
Lens Material
Acrylic
Feature: Chemical Resistant
No
Sensing Mode (Detailed)
Diffuse
Operation
Light/Dark Operate
Number of Pins
5
Opposed Mode Emitter/Receiver
N/A
Housing Style
Rectangular
Special Feature: Intrinsically Safe
No
NEMA Rating
NEMA 6P
Feature: Timing (Hold/Delay)
No
Power
DC
Quick Disconnect Type
7/8 in. (Mini)
Sensing Beam Wavelength
880
Barrel Diameter (mm)
30
Outputs
Bipolar (NPN & PNP)
Min Op. Temp. (°C)
-40
Repeatability (µs)
500
Indicator
LEDs
IO Link
No
Input/Output
Discrete
Output response time (ms)
2
Max Op. Relative Humidity [%]
90% @ 50°C
Feature: Audible
No
Primary Housing Material
Thermoplastic
Max Op. Temp. (°C)
70
IP Rating
IP67
Feature: Hazardous Area
No
Sensing Mode (General)
Proximity
Special Feature: Remote Teach
No
Adjustments
Potentiometer
DeviceNet
No
