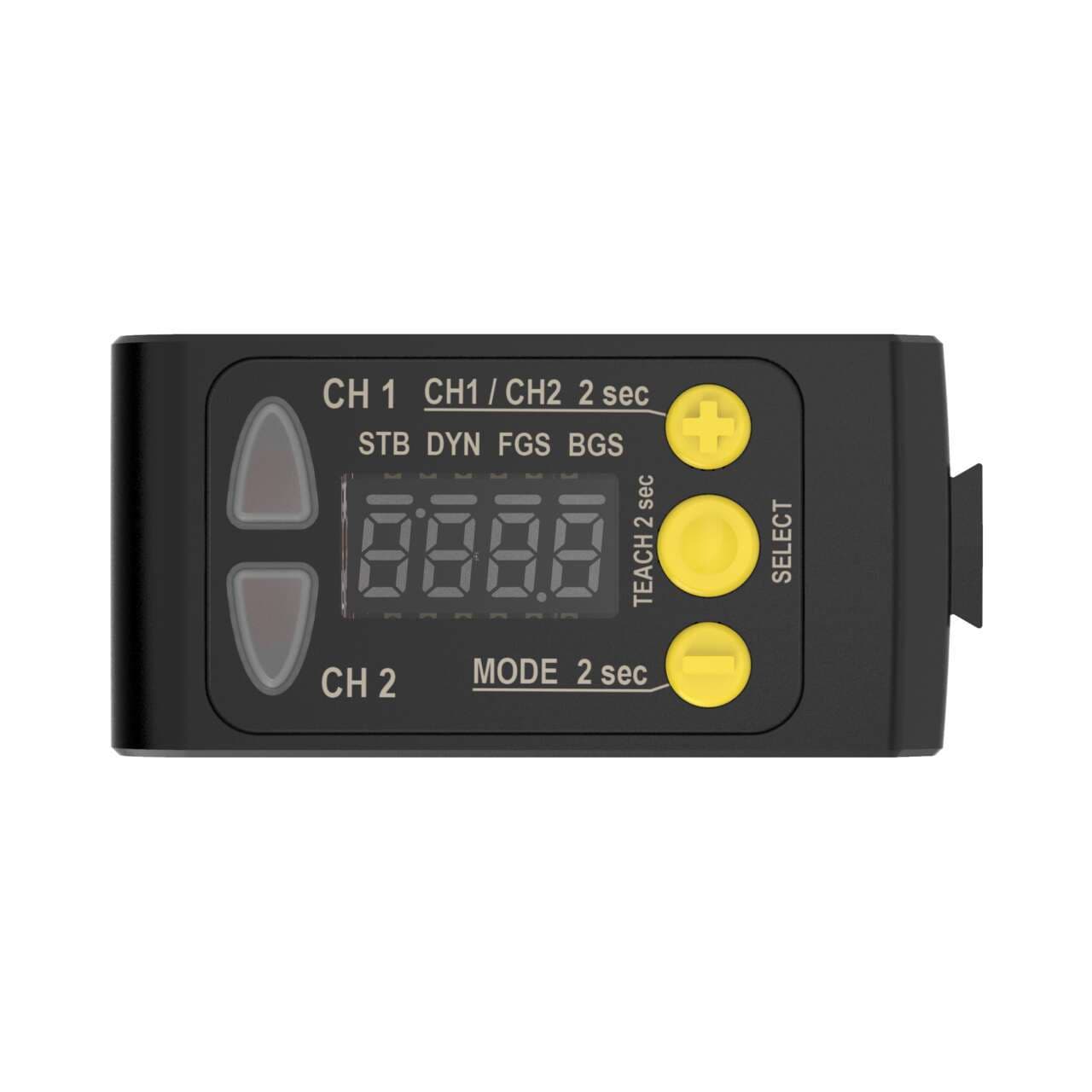

Q5XKLAF2000-Q8-JAM Banner Proximity Sensors

Product Details

• Weight
  117.93392 g
• Country Of Origin
  US
• Device Type
  Sensor
• Sensing Mode (General)
  Proximity
• Delay at Power-up (ms)
  2500
• Mechanical Shock
  MIL-STD-202G, Meth. 213B, Cond. I (100G 6x along X, Y & Z axes, 18 total shocks) w/ sensor operating
• Min Operating Temperature (°C)
  -10
• RS-232
  No
• Sensing Mode (Detailed)
  Background/Foreground Suppression
• Quick Disconnect Type
  M12 (Euro)
• Sensing Beam Wavelength (nm)
  650
• Output Saturation Voltage PNP Outputs
  < 2.5 V @ 50 mA
• Feature: Remote Teach
  Yes
• Storage Temperature (°C)
  -25 to 70
• Laser Control
  Yes
• IO Link
  Yes
• Input/Output
  Discrete
• Indicator
  Display; LED(s)
• Temperature Effect (mm/°C)
  < +/- 0.5 mm/°C < 500 mm,< +/- 1.0 mm/°C at < 1000 mm, < +/- 2.0 mm/°C at < 2000 mm
• Max Discrete (Switched) Output (mA)
  50
Minimum Window Size (mm)
1
Max Measurement Range
>1 m - <=20 m
Minimum Sensing Distance (mm)
95
Connection
Integral QD
Feature: Chemical Resistant
No
Jam Detection
Yes
Vibration
MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Max Operating Temperature (°C)
50
Minimum Response Time (ms)
3
PROFINET
No
Profibus
No
PFM Output
Yes
Laser Classification
Class 2
Power Supply
10-30 V dc
IP Rating
IP67
Discrete Output Hysteresis (mm)
Automatically adjusted
Common Ethernet Protocol
No
Housing Style
Rectangular
PC Configurable
No
Power
DC
Analog Resolution/Discrete Repeatability
95mm to 300mm: +/-0.5; 300mm to 1m: +/- 0.25% of range;1m to 2m: +/- 0.5% of range
Discrete (Switched) Outputs
2 NPN/PNP Configurable
Number of Pins
4
Output Protection
Protected against continuous overload and short circuit
Window Material
PMMA
Spot Size (@ Reference Distance)
6.0 mm x 3.6 mm @ 2000 mm
Power/Current Consumption (exclusive of load)
< 1 W
Wireless
No
Sensing Beam
Visible Red Laser
Primary Housing Material
ABS
Max Sensing Distance (mm)
2000
Output Saturation Voltage NPN Outputs
< 2.5 V @ 50 mA
Adjustments
Push Button; Remote Teach
Warm-up Time (minutes)
10
Feature: Clear Object Detection
Yes
1-wire Serial Interface
No
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
RS-485
No
Max Op. Relative Humidity Non-Condensing (%)
95 at 50°C
Max Ambient Light (Lux)
up to 5000 lux at 1000 mm and up to 2000 lux at 2000 mm
RS-422
No
Feature: Timing (Hold/Delay)
Yes
SSI
No
