Powermatic Associates Logo

QMH26VPAF400-5M Banner Electronic Components

QMH26VPAF400-5M on Powermatic Associates
Banner

Part#:QMH26VPAF400-5M

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

Banner Engineering QMH26VPAF400-5M is an adjustable-field photo-electric sensor designed for precise detection tasks. It operates within an ambient air temperature range of -30 to +70°C and features a background suppression system with screw adjustment. This sensor is FDA compliant, suitable for washdown environments, and has a hygienic shape, making it ideal for food and beverage applications. It comes pre-wired with a 5-meter cable that terminates with bare end flying leads for easy installation. Part of the QMH26 series, it offers an IP69K degree of protection against ingress, ensuring durability in harsh conditions. The sensor operates on a supply voltage of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. Its rectangular shape is constructed from stainless steel housing and Polymethyl methacrylate (PMMA) lens, ensuring robustness. With a sensing distance of 400mm and visible red light at a wavelength of 620 nm, it supports both Light-ON and Dark-ON operating modes. The sensor includes 1 x digital output (PNP transistor; complementary NO/NC) and boasts a rapid response time of 0.5ms.

Product Details

  • Main function
    Sensor (Photo-electric)
  • Sub-range name
    QMH26
  • Wavelength
    620 nm
  • Digital outputs
    1 x digital output (PNP transistor)
  • Sensing distance
    400mm
  • Material
    Stainless steel housing PMMA lns.
  • Equivalent to
    QMH26VPAF4005M
  • Design
    background suppression system FDA compliant (washdown rated + hygienic shape)
  • Shape
    Rectangular
  • Response time
    0.5ms / 0.0005 s
  • Order code / Manufacturer SKU
    28782
  • Primary brand
    Banner Engineering
  • Product series / family name
    Q series
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Light Color
    Visible red
  • Operating mode
    Light-ON Dark-ON
  • Ambient air temperature for operation
    -30...+70 °C
  • Functions
    Adjustable-field photo-electric sensor green LED (power ON) yellow LED (output state) screw adjustment
  • Connection type
    Pre-wired with 5m cable terminated with bare end flying leads
  • Degree of protection
    IP69K
  • Small Visible Spot
    LED
  • Housing Style
    Rectangular
  • Max Op. Temp. (°C)
    70
  • NEMA Rating
    N/A
  • Feature: Ecolab Certified
    Yes
  • Sensing Mode (Detailed)
    Background Suppression (Adjustable)
  • Min Op. Temp. (°C)
    -30
  • Sensing Beam Wavelength
    620
  • Feature: Washdown Rated
    Yes
  • Cable Length (m)
    5
  • Connection
    Cable
  • Delay at Power-up (ms)
    300
  • Feature: Timing (Hold/Delay)
    No
  • Power
    DC
  • Max Sensing Distance (mm)
    400
  • Special Feature: Water Detection
    No
  • Barrel Diameter (mm)
    N/A
  • Feature: Audible
    No
  • Outputs
    PNP
  • Special Feature: Intrinsically Safe
    No
  • IP Rating
    IP69
  • Feature: Quick Disconnect
    No
  • Input/Output
    Discrete
  • Output response time (ms)
    0.5
  • Adjustments
    Screw Adjustment
  • IO Link
    No
  • Sensing Beam
    Visible Red LED
  • Power Supply/Supply Voltage
    10-30 V dc
  • Number of Pins
    4
  • Indicator
    LEDs
  • DeviceNet
    No
  • Primary Housing Material
    Stainless Steel
  • Special Feature: Remote Teach
    No
  • Max Op. Relative Humidity [%]
    95% @ 55°C
  • Feature: Encapsulated
    No
  • Sensing Mode (General)
    Proximity
  • Operation
    Light/Dark Operate
  • Repeatability (µs)
    150
  • Feature: Chemical Resistant
    Yes
  • Quick Disconnect Type
    No QD
  • Lens Material
    PMMA
  • Feature: Hazardous Area
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

QMH26VPAF400-5M Related Documents

Banner Engineering - QM26 - QMH26 series - Datasheet.pdfBanner Engineering - QM26 - QMH26 series - Datasheet.pdf

Similar products from: Banner Electronic Components

WLAW360X180DQ on Powermatic Associates

WLAW360X180DQ

Banner

Banner Engineering WLAW360X180DQ is an industrial LED area light designed with a diffused window for 1-color Cool White (W) LED illumination. It operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The dimensions of this task light are L180mm x W360mm, featuring an acrylic diffused window and PBT housing. It comes pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. The rectangular-shaped light offers a degree of protection rated at IP67 and IP69K, suitable for surface or wall mounting. It can operate in ambient air temperatures ranging from -20°C to +50°C and includes 1 x digital input (12Vdc / 24Vdc) for color control.

4 in stock

Manufacturer warranty

QMH26VPAF400-5M Banner

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare QMH26VPAF400-5M with other Electronic Components products

Main function

Sub-range name

Wavelength

Digital outputs

Sensing distance

Material

Equivalent to

Design

Shape

Response time

Selected product

QMH26VPAF400-5M
Backordered
QMH26VPAF400-5M
Banner

Banner Engineering QMH26VPAF400-5M is an adjustable-field photo-electric sensor designed for precise...

Main functionSensor (Photo-electric)

Sub-range nameQMH26

Wavelength620 nm

Digital outputs1 x digital output (PNP tran...

Sensing distance400mm

MaterialStainless steel housing PMMA...

Equivalent toQMH26VPAF4005M

Designbackground suppression syste...

ShapeRectangular

Response time0.5ms / 0.0005 s

FSA1
1 in stock
FSA1
Eaton

Eaton Crouse-Hinds series Condulet FS device box, Shallow, Feraloy iron alloy, Single-gang, A shape,...

Main function-

Sub-range name-

Wavelength-

Digital outputs-

Sensing distance-

Material-

Equivalent to-

Design-

ShapeA

Response time-

WLAW360X180DQ
4 in stock
WLAW360X180DQ
Banner

Banner Engineering WLAW360X180DQ is an industrial LED area light designed with a diffused window for...

Main function-

Sub-range name-

Wavelength-

Digital outputs-

Sensing distance-

Material-

Equivalent to-

Design-

Shape-

Response time-

About the manufacturer

Banner

Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...

Recently viewed products

MDI1FRD23A7-N on Powermatic Associates

MDI1FRD23A7-N

Novanta IMS

Novanta IMS MDI1FRD23A7-N is a stepper motor within the Stepper motors sub-range, featuring an integrated driver and a 2-phase DC stepper motor design. It includes a rear control knob and a single motor stack in its Plus version, which encompasses standard features. This part offers a connection through 30cm / 12" bare end flying leads with a 10-pin IDC non-locking connector. It supports RS-422 and RS-485 communication protocols. The supply voltage requirement ranges from 12Vdc to 75Vdc, with optimal performance at 24Vdc, 48Vdc, and 72Vdc. It is designed for mounting with a 57x57mm flange. The operational ambient air temperature range is from 0 to +85°C. It has an IP20 degree of protection, a moment of inertia of 0.18kg.cm^2, a stall torque of 64N.cm, and a resolution characterized by a 1.8° step angle.

0 in stock

Relevant products

QMH26VNAF200-5M on Powermatic Associates

QMH26VNAF200-5M

Verified stock: 0

Banner Engineering QMH26VNAF200-5M is an adjustable-field photo-electric sensor designed with a background suppression system and screw adjustment. It operates within an ambient air temperature range of -30 to +70°C and is FDA compliant, featuring a washdown rated and hygienic shape suitable for sensitive environments. This sensor is pre-wired with a 5m cable terminated with bare end flying leads, ensuring easy installation. Part of the QMH26 series, it offers an IP69K degree of protection, making it highly resistant to dust and water ingress. It requires a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. The sensor's rectangular shape is constructed from a stainless steel housing and Polymethyl methacrylate (PMMA) lens, ensuring durability. It has a sensing distance of 200mm and utilizes visible red light with a wavelength of 660 nm. The operating modes include Light-ON and Dark-ON, with a digital output (NPN transistor; complementary NO/NC) and a rapid response time of 0.5ms / 0.0005 s.

Banner

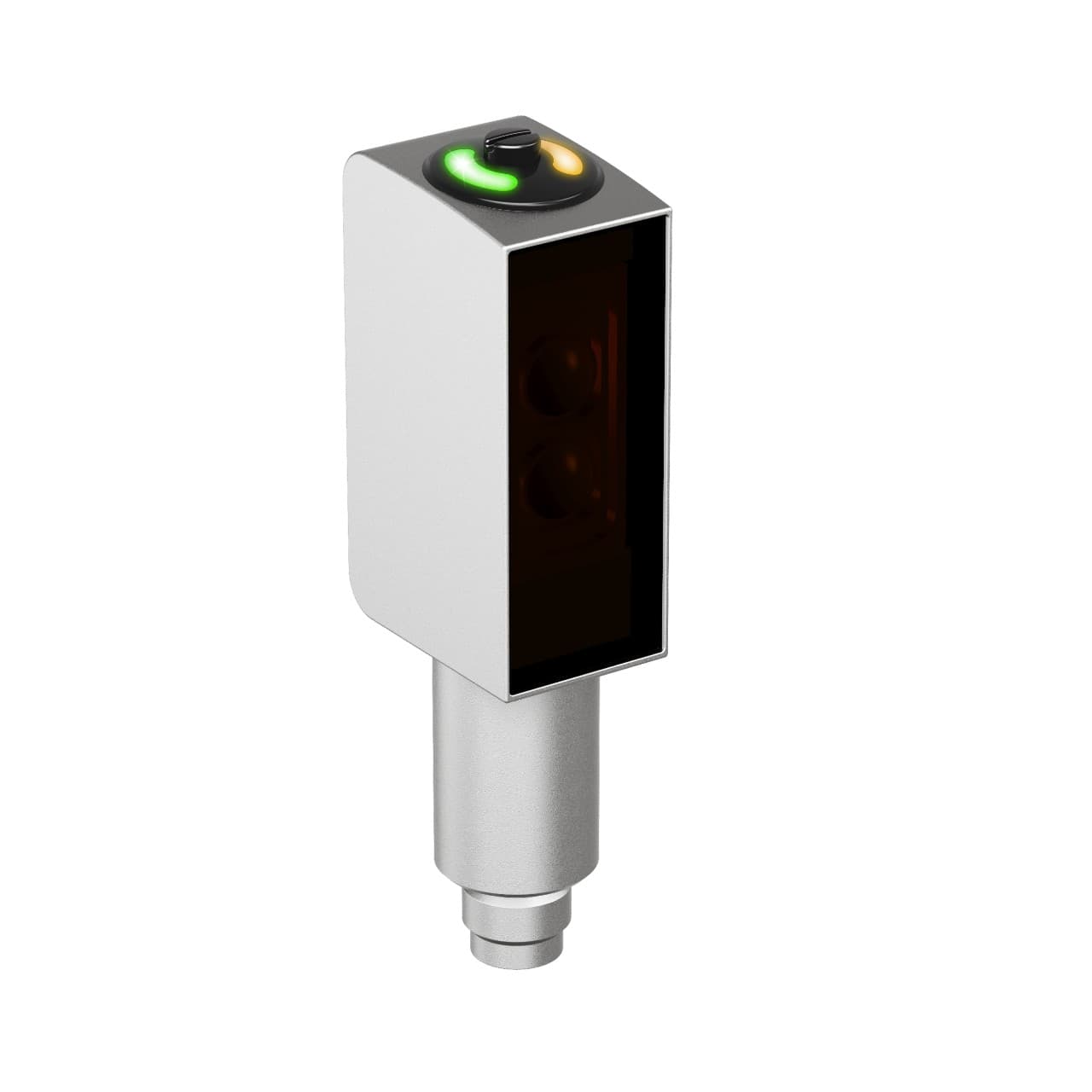

QMH26VNAF400Q7 on Powermatic Associates
