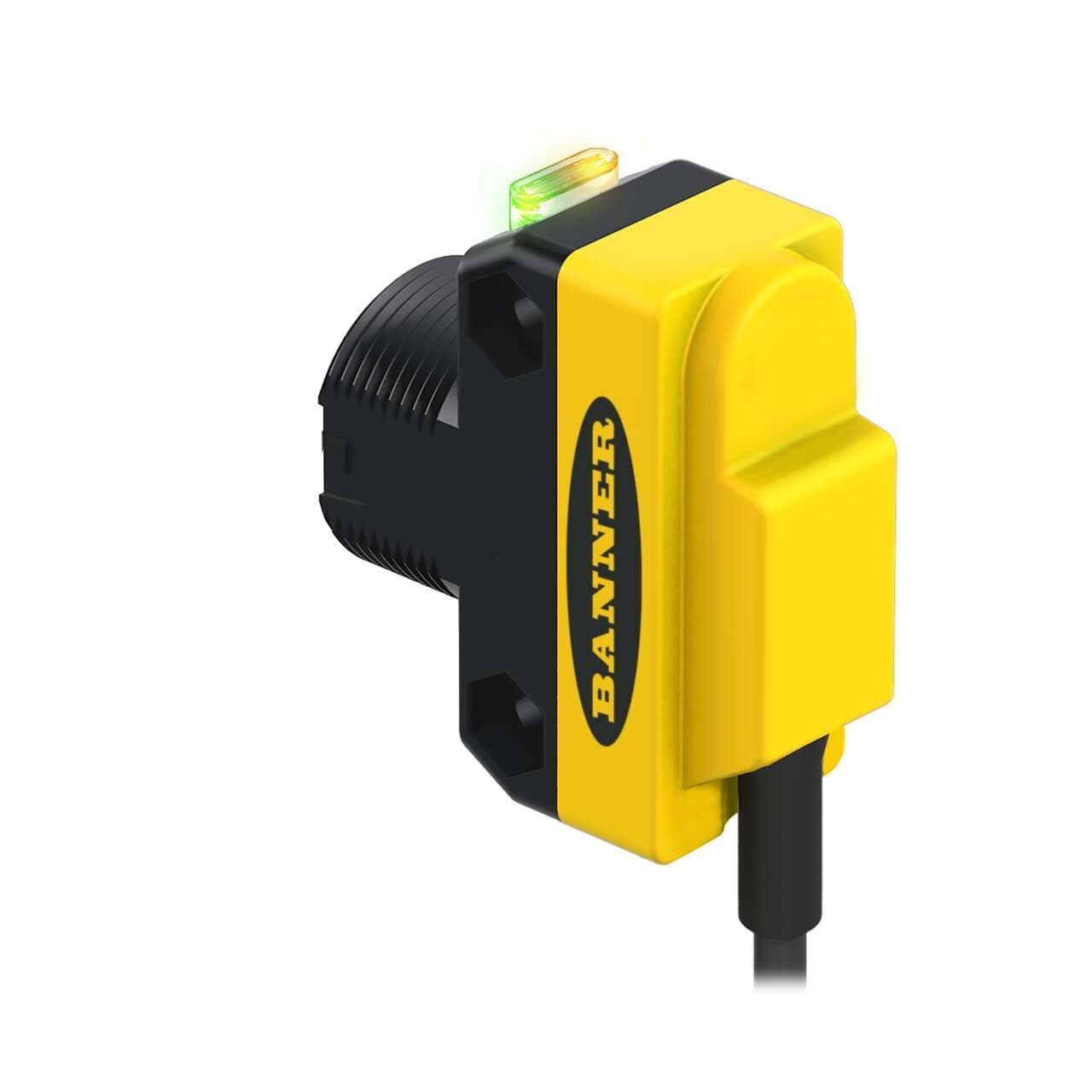

QS186LE11Q5 Banner Proximity Sensors

Product Details

• Weight
  72.57472 g
• Country Of Origin
  MX
• Sub-range name
  QS186LE series
• Primary brand
  Banner Engineering
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Mounting mode
  Threaded mount
• Ambient air temperature for operation
  -10...+50 °C
• Light Color
  Visible red
• Wavelength
  650 nm
• Order code / Manufacturer SKU
  71331
• Product series / family name
  WORLD-BEAM series
• Functions
  Class 1 Laser photo-electric emitter green LED (power ON) yellow LED (light sensed)
• Thread size
  M18
• Compliant with standard(s)
  CE
• Main function
  Sensor (Photo-electric)
• Design
  opposed (vertical) system
• Connection type
  Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
• Degree of protection
  IP67 NEMA 6
• Shape
  Rectangular
• Material
  thermoplastic housing PMMA lns.
Power
DC
Operation
N/A
Repeatability (µs)
N/A
Indicator
LEDs
IO Link
No
DeviceNet
No
Max Sensing Distance (mm)
15000
Power Supply/Supply Voltage
10-30 V dc
Primary Housing Material
ABS
Sensing Beam
Visible Red Laser
Sensing Mode (Detailed)
Laser Emitter
Housing Style
Rectangular w/M18 Mount
Sensing Mode (General)
Opposed
Small Visible Spot
Laser
Laser Classification
Class 1
Feature: Timing (Hold/Delay)
No
IP Rating
IP67
Feature: Audible
No
Feature: Hazardous Area
No
Lens Material
PMMA
Adjustments
N/A
Barrel Diameter (mm)
18
Opposed Mode Emitter/Receiver
Emitter
Feature: Chemical Resistant
No
Feature: Quick Disconnect
Yes
Number of Pins
4
NEMA Rating
NEMA 6
Feature: Encapsulated
No
Output response time (ms)
N/A
Sensing Beam Wavelength
650
Connection
Pigtail QD
Delay at Power-up (ms)
250
Max Op. Temp. (°C)
50
Quick Disconnect Type
M12 (Euro)
Special Feature: Remote Teach
No
Special Feature: Intrinsically Safe
No
Outputs
N/A
Min Op. Temp. (°C)
-10
Special Feature: Water Detection
No
Max Op. Relative Humidity [%]
95% @ 50°C
