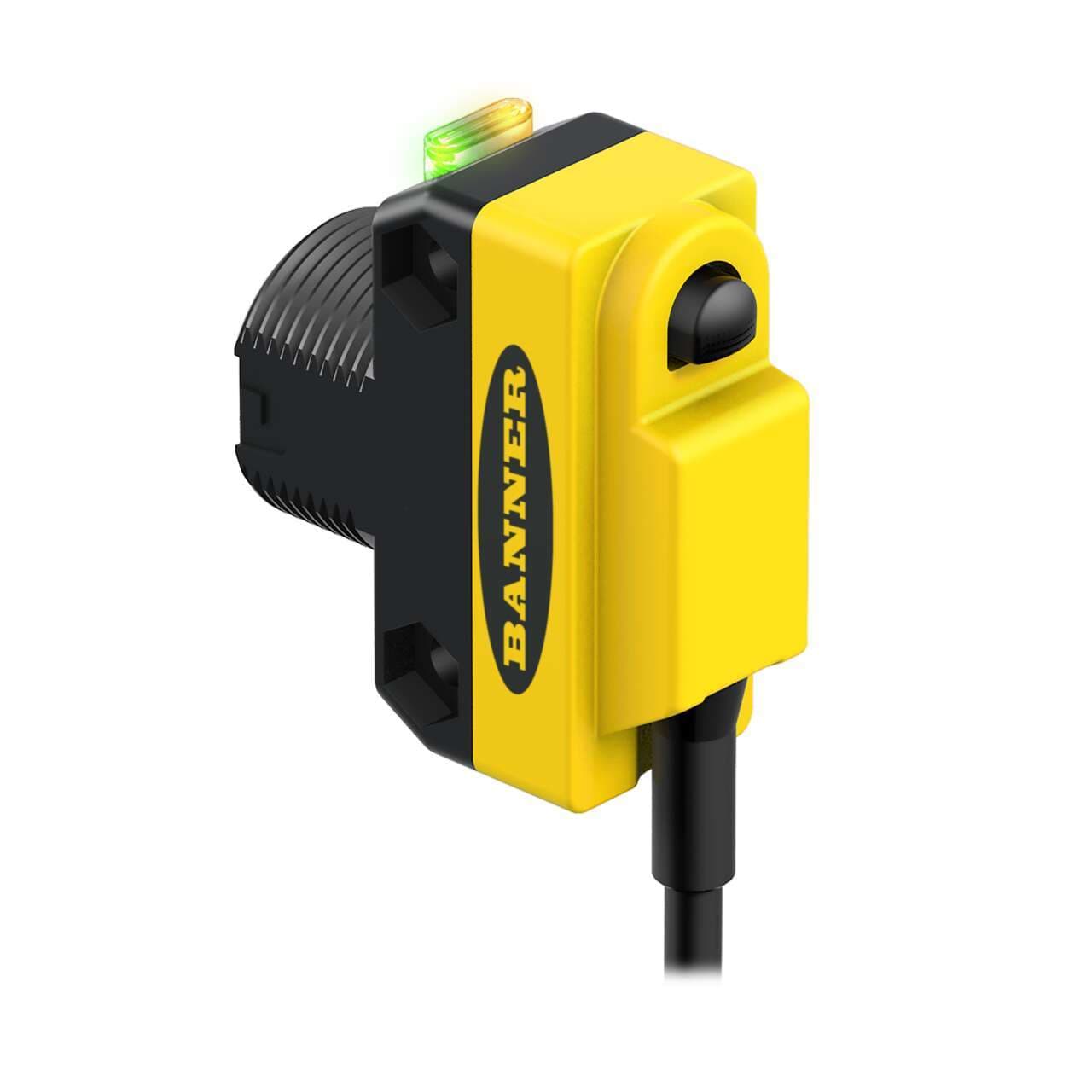

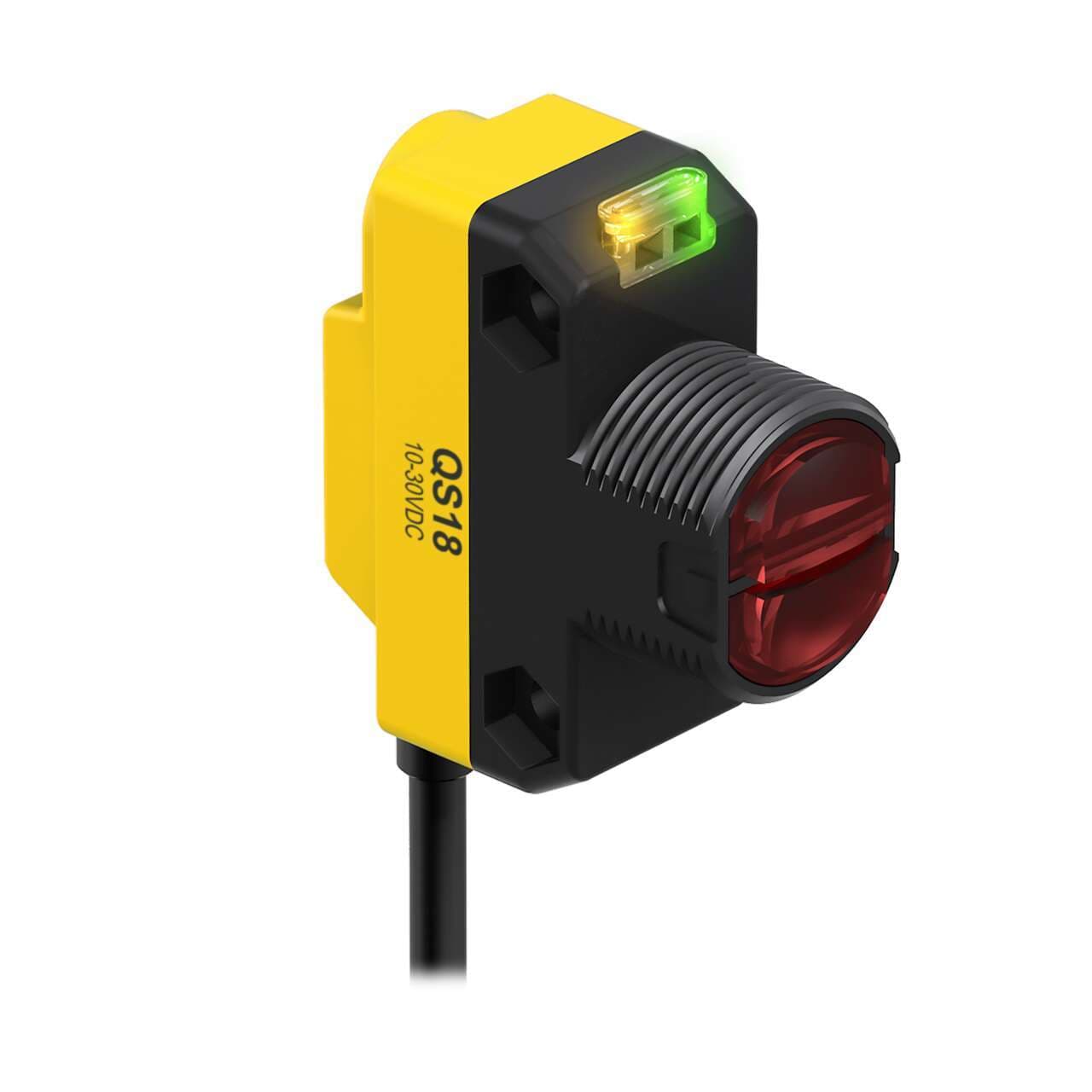

QS18EN6CV45Q Banner Proximity Sensors

Product Details

• Weight
  54.43104 g
• Country Of Origin
  US
• Feature: Quick Disconnect
  Yes
• IO Link
  No
• Adjustments
  Teach Button
• Feature: Hazardous Area
  No
• Max Op. Relative Humidity [%]
  95% @ 50°C
• Special Feature: Remote Teach
  Yes
• DeviceNet
  No
• Barrel Diameter (mm)
  18
• Feature: Chemical Resistant
  No
• Feature: Audible
  No
• Feature: Timing (Hold/Delay)
  Yes
• Feature: Encapsulated
  No
• Indicator
  LEDs
• Lens Material
  PMMA
• IP Rating
  IP67
• NEMA Rating
  NEMA 6
• Repeatability (µs)
  75
• Number of Pins
  4
Sensing Beam Wavelength
630
Delay at Power-up (ms)
100
Special Feature: Water Detection
No
Special Feature: Intrinsically Safe
No
Min Op. Temp. (°C)
-20
Output response time (ms)
0.6
Quick Disconnect Type
M8 (Pico)
Max Op. Temp. (°C)
70
Operation
Light/Dark Operate
Connection
Pigtail QD
Power Supply/Supply Voltage
10-30 V dc
Input/Output
Discrete
Housing Style
Rectangular w/M18 Mount
Sensing Mode (General)
Proximity
Primary Housing Material
ABS
Outputs
NPN
Max Sensing Distance (mm)
43
Power
DC
Sensing Beam
Visible Red LED
Sensing Mode (Detailed)
Convergent
Main function
Sensor (Photo-electric)
Sensing distance
43mm
Light Color
Visible red
Design
convergent mode
Connection type
Pre-wired with 6" / 150mm pigtail terminated with 4-pin Pico-style M8 connector
Digital outputs
1 x digital output (NPN transistor)
Primary brand
Banner Engineering
Sub-range name
QS18 Expert series
Thread size
M18
Product series / family name
WORLD-BEAM series
Supply voltage (DC)
10Vdc-30Vdc (12Vdc / 24Vdc nom.)
Shape
Rectangular
Degree of protection
IP67 NEMA 6
Order code / Manufacturer SKU
68749
Functions
Photo-electric sensor green LED (power ON) yellow LED (light sensed) TEACH mode
Mounting mode
Threaded mount
Compliant with standard(s)
cURus CE
Operating mode
Light-ON Dark-ON
Ambient air temperature for operation
-20...+70 °C
Response time
0.6ms / 0.0006 s
Material
thermoplastic housing PMMA lns.
