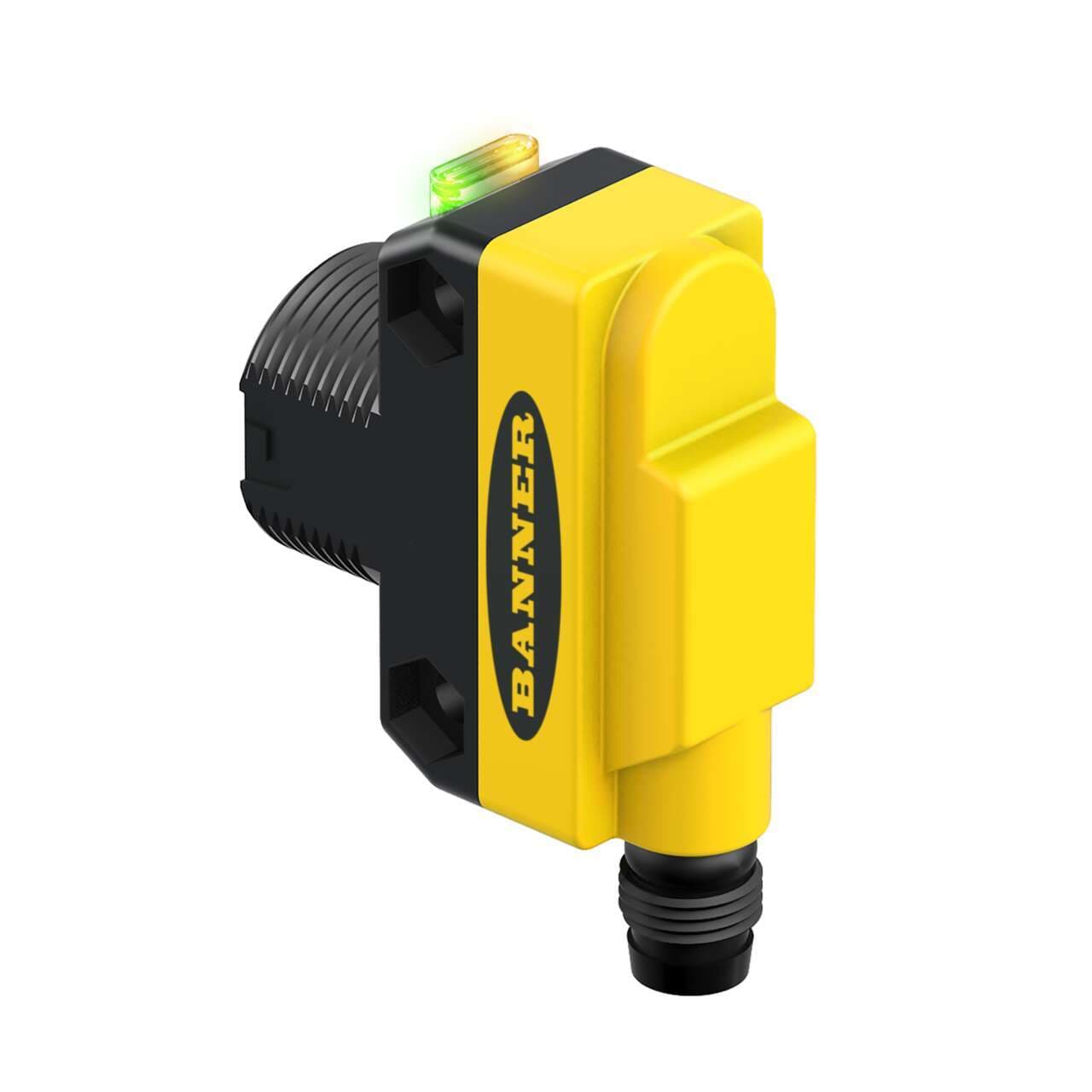

QS18VN6FF100Q7 Banner Proximity Sensors
Part#:QS18VN6FF100Q7
Alt. Part#:71879
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS18 Series: Fixed-Field; Range: 100 mm cutoff; Output: Complementary Solid-State NPN; M8 Integral QD
Product Details
- Weight 68.0388 g
- Country Of Origin MX
- Special Feature: Remote Teach No
- Indicator LEDs
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Power Supply/Supply Voltage 10-30 V dc
- Number of Pins 4
- Feature: Chemical Resistant No
- Housing Style Rectangular w/M18 Mount
- Max Op. Temp. (°C) 70
- NEMA Rating NEMA 6
- Feature: Audible No
- Power DC
- Quick Disconnect Type M8 (Pico)
- Sensing Beam Wavelength 630
- Feature: Encapsulated No
- DeviceNet No
- Sensing Mode (General) Proximity
- Outputs NPN
- Special Feature: Water Detection No
- IP Rating IP67
- Input/Output Discrete
- Special Feature: Intrinsically Safe No
- Feature: Timing (Hold/Delay) No
- Primary Housing Material ABS
- Connection Integral QD
- Delay at Power-up (ms) 100
- Barrel Diameter (mm) 18
- IO Link No
- Max Sensing Distance (mm) 100
- Min Op. Temp. (°C) -20
- Adjustments N/A
- Small Visible Spot LED
- Output response time (ms) 0.85
- Feature: Hazardous Area No
- Max Op. Relative Humidity [%] 95% @ 50°C
- Sensing Beam Visible Red LED
- Operation Light/Dark Operate
- Repeatability (µs) 160
- Lens Material Acrylic
- Feature: Quick Disconnect Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VN6FF100Q7 on Powermatic Associates is $102.00. Order now.
About the product

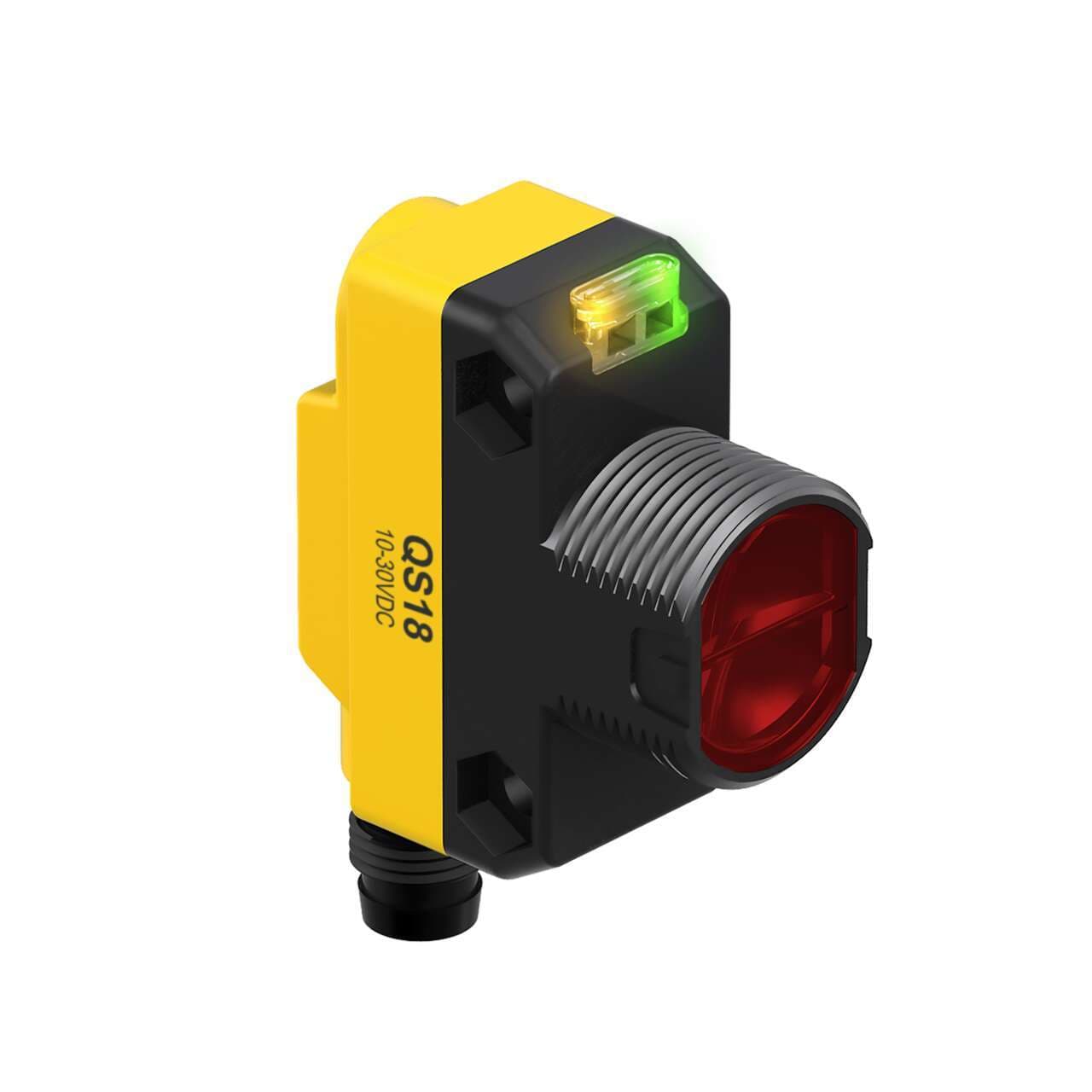

Banner Engineering QS18VN6FF100Q7 is a fixed-field photo-electric sensor designed with a background suppression system and an M18 threaded mount for secure installation. This sensor operates within an ambient air temperature range of -20 to +70°C and is housed in a durable thermoplastic with an acrylic lens. It features a pre-equipped 4-pin Pico-style M8 connector for straightforward connectivity. Part of the QS18 series, it offers a degree of protection rated at IP67 NEMA 6, ensuring resistance to dust and water ingress. The sensor operates on a supply voltage of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. Its rectangular shape is designed for versatile application, and it can detect objects within a 100mm sensing distance using visible red light. The QS18VN6FF100Q7 supports both Light-ON and Dark-ON operating modes and includes a single digital output (NPN transistor; complementary NO/NC) with a rapid response time of 0.85ms / 0.00085 s.
