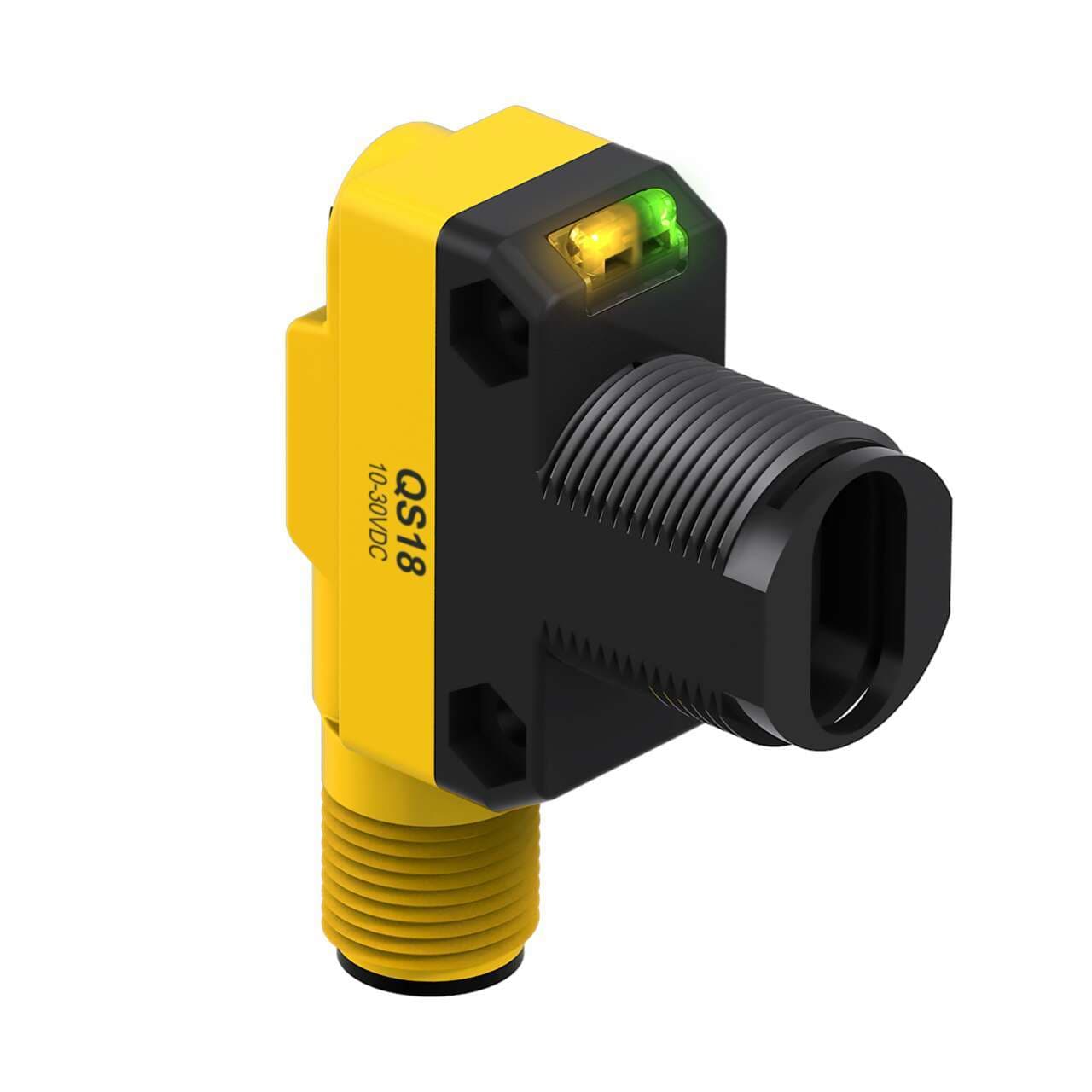

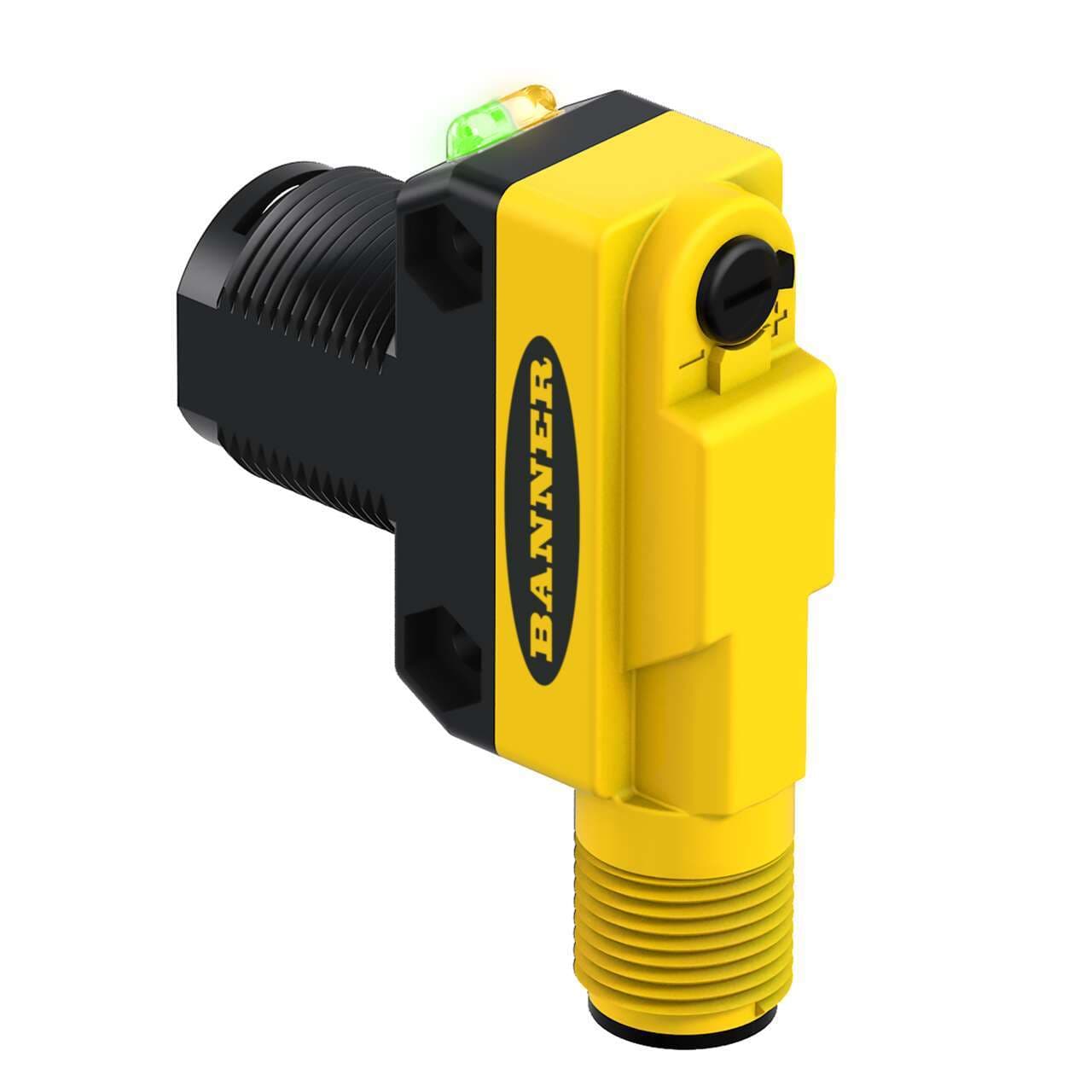

QS18VN6FQ8 Banner Proximity Sensors
Part#:QS18VN6FQ8
Alt. Part#:71782
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS18Series: Glass Fiber; Range: Depends on Fiber; Input: 10-30 V dc; Output: Complementary Solid-State NPN; M12 Integral QD
Product Details
- Weight 45.3592 g
- Country Of Origin MX
- Sub-range name QS18 series
- Digital outputs 1 x digital output (NPN transistor)
- Main function Amplifier for sensor
- Primary brand Banner Engineering
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Degree of protection IP67 NEMA 6
- Shape Rectangular
- Mounting mode Threaded mount
- Ambient air temperature for operation -20...+70 °C
- Product series / family name WORLD-BEAM series
- Light Color Infrared (IR)
- Thread size M18
- Functions Fiber optic sensor amplifier green LED (power ON) yellow LED (light sensed) potentiometer adjustment
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Material thermoplastic housing Glass fiber
- Order code / Manufacturer SKU 71782
- Primary Housing Material Thermoplastic
- Output Type (Specific) Single Discrete
- Adjustments Potentiometer
- IO Link No
- Output NPN
- NEMA Rating NEMA 6
- Delay at Power-up (ms) 100
- Feature: Timing (Hold/Delay) No
- Housing Style Rectangular w/M18 Mount
- Number of Pins 4
- Min Op. Temperature (°C) -20
- Feature: Audible No
- Quick Disconnect Type M12 (Euro)
- Input/Output Discrete
- Max Op. Relative Humidity (%) 95% @ 50°C
- Special Feature: Bussable Power No
- Power DC
- Repeatability (µs) 150
- Indicator Display Type Indicator LEDs
- Housing Material Thermoplastic
- Connection Integral QD
- Special Feature: Remote Teach No
- Power Supply/Supply Voltage 10-30 V dc
- Color LED - Amplifiers Infrared
- IP Rating IP67
- Minimum response time (ms) .6
- Fiber Type Glass Only
- Max Op. Temperature (°C) 70
- Intrinsically Safe No
- Feature: Hazardous Area No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VN6FQ8 on Powermatic Associates is $90.00. Order now.
About the product
Banner Engineering QS18VN6FQ8 is an amplifier for sensors, specifically designed for fiberoptic sensor amplification. It features an M18 threaded mount for secure installation and operates within an ambient air temperature range of -20 to +70°C. The design includes a potentiometer for adjustment, which varies based on the sensing mode and the fiber optics utilized. This part is pre-equipped with a 4-pin Euro-style M12 connector for straightforward connectivity. As part of the QS18 series, it boasts a degree of protection rated at IP67 NEMA 6, ensuring durability in various environments. The supply voltage requirement is between 10Vdc and 30Vdc, with nominal values at 12Vdc and 24Vdc. Its rectangular shape is constructed from a thermoplastic housing with glass fiber, and it utilizes infrared (IR) light. The QS18VN6FQ8 offers a digital output (1 x NPN transistor; complementary NO/NC) and has a rapid response time of 0.6ms / 0.0006 s.
