QS18VP6CV45 W/30 Banner Proximity Sensors

Name: QS18VP6CV45 W/30
Brand: Banner
Price: 121 USD
Availability: BackOrder

QS18VP6CV45 W/30 on Powermatic Associates

Part#:QS18VP6CV45 W/30

Alt. Part#:61650

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

WORLD-BEAM QS18 Series: Convergent; Focal Point: 43 mm; Input: 10-30 V dc; Output: Complementary Solid-State PNP; 9 m (30 ft) Cable

Product Details

Weight
181.4368 g
Country Of Origin
MX
DeviceNet
No
IO Link
No
Feature: Quick Disconnect
No
Indicator
LEDs
Barrel Diameter (mm)
18
Feature: Audible
No
Feature: Encapsulated
No
Feature: Chemical Resistant
No
Feature: Timing (Hold/Delay)
No
Feature: Hazardous Area
No
Adjustments
Potentiometer
Lens Material
Acrylic
Max Op. Relative Humidity [%]
95% @ 50°C
IP Rating
IP67
NEMA Rating
NEMA 6
Number of Pins
4
Repeatability (µs)
150
Special Feature: Water Detection
No

Delay at Power-up (ms)

100

Sensing Beam Wavelength

630

Special Feature: Remote Teach

Special Feature: Intrinsically Safe

Min Op. Temp. (°C)

-20

Output response time (ms)

0.6

Max Op. Temp. (°C)

Power Supply/Supply Voltage

10-30 V dc

Operation

Light/Dark Operate

Connection

Cable

Quick Disconnect Type

No QD

Outputs

PNP

Sensing Mode (General)

Proximity

Sensing Mode (Detailed)

Convergent

Max Sensing Distance (mm)

Power

Sensing Beam

Visible Red LED

Cable Length (m)

Input/Output

Discrete

Primary Housing Material

ABS

Housing Style

Rectangular w/M18 Mount

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VP6CV45 W/30 on Powermatic Associates is $121.00. Order now.

About the product

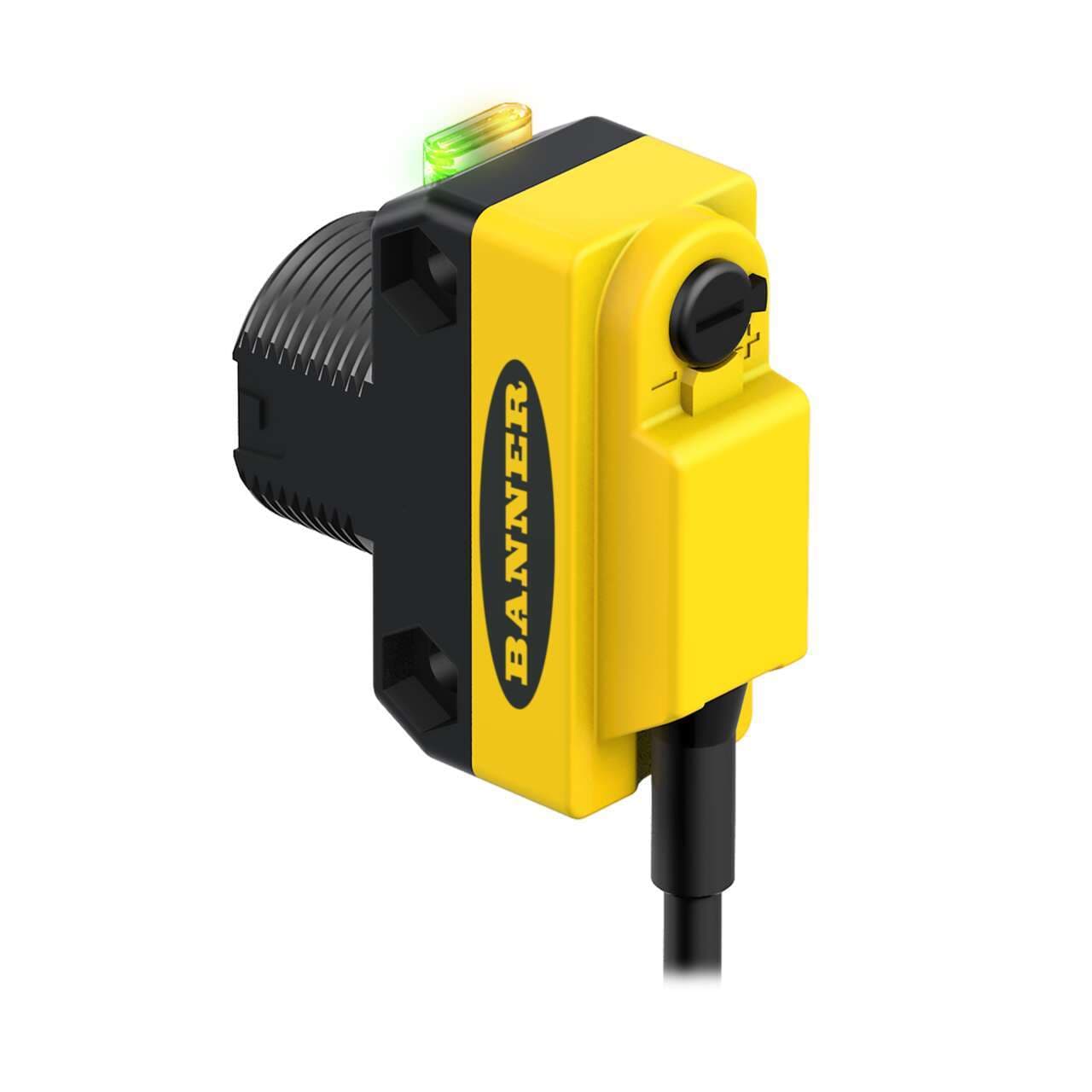

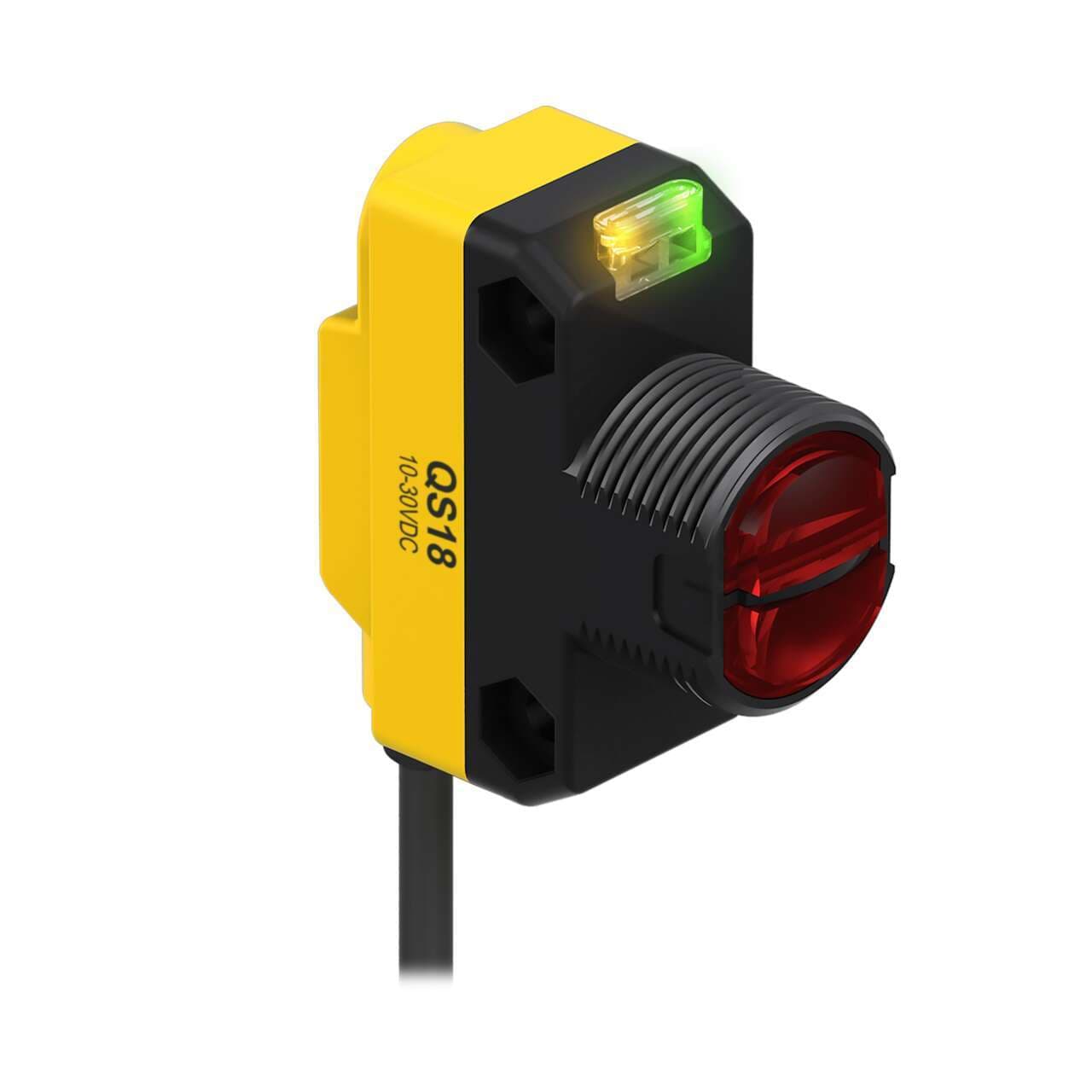

Banner Engineering QS18VP6CV45 W/30 is a photo-electric sensor designed for precision detection tasks. It features a convergent mode with potentiometer adjustment and is equipped with a pre-wired 30ft / 9m cable that terminates with bare end flying leads for easy installation. This sensor operates within an ambient air temperature range of -20 to +70°C and is housed in a thermoplastic casing with an acrylic lens, ensuring durability. It belongs to the QS18 series and offers a sensing distance of 43mm with visible red light for easy alignment. The QS18VP6CV45 W/30 operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values, and provides one digital output (PNP transistor; complementary NO/NC) with a rapid response time of 0.6ms. Its design is rectangular, featuring an M18 threaded mount for secure attachment, and it is protected against ingress with an IP67 NEMA 6 rating, making it suitable for a wide range of industrial applications.
