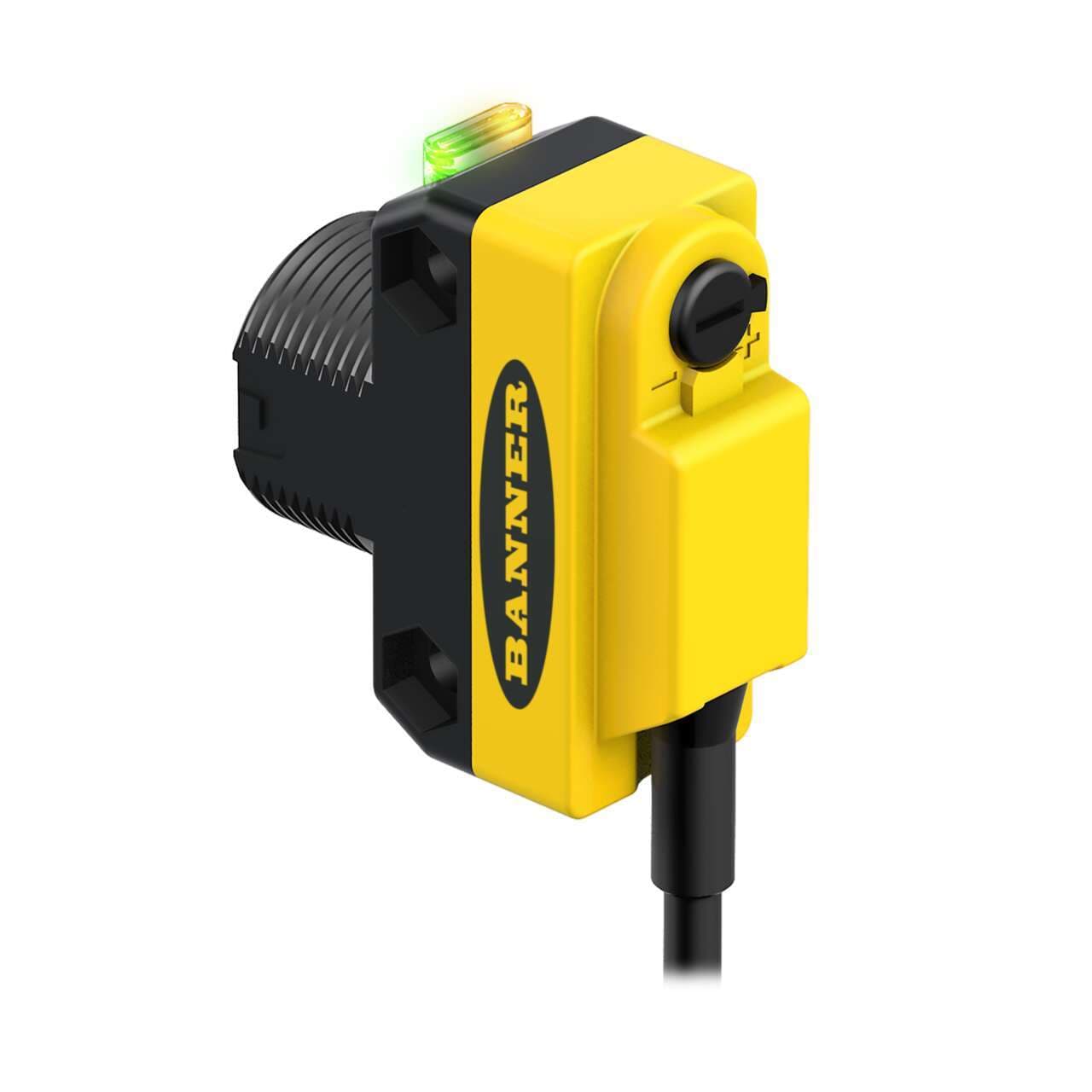

QS18VP6CV45 Banner Proximity Sensors

Product Details

• Weight
  81.64656 g
• Country Of Origin
  MX
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Main function
  Sensor (Photo-electric)
• Design
  convergent mode
• Response time
  0.6ms / 0.0006 s
• Ambient air temperature for operation
  -20...+70 °C
• Primary brand
  Banner Engineering
• Functions
  Photo-electric sensor green LED (power ON) yellow LED (light sensed) potentiometer adjustment
• Connection type
  Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
• Light Color
  Visible red
• Degree of protection
  IP67 NEMA 6
• Mounting mode
  Threaded mount
• Compliant with standard(s)
  cURus CE
• Operating mode
  Light-ON Dark-ON
• Material
  thermoplastic housing Acrylic lns.
• Order code / Manufacturer SKU
  61648
• Product series / family name
  WORLD-BEAM series
• Sensing distance
  43mm
• Thread size
  M18
Digital outputs
1 x digital output (PNP transistor)
Sub-range name
QS18 series
Shape
Rectangular
Power
DC
Power Supply/Supply Voltage
10-30 V dc
Number of Pins
4
Adjustments
Potentiometer
IO Link
No
Output response time (ms)
0.6
IP Rating
IP67
Feature: Audible
No
Primary Housing Material
ABS
Input/Output
Discrete
Special Feature: Intrinsically Safe
No
Max Op. Relative Humidity [%]
95% @ 50°C
DeviceNet
No
Feature: Hazardous Area
No
Sensing Beam
Visible Red LED
Connection
Cable
Delay at Power-up (ms)
100
Lens Material
Acrylic
Cable Length (m)
2
Operation
Light/Dark Operate
Sensing Beam Wavelength
630
Feature: Chemical Resistant
No
Sensing Mode (Detailed)
Convergent
Quick Disconnect Type
No QD
NEMA Rating
NEMA 6
Indicator
LEDs
Feature: Quick Disconnect
No
Max Sensing Distance (mm)
43
Max Op. Temp. (°C)
70
Special Feature: Water Detection
No
Feature: Timing (Hold/Delay)
No
Sensing Mode (General)
Proximity
Outputs
PNP
Repeatability (µs)
150
Barrel Diameter (mm)
18
Housing Style
Rectangular w/M18 Mount
Min Op. Temp. (°C)
-20
Special Feature: Remote Teach
No
Feature: Encapsulated
No
