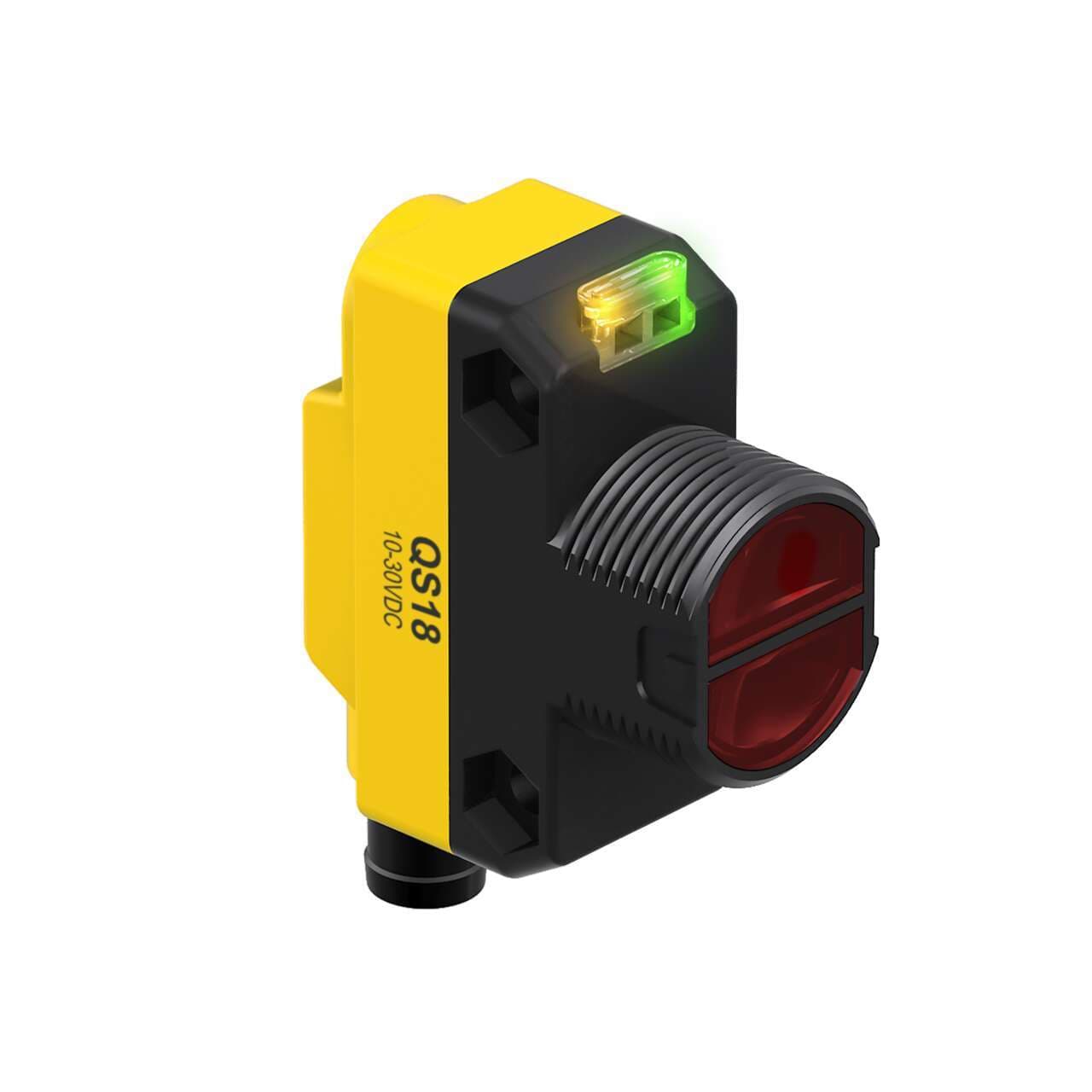

QS18VP6DLQ7 Banner Proximity Sensors

QS18VP6DLQ7 on Powermatic Associates
Banner
  • QS18VP6DLQ7
  • QS18VP6DLQ7

Part#:QS18VP6DLQ7

Alt. Part#:800771

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

WORLD-BEAM QS18 Series: Diffuse; Range: 600 mm; Input: 10-30 V dc; Output: Complementary Solid-State PNP; M8 Integral QD

Product Details

  • Weight
    22.6796 g
  • Country Of Origin
    MX
  • Main function
    Sensor (Photo-electric)
  • Design
    diffuse mode
  • Operating mode
    Light-ON Dark-ON
  • Response time
    0.85ms / 0.00085 s
  • Primary brand
    Banner Engineering
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Thread size
    M18
  • Digital outputs
    1 x digital output (PNP transistor)
  • Ambient air temperature for operation
    -20...+70 °C
  • Product series / family name
    WORLD-BEAM series
  • Shape
    Rectangular
  • Connection type
    Pre-equipped with 4-pin Pico-style M8 connector
  • Sub-range name
    QS18 series
  • Light Color
    Infrared (IR)
  • Mounting mode
    Threaded mount
  • Degree of protection
    IP67 NEMA 6
  • Functions
    Photo-electric sensor green LED (power ON) yellow LED (light sensed) potentiometer adjustment
  • Sensing distance
    600mm
  • Material
    thermoplastic housing Acrylic lns.
  • Order code / Manufacturer SKU
    800771
  • Compliant with standard(s)
    cURus CE
  • Input/Output
    Discrete
  • Quick Disconnect Type
    M8 (Pico)
  • Number of Pins
    4
  • Feature: Encapsulated
    No
  • Sensing Mode (General)
    Proximity
  • Special Feature: Remote Teach
    No
  • Lens Material
    Acrylic
  • Feature: Chemical Resistant
    No
  • Sensing Beam
    Infrared LED
  • Min Op. Temp. (°C)
    -20
  • NEMA Rating
    NEMA 6
  • Feature: Timing (Hold/Delay)
    No
  • IO Link
    No
  • Primary Housing Material
    ABS
  • Operation
    Light/Dark Operate
  • Max Op. Relative Humidity [%]
    95% @ 50°C
  • Feature: Quick Disconnect
    Yes
  • Max Sensing Distance (mm)
    600
  • Special Feature: Intrinsically Safe
    No
  • Repeatability (µs)
    90
  • Feature: Audible
    No
  • Housing Style
    Rectangular w/M18 Mount
  • Connection
    Integral QD
  • Sensing Beam Wavelength
    940
  • Indicator
    LEDs
  • Outputs
    PNP
  • Output response time (ms)
    0.85
  • IP Rating
    IP67
  • Feature: Hazardous Area
    No
  • Power
    DC
  • Special Feature: Water Detection
    No
  • Power Supply/Supply Voltage
    10-30 V dc
  • Barrel Diameter (mm)
    18
  • DeviceNet
    No
  • Sensing Mode (Detailed)
    Diffuse
  • Max Op. Temp. (°C)
    70
  • Delay at Power-up (ms)
    100
  • Adjustments
    Potentiometer

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VP6DLQ7 on Powermatic Associates is $90.00. Order now.

About the product

Banner Engineering QS18VP6DLQ7 is a photo-electric sensor designed for versatile applications, featuring an M18 threaded mount for secure installation. It operates within an ambient air temperature range of -20 to +70°C and is equipped with a diffuse mode potentiometer for precise adjustment. This sensor is pre-equipped with a 4-pin Pico-style M8 connector, ensuring easy and reliable connection. Part of the QS18 series, it offers a high degree of protection rated at IP67 NEMA 6, suitable for demanding environments. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It has a rectangular shape with a thermoplastic housing and an acrylic lens, designed for durability. The sensing distance is up to 600mm, utilizing infrared (IR) light for detection. It supports both Light-ON and Dark-ON operating modes and includes 1 x digital output (PNP transistor; complementary NO/NC) for versatile signaling. The response time is notably quick at 0.85ms / 0.00085 s, facilitating rapid detection for automation tasks.

QS18VP6DLQ7 Related Documents

197052.pdf
