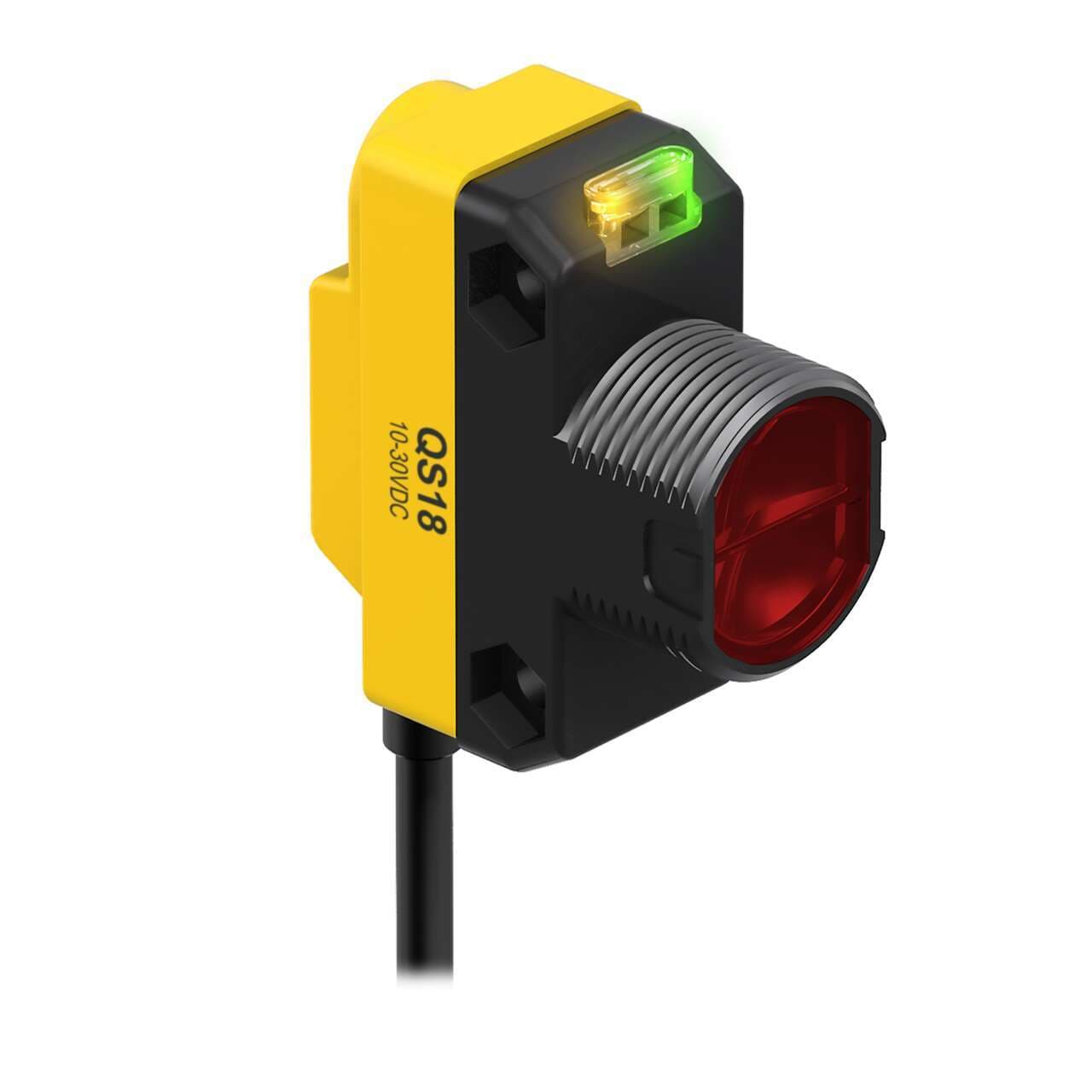

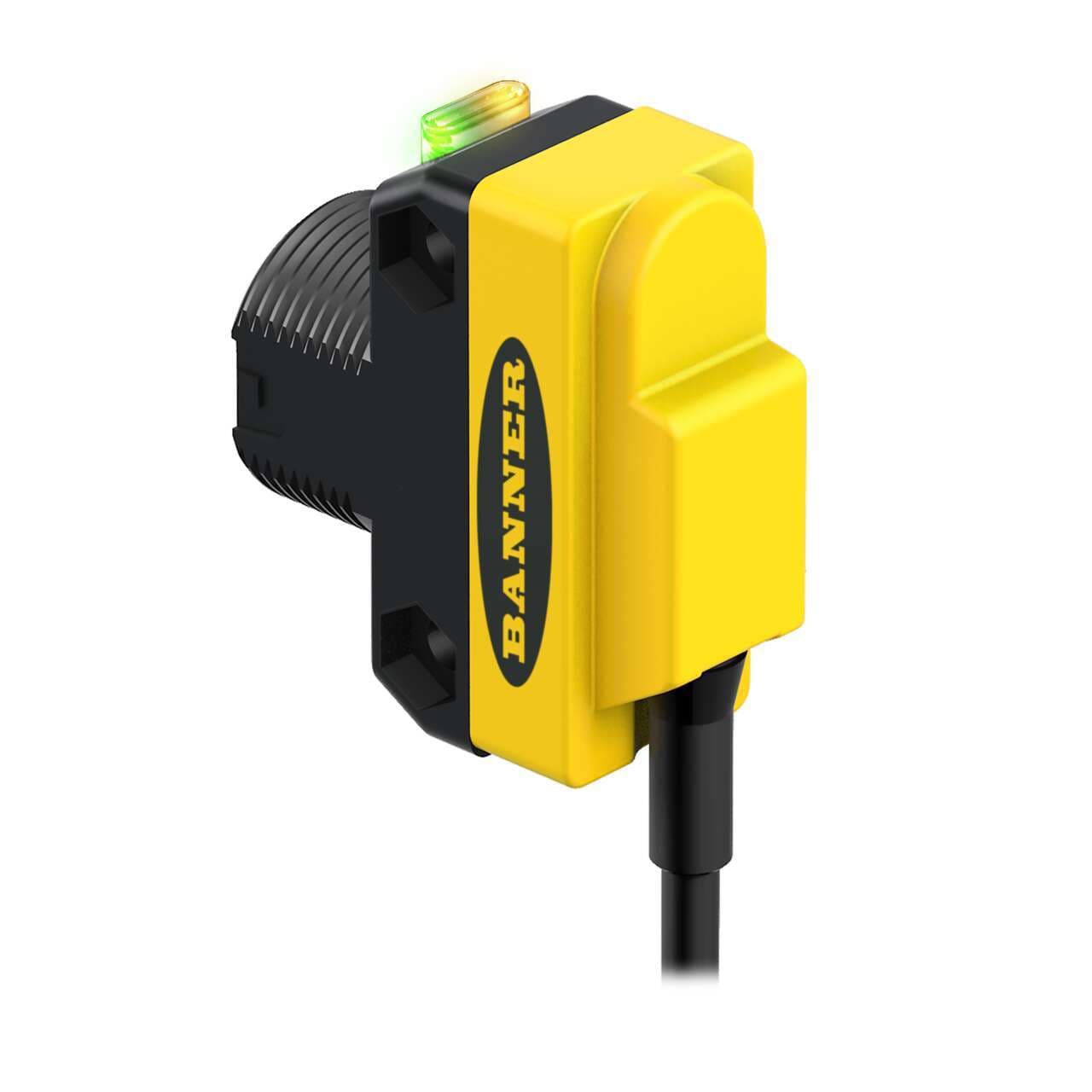

QS18VP6FF50Q Banner Proximity Sensors
Part#:QS18VP6FF50Q
Alt. Part#:71877
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS18 Series: Fixed-Field; Range: 50 mm; Input: 10-30 V dc; Output: Complementary Solid-State PNP; 150 mm (6 in) M8 Pigtail QD
Product Details
- Weight 45.3592 g
- Country Of Origin MX
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Shape Rectangular
- Mounting mode Threaded mount
- Main function Sensor (Photo-electric)
- Sub-range name QS18 series
- Sensing distance 50mm
- Material thermoplastic housing Acrylic lns.
- Response time 0.85ms / 0.00085 s
- Primary brand Banner Engineering
- Design background suppression system
- Digital outputs 1 x digital output (PNP transistor)
- Degree of protection IP67 NEMA 6
- Order code / Manufacturer SKU 71877
- Functions Fixed-field photo-electric sensor green LED (power ON) yellow LED (light sensed)
- Light Color Visible red
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 4-pin Pico-style M8 connector
- Ambient air temperature for operation -20...+70 °C
- Product series / family name WORLD-BEAM series
- Thread size M18
- Operating mode Light-ON Dark-ON
- Compliant with standard(s) cURus CE
- Sensing Beam Visible Red LED
- Special Feature: Intrinsically Safe No
- NEMA Rating NEMA 6
- Max Sensing Distance (mm) 50
- Min Op. Temp. (°C) -20
- Sensing Beam Wavelength 630
- Feature: Encapsulated No
- Special Feature: Remote Teach No
- Feature: Timing (Hold/Delay) No
- Housing Style Rectangular w/M18 Mount
- Power Supply/Supply Voltage 10-30 V dc
- Operation Light/Dark Operate
- Feature: Hazardous Area No
- Input/Output Discrete
- Special Feature: Water Detection No
- Max Op. Temp. (°C) 70
- Delay at Power-up (ms) 100
- Lens Material Acrylic
- Small Visible Spot LED
- Feature: Quick Disconnect Yes
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Outputs PNP
- Max Op. Relative Humidity [%] 95% @ 50°C
- IO Link No
- Indicator LEDs
- Sensing Mode (General) Proximity
- Connection Pigtail QD
- Number of Pins 4
- Barrel Diameter (mm) 18
- Feature: Chemical Resistant No
- Repeatability (µs) 160
- Adjustments N/A
- DeviceNet No
- Power DC
- Quick Disconnect Type M8 (Pico)
- Primary Housing Material ABS
- IP Rating IP67
- Output response time (ms) 0.85
- Feature: Audible No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VP6FF50Q on Powermatic Associates is $119.00. Order now.
About the product
Banner Engineering QS18VP6FF50Q is a fixed-field photo-electric sensor designed with a background suppression system. It features an M18 threaded mount for installation and operates within an ambient air temperature range of -20 to +70°C. This sensor is part of the QS18 series and comes pre-wired with a 6" / 150mm pigtail terminated with a 4-pin Pico-style M8 connector. It offers a degree of protection rated at IP67 NEMA 6 and requires a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.). The QS18VP6FF50Q has a rectangular shape with a thermoplastic housing and an acrylic lens. It is designed to detect objects within a 50mm sensing distance using visible red light and can operate in both Light-ON and Dark-ON modes. This sensor includes 1 x digital output (PNP transistor; complementary NO/NC) and boasts a response time of 0.85ms / 0.00085 s.
