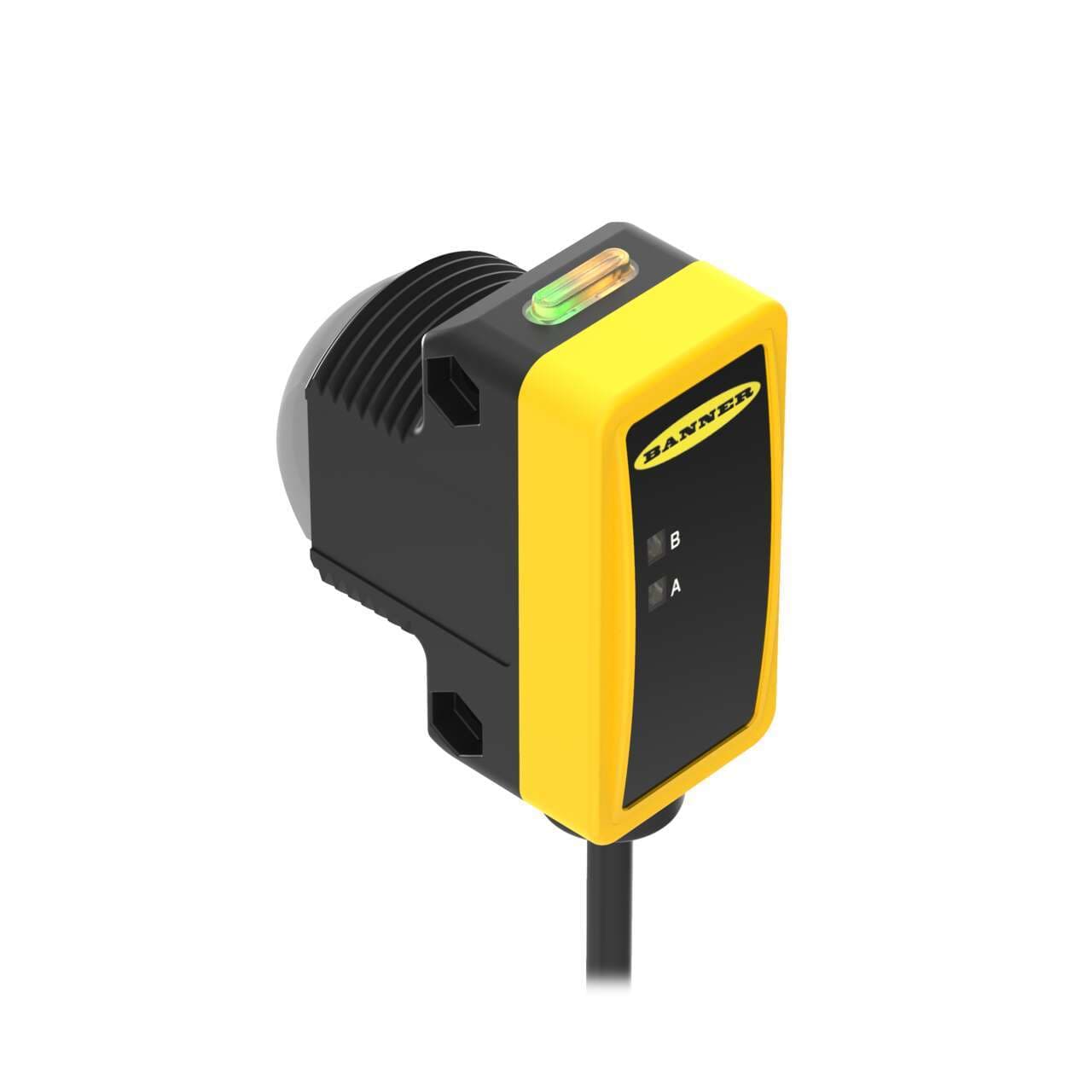

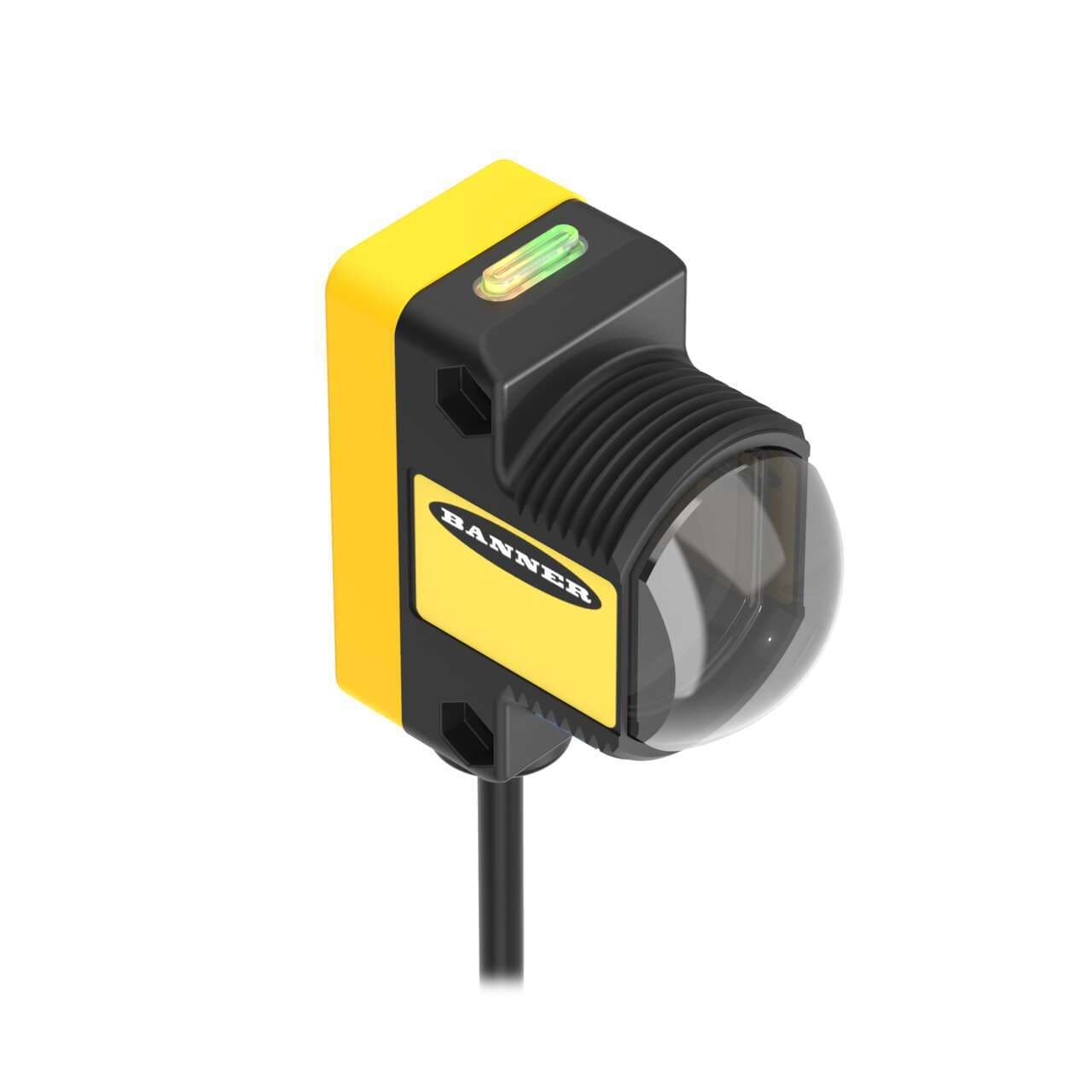

QS30EX Banner Proximity Sensors

Product Details

• Weight
  117.93392 g
• Country Of Origin
  US
• Product series / family name
  WORLD-BEAM series
• Light Color
  Infrared (IR)
• Sub-range name
  QS30 high-powered receivers series
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Wavelength
  875 nm
• Ambient air temperature for operation
  -20...+60 °C
• Main function
  Sensor (Photo-electric)
• Design
  through-beam system / opposed mode
• Thread size
  M30
• Degree of protection
  IP67 NEMA 6P
• Compliant with standard(s)
  cULus CE
• Primary brand
  Banner Engineering
• Functions
  Photo-electric emitter green LED (power ON) yellow LED (output state)
• Response time
  30ms / 0.03 s
• Shape
  Rectangular
• Mounting mode
  Threaded mount
• Order code / Manufacturer SKU
  71559
• Connection type
  Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
Material
thermoplastic housing Zeonex lns.
Cable Length (m)
2
Connection
Cable
Repeatability (µs)
5000
Indicator
LEDs
Quick Disconnect Type
No QD
Delay at Power-up (ms)
100
Barrel Diameter (mm)
30
IO Link
No
Sensing Beam
Infrared LED
Number of Pins
4
Feature: Timing (Hold/Delay)
No
Sensing Mode (General)
Opposed
Operation
N/A
Power
DC
Min Op. Temp. (°C)
-20
Opposed Mode Emitter/Receiver
Emitter
Primary Housing Material
Thermoplastic
Special Feature: Intrinsically Safe
No
Max Op. Relative Humidity [%]
95% @ 50°C
Feature: Encapsulated
Yes
Housing Style
Rectangular w/M30 Mount
Output response time (ms)
30
NEMA Rating
NEMA 6P
Feature: Hazardous Area
No
Max Sensing Distance (mm)
213000
Special Feature: Remote Teach
No
Lens Material
Zeonex
Feature: Audible
No
Sensing Mode (Detailed)
Emitter
Max Op. Temp. (°C)
60
IP Rating
IP67
Power Supply/Supply Voltage
10-30 V dc
Sensing Beam Wavelength
875
DeviceNet
No
Outputs
N/A
Special Feature: Water Detection
No
Adjustments
N/A
Feature: Chemical Resistant
No
