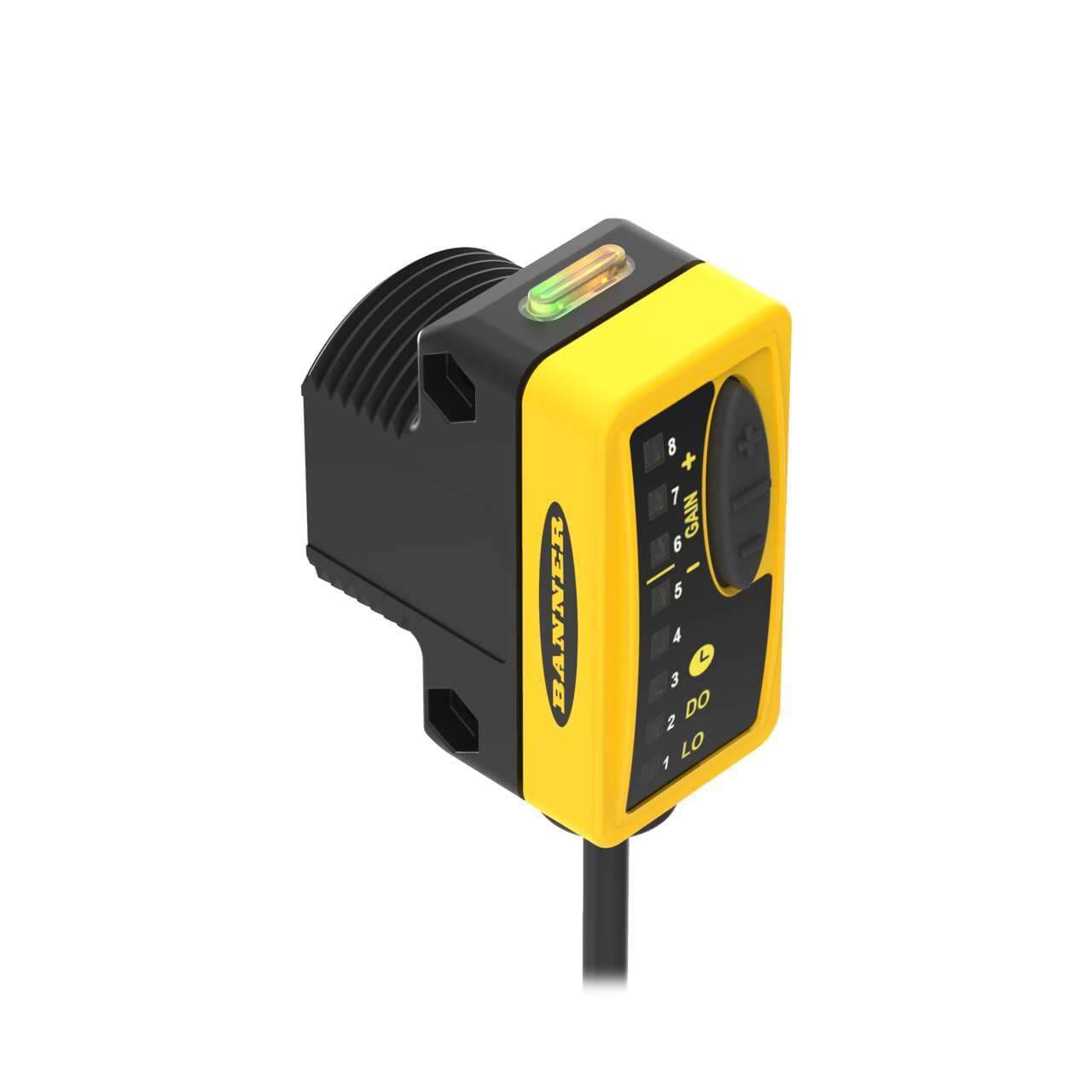

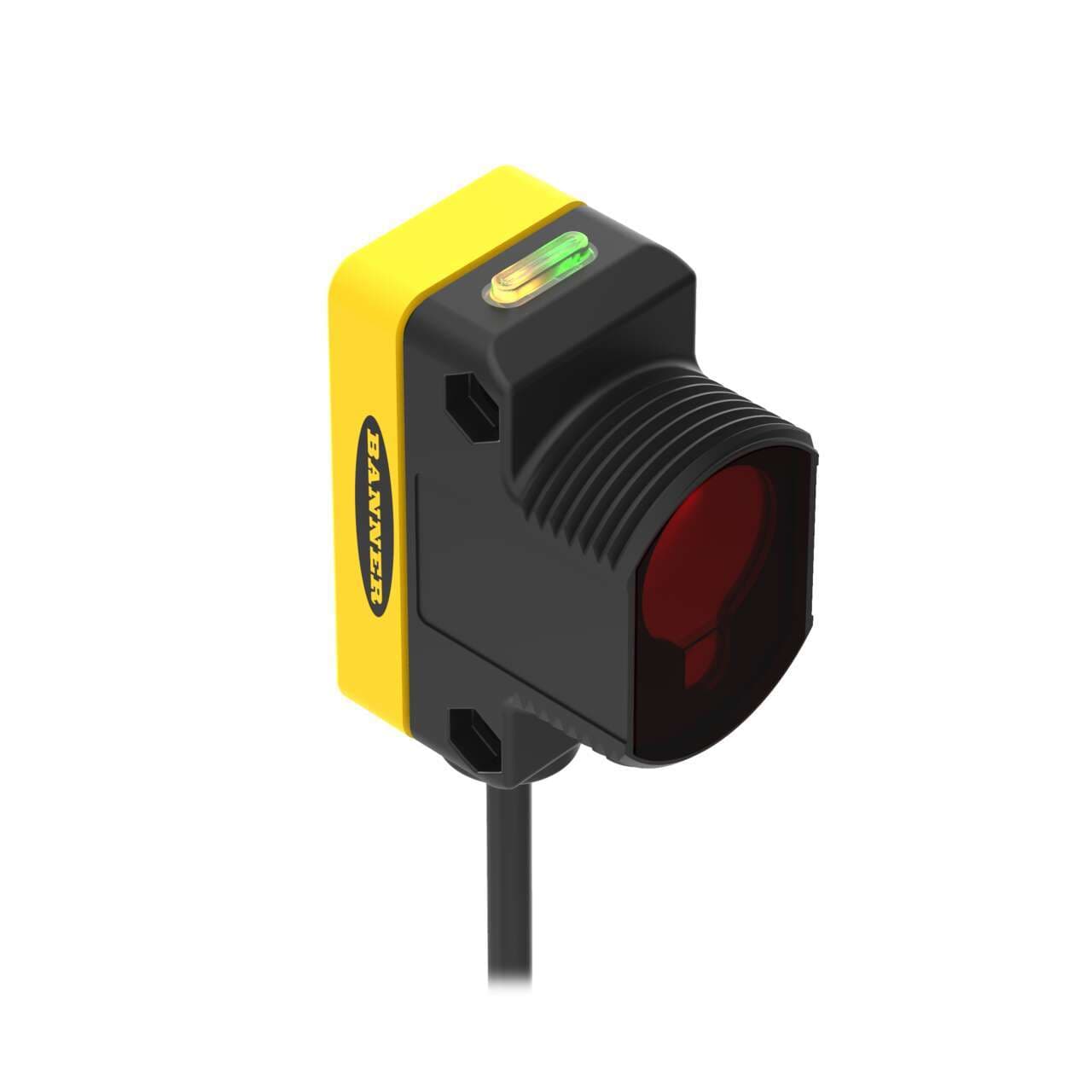

QS30LLP Banner Proximity Sensors
Part#:QS30LLP
Alt. Part#:2993
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS30: Long Range Laser Polarized Retro; Range: 0.2-18 m; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 2 m (6.5 ft) Cable
Product Details
- Weight 132.448864 g
- Country Of Origin US
- Housing Style Rectangular w/M30 Mount
- Quick Disconnect Type No QD
- IP Rating IP67
- Feature: Encapsulated No
- Primary Housing Material Thermoplastic
- Max Op. Temp. (°C) 50
- Number of Pins 5
- Feature: Hazardous Area No
- Sensing Beam Visible Red Laser
- Outputs Bipolar (NPN & PNP)
- Sensing Beam Wavelength 650
- Small Visible Spot Laser
- Operation Light/Dark Operate
- Repeatability (µs) 70
- Feature: Timing (Hold/Delay) No
- Cable Length (m) 2
- Input/Output Discrete
- Output response time (ms) 0.5
- Lens Material Acrylic
- Feature: Audible No
- Sensing Mode (General) Retroreflective
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach Yes
- Power DC
- Max Sensing Distance (mm) 18000
- Special Feature: Intrinsically Safe No
- NEMA Rating NEMA 6
- Laser Classification Class 1
- Min Op. Temp. (°C) -10
- Delay at Power-up (ms) 1000
- Opposed Mode Emitter/Receiver N/A
- Sensing Mode (Detailed) Polarized
- Connection Cable
- Special Feature: Water Detection No
- Barrel Diameter (mm) 30
- Indicator Bargraph
- Adjustments Teach Button
- IO Link No
- Max Op. Relative Humidity [%] 95% @ 50°C
- DeviceNet No
- Feature: Chemical Resistant No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS30LLP on Powermatic Associates is $245.00. Order now.
About the product
Banner Engineering QS30LLP is a polarized Class 1 laser photo-electric sensor designed for retro-reflective operation with TEACH mode. It features an M30 threaded mount for secure installation and is equipped with a pre-wired 6.5ft / 2m cable that terminates with bare end flying leads for easy connection. This sensor operates within an ambient air temperature range of -10 to +50°C and is housed in a thermoplastic casing with an acrylic lens, ensuring durability. The QS30LLP series sensor offers a sensing distance of 20cm to 18m and emits a visible red light with a wavelength of 650 nm. It supports both Light-ON and Dark-ON operating modes and includes a single digital output (PNP/NPN transistor) with a rapid response time of 0.5ms. This unit is powered by a supply voltage of 10Vdc to 30Vdc (with 12Vdc / 24Vdc nominal) and is protected against ingress with an IP67 NEMA 6 rating, making it suitable for a wide range of industrial applications.
