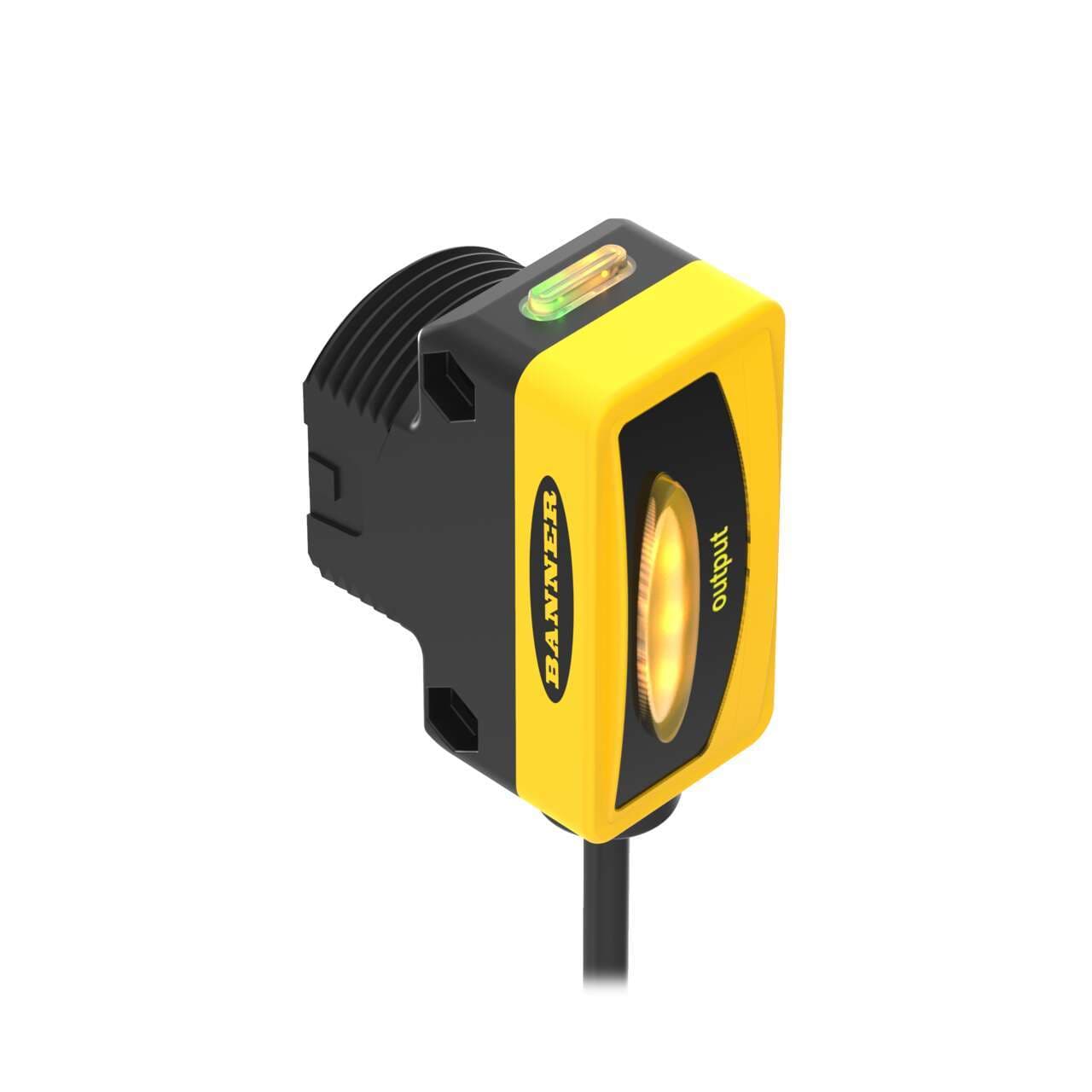

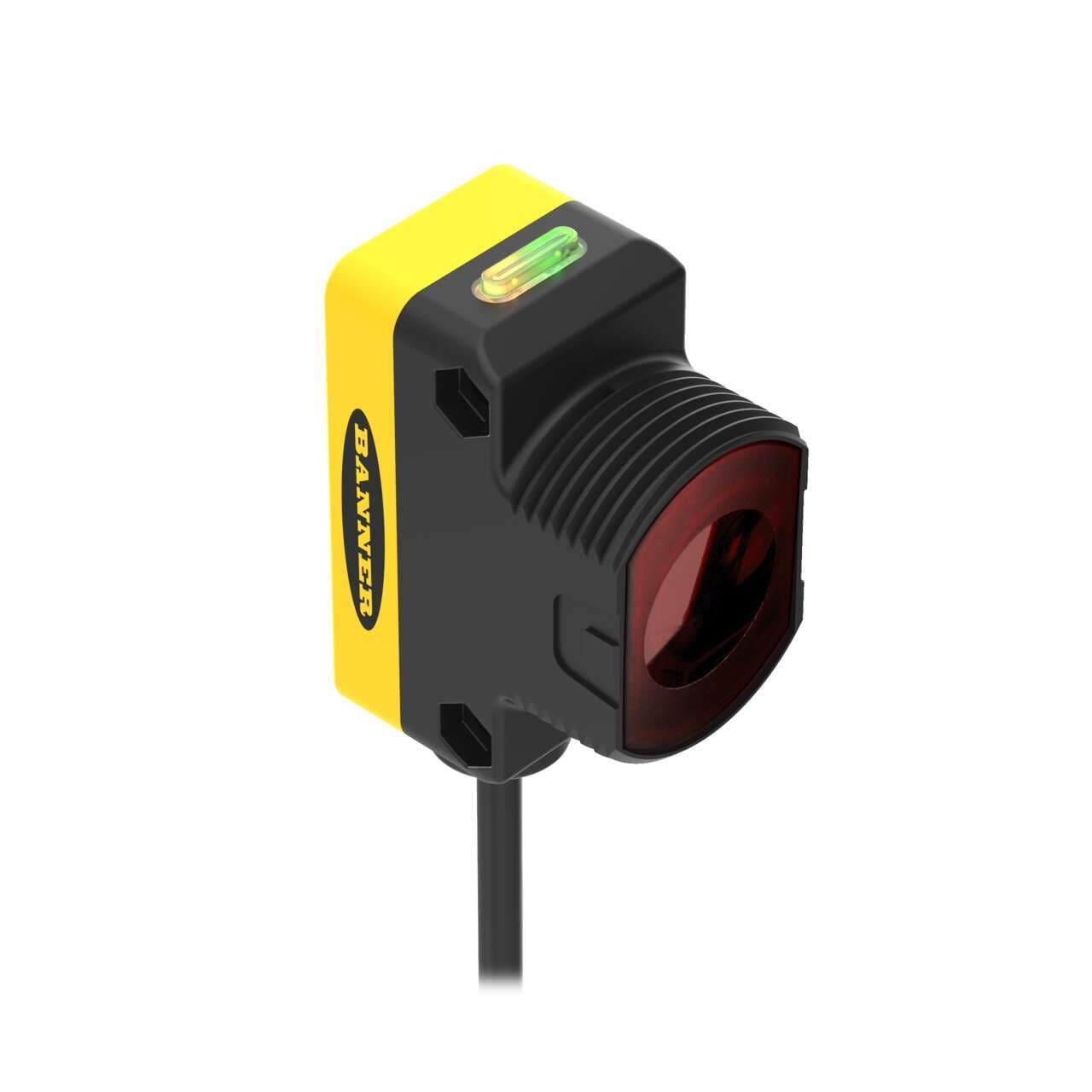

QS30R Banner Proximity Sensors
Part#:QS30R
Alt. Part#:73078
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS30 Series: Receiver; Range: 60 m; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 2 m (6.5 ft) Cable
Product Details
- Weight 99.79024 g
- Country Of Origin CN
- Primary brand Banner Engineering
- Functions Photo-electric sensor receiver green LED (power ON) yellow LED (output state)
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Order code / Manufacturer SKU 73078
- Product series / family name WORLD-BEAM series
- Light Color Infrared (IR)
- Mounting mode Threaded mount
- Material thermoplastic housing Acrylic lns.
- Sub-range name QS30 DC voltage series
- Sensing distance 60m
- Operating mode Light-ON Dark-ON
- Degree of protection IP67 NEMA 6
- Main function Sensor (Photo-electric)
- Design through-beam system / opposed mode
- Thread size M30
- Compliant with standard(s) cURus CE
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Shape Rectangular
- Response time 5ms / 0.005 s
- Ambient air temperature for operation -20...+70 °C
- Outputs Bipolar (NPN & PNP)
- Min Op. Temp. (°C) -20
- Operation Light/Dark Operate
- Quick Disconnect Type No QD
- Special Feature: Intrinsically Safe No
- Connection Cable
- Output response time (ms) 5
- Max Op. Temp. (°C) 70
- Special Feature: Remote Teach No
- Repeatability (µs) N/A
- Delay at Power-up (ms) 100
- IP Rating IP67
- Number of Pins 5
- Opposed Mode Emitter/Receiver Receiver
- Feature: Timing (Hold/Delay) No
- Indicator LEDs
- Feature: Audible No
- Feature: Hazardous Area No
- Feature: Encapsulated No
- Feature: Chemical Resistant No
- DeviceNet No
- IO Link No
- NEMA Rating NEMA 6
- Max Op. Relative Humidity [%] 95% @ 50°C
- Special Feature: Water Detection No
- Adjustments N/A
- Lens Material Acrylic
- Power Supply/Supply Voltage 10-30 V dc
- Barrel Diameter (mm) 30
- Cable Length (m) 2
- Max Sensing Distance (mm) 60000
- Input/Output Discrete
- Primary Housing Material Thermoplastic
- Sensing Mode (General) Opposed
- Sensing Beam Infrared LED
- Sensing Mode (Detailed) Receiver
- Power DC
- Housing Style Rectangular w/M30 Mount
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS30R on Powermatic Associates is $98.00. Order now.
About the product
Banner Engineering QS30R is a photo-electric sensor designed for through-beam system applications, featuring a receiver alone configuration. It comes with an M30 threaded mount for secure installation and operates within an ambient air temperature range of -20 to +70°C. This sensor is part of the QS30 DC voltage series and offers a pre-wired connection with a 6.5ft / 2m cable terminated with bare end flying leads for easy integration. It boasts a high degree of protection, rated at IP67 NEMA 6, and requires a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc being nominal. The QS30R has a rectangular shape with a thermoplastic housing and an acrylic lens, ensuring durability. It is capable of sensing distances up to 60m with infrared (IR) light and supports both Light-ON and Dark-ON operating modes. Additionally, it features 1 x digital output (PNP/NPN transistor) and offers a quick response time of 5ms / 0.005 s.
